Addressable 5050 RGB Full Color 26mm WS2811 LED Pixel Module With
Transparent Cover
Detail :
Type: 26mm diameter WS2811 LED Pixel Module
Model Number: PS-26mm-WS2811-T-12V
Chip Material: AlGaInP
Emitting Color: Tri-Color(Red-Blue-Green)
Luminous Intensity: R(4200)G(9600)B(4000) MCD
Luminous Flux(lm): Red (6.6) Green(20) Blue (5.4)
Optical Attenuation(%): 5
Power: 0.72w
Power Dissipation: 0.72W
Viewing Angle(°): 120
Color Rendering Index(Ra): 80
Color Temperature: RGB
Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -20 - 60
Place of Origin: Guangdong, China (Mainland)
Certification: CE, RoHS
Features and Benefits :
1. Using high quality SMD5050 LED as lighting source.
2. With good protection level. can achieve IP68.
3. each module as one pixel, takes 3 DMX channels, RGB full color,
can be controlled individually,
4. It is easy installation, screw fixed.
5. Good looking, made with the injection machine.
6.Using the transparent cable, with good cold resistance ability
Parameter :
| Part No | PS-26mm-WS2811-T-12V |
| Color | full RGB color (WS2811) ,24bit,256 gray scale |
| LED Qty | 3pcs 5050 SMD RGB LED |
| Input Volt | DC12V |
| Max current | 120MA |
| Max Power | 0.72w |
| Driver method | Constant current circuit |
| Dimension | 26mm diameter(open hole) |
| Viewing angle | 100-120degree |
| Protection Level | IP68 |
| Certification | CE and RoHS |
| Standard connection | each pixel with a 3pin JST male input and female output |
| Standard wire length | 100mm |
| Housing | frosted cover |
| Fixed way | 26mm diameter open hole |
| Lifespan | 35000 hours |
| Warranty | 3years |
| Operation temperature | -40-50 |
| Store temperature | -50-60 |
Application:
Back lights, Lights, cabinet lights, edge light, architectural
lights for corridor, canopy, archway, lights for path and contour
marking; etc.
They can be a good choice for advertising, Led screen, night clubs,
coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights
for household kitchens or living rooms, etc.
Packing :
| Selling Units: | Multiple of 50 |
| Package size per batch: | 1X1X1 cm |
| Gross weight per batch: | 0.8 KG |
| Package Type: | by carton |

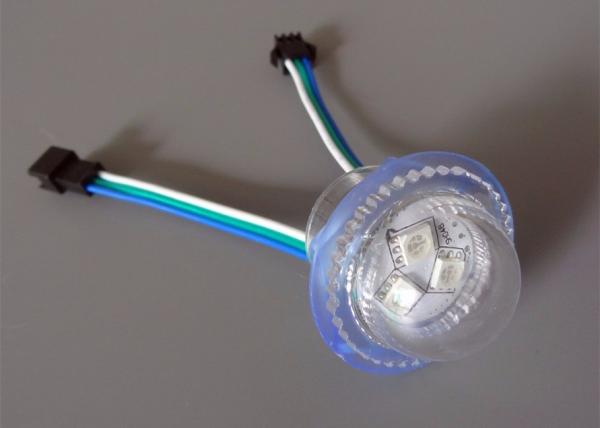

Picture :
