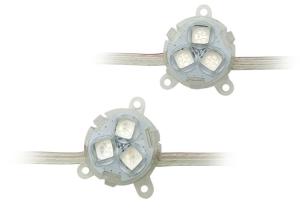

DC 12V IP65 Mini Full Color Pixel Led Lamp 30mm Holidays Light With
Lens
Detail :
Type: 30mm diameter UCS1903 LED Pixel Module
Model Number: PS- C30
Chip Material: AlGaInP
Emitting Color: RGB
Luminous Intensity: R(4200)G(9600)B(4000) MCD
Luminous Flux(lm): 80lm
Optical Attenuation(%): 5
Power: 0.72w
Power Dissipation: 0.72W
Viewing Angle(°): 120
Color Rendering Index(Ra): 80
Color Temperature: RGB
Operating Temperature(℃): -20 - 60
Storage Temperature(℃): -20 - 60
Place of Origin: Guangdong, China (Mainland)
Certification: CE, RoHS
Features and Benefits :
1-30mm diameter LED Pixel ball housing by a clear lens cover,fiber
PCB: white only
2-DC12V power supply requirement only
3-There are 20pcs pixels in a string, wire distance between each
module is 8cm 4Pin 20AWG Copper wire
4-There is a pair 4Pin JST SM Non-waterproof connector on input
side and output side of each string
5-Control:SD controller,DMX decoder,Artnet,Arduino etc
Parameter :
| Part No | PS-C30 |
| Color | full color RGB(UCS1903 IC )each module as one pixel; takes 3dmx
channels |
| LED Qty | 3pcs high bright 5050 SMD RGB led |
| Input Volt | DC12V |
| Max current | 60MA |
| Max Power | 0.72W |
| Driver method | Constant current circuit |
| Dimension | 30mm diameter |
| Viewing angle | 150-180degree |
| Protection Level | IP65 |
| Certification | CE and RoHS |
| Standard connection | 20pcs module per string |
| Standard wire length | 100MM |
| Housing | transparent cover |
| Fixed way | screw |
| Lifespan | 35000 hours |
| Warranty | 2years |
| Operation temperature | -40-50 |
| Store temperature | -50-60 |
Application:
Back lights, Lights, cabinet lights, edge light, architectural
lights for corridor, canopy, archway, lights for path and contour
marking; etc.
They can be a good choice for advertising, Led screen, night clubs,
coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights
for household kitchens or living rooms, etc.
Packing :
| Selling Units: | Multiple of 20 |
| Package size per batch: | 1X1X1 cm |
| Gross weight per batch: | 0.3 KG |
| Package Type: | by carton |
The dimension,
The PC cover for options,

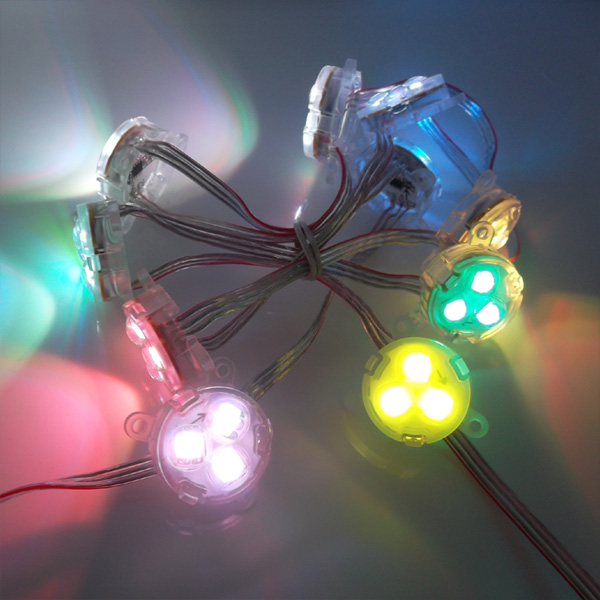

Picture :
