50~100mm width WPC door/window frame extruder machine WPC profile
extrusion line Capacity 150 kg/h
Application
The WPC DOOR/WINDOW frame extruder machine is mainly used in the
production of wood-plastic foamed board.
The wood-plasticprofile has the advantages of both wood and
plastic. It not only has the excellent appearance of the natural
wood, but also overcomes the disadvantages of the natural wood.
This unit is composed of conical double-screw extruder, mould,
vacuum calibration table, haul-off machine, cutter, and material
reversal stacker, etc. The extruder adopts AC frequency conversion
drive system, and is simple to maintain. PVC and wood powder is
mainly applied to produce WPC profiles such as building partition,
cabinet door panels, windowsill, wall decorative panel, skirting,
door frame, window shutters, photo frame, furniture edge banding,
stair handrail, floor board, decoration cladding panel, plastic
door and window profiles, aluminum-plastic composite profiles,
decoration profiles, etc.
Extruder
We equip the SJMS65/132 conical double screw extruder for WPC solid
door frame making.
the extrusion capacity can be 150-240 kg per hour.
the main motor power is 37kw with ABB inverter.
the extruder equipped with Vacuum exhuasting system for moisture.
Mould
You can change mold to make different products with different size
and shape.
and the calibrators shall be cooled by water cooling and vacuum
cooling.
Calibrating machine
The product should be cooled and calibrated in the calibrating
machine.
the length is 4-6 meters.

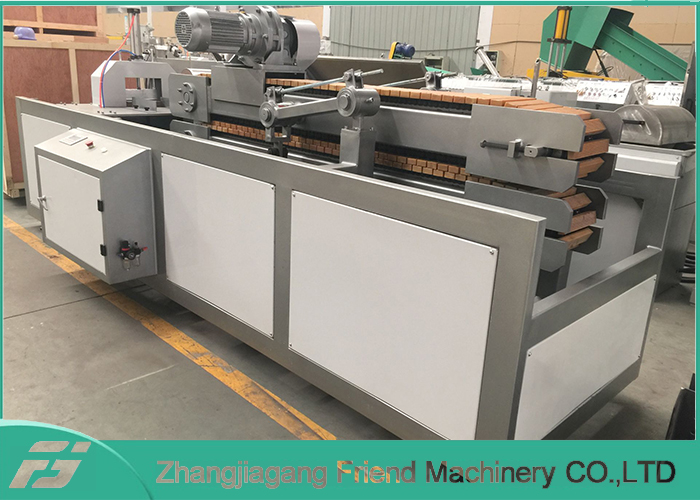

Haul off and cutting machine
the Haul off machine is used for claimping the product to moving
forward.
the cutting machine can cut the product into required length
automatically.
Final product
The final product is made with high quality for high strength and
water proof. the final product can be easy to be installed as door
frame system
Laminating machine
The door frame can be laminated with beautiful decoration color,
like wooden color
Our service
1. We not only provide machines but also offer technical guide and
market evaluate.
2. We will provide all the machines for the complete production
according to customer's requirements.
3. We will provide complete service for factory layout and other
information to help customer to build the factory.
4. We will provide good service for machine installation and
training, until the customers can run the machines and make stably
production.
5. Except one year quality guarantee, we will provide after-sell
service for all the life.
6. For long-term cooperation, we always provide good quality, good
price and good service to customer.
Technical parameters
| Model | YF600 | YF800 | YF1000 | YF1250 |
| Max.width of product(mm) | 600 | 800 | 1000 | 1200 |
| Extruder mode | SJZ80/156 | SJZ80/156 | SJZ92/188 | SJZ92/188 |
| Extrusion capacity(kg/h) | 280 | 280 | 600 | 600 |
| Motor power(kw) | 55 | 55 | 132 | 132 |
| Cooling water(cubic meter per hour) | 10 | 12 | 15 | 18 |
Compressed Air (cubic meter per minite) | 0.6 | 0.8 | 1.0 | 1.2 |
Machine image
