    SJSZ Type Series WPC Profile Extrusion Line Convenient Operation / Maintenance

    Ask Lasest Price
    Brand Name : Friend
    Model Number : SJSZ
    Certification : CE,SGS
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 30 worker days
    • Product Details
    • Company Profile

    SJSZ Type Series WPC Profile Extrusion Line Convenient Operation / Maintenance

    SJSZ-55/110 WPC skirting board extruder WPC profile extrusion line WPC skirting board production line


    Application

    SJSZ type series conical twin-screw extruder is specially suitable for the extrusion of all kinds of PVC/WPC powder. Equipped with different molds to produce all kinds of PVC/WPC profiles/board.

    Screw is cooled by oil cooling system and the barrel by special air cooling system. good plastification and mixing effect,high capacity, wide range application, high reliability; special design gearbox and distribution box,strengthening the thrust bearing, big transmission torque,long service life. Electric control adopts PLC/PC automatic control, the conventional part is controlled with temperature controller, main part adopts imported components, and has a number of faults alarm function, with simple operation and convenient maintenance.


    Features

    ModelSJZ-51SJZ-55SJZ-65SJZ-80SJZ-92

    Master Power

    (kw)

    18.5303755110

    Production Midth

    (mm)

    1201803506001200

    Vacuum Pump Power

    (kw)

    45.57.55.5 X 2

    11 x 2

    7.5 x 1

    Tration Speed

    (m/min)

    0~4


    0~4


    0~5


    0~3


    0~2.5


    Extrusion Capacity

    (kgh)

    110150220350580

    Process

    Raw material+wood power+Additive→Mixing → Granulating → Conical twin-screw extruder → Profile extrusion mould → Cool molding die → Vacuum calibration support → Belt haul-off → Cutter → Rack → Finished product inspecting& packing


    Advantage

    1) Used to produce plastic-wood compound materials, special shape materials, plate materials, and floor or wall panels
    2) Arrangement: Extruding machine, vacuum shape fitting table, hauling off and cutting machine unit, stacking frame
    3) Uses RKC from Japan to control the whole line
    4) Easy to operate, works steadily
    5) Uses kinds of moulds to produce large range of materials
    6) Widely used

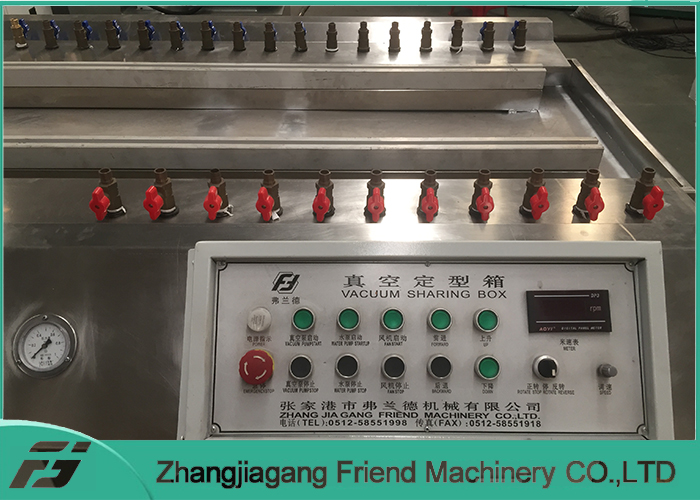

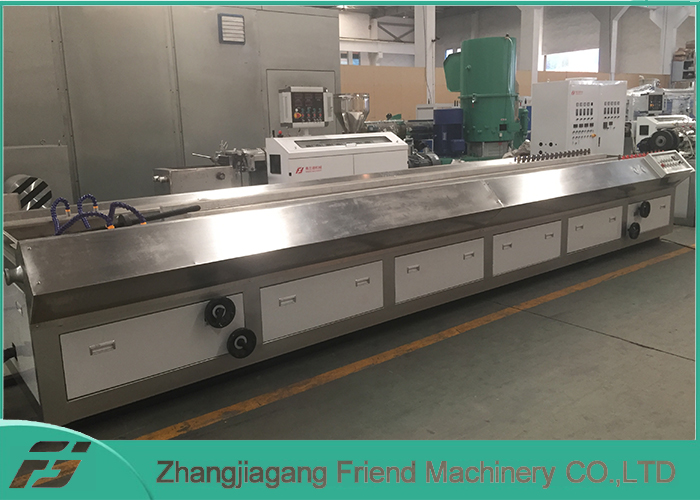

    Machine pictures
