    Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

    Ask Lasest Price
    Brand Name : SMTCL
    Model Number : IVT45
    Certification : CE ISO certification
    Payment Terms : T/T,L/C,,Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

    Product Description:

    Inverted Vertical Lathe IVT45 Spindle Gripping Automatic Loading And Unloading Vertical CNC Lathe

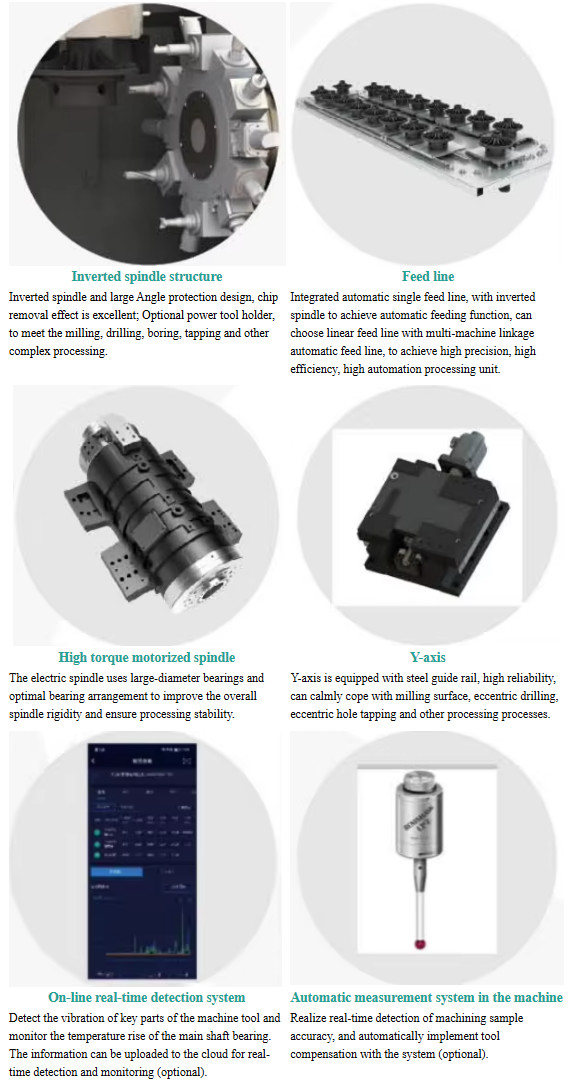

    IVT45 inverted vertical lathe adopts modular and systematic structural design, especially suitable for medium and large batch processing. The inverted spindle structure and the large Angle design of the bed protection ensure the smooth discharge of iron filings. The small footprint of the whole machine ensures lower space costs and more possibilities for machine layout. Through centralized loading and unloading conveyor belts and diversified manipulators, future flexible production can be met, achieving lower automation costs and lower equipment time. In addition, the Y-axis and measuring stations outside the machining room are optional for machining complex geometric shapes, which improves the flexibility of the machine configuration.

    Product Features:

    1,High rigidity, high stability
    Through the finite element analysis of the key components and the whole machine structure, the component structure and the whole machine layout are optimized to achieve the best rigidity and improve the stability of the main machine.
    2,High precision
    X/Z axis is configured with absolute value grating ruler, spindle is configured with encoder to achieve closed-loop control. X/Z positioning accuracy can reach 8µm, repeated positioning accuracy can reach 4µm
    3,High automation
    The inverted spindle structure can replace the manipulator and realize automatic loading and unloading with the automatic line in the machine. The in-machine automatic line can also meet the future flexible production through centralized loading and unloading conveyor belts and diversified manipulators, achieving lower automation costs and lower equipment time.

    Product Details:

    Product Paramenters:
    Item
    Unit
    IVT45
    Processing range
    Max. swimming dia. of the spindle
    mm
    520
    Max. machining dia. of the workpiece
    mm
    450
    Max. machining length of the workpiece
    mm
    300
    Spindle
    Spindle nose and taper
    A2-11
    Max.spindle speed
    r/min
    3000
    Output torque (100%/40%)
    N.m
    585/795
    Spindle motor power (100%/40%)
    kw
    48/52
    Spindle drive mode
    electric spindle
    Feed
    X axis rapid traverse
    m/min
    30
    Z axis rapid traverse
    m/min
    30
    X axis travel
    mm
    1180
    Z axis travel
    mm
    600
    Three-axis servo motor Power (X/Z)
    kw
    7.96/5.03
    Three-axis servo motor torque (X/Z)
    kw
    38/24
    Turret
    Type
    Horizontal 12 positions servo turret
    Whether the cutter can select the tool nearby
    yes
    Center height
    mm
    125
    Others
    X/Z positioning accuracy
    mm
    0.008
    X/Z repeated positioning accuracy
    mm
    0.004
    Fixture
    18-inch solid chuck
    The height of the material line from the footing placement surface
    mm
    1300
    Machine weight
    kg
    16000
    Total electrical capacity
    KVA
    95
    Machine dimensions
    mm
    5550×2480×3570
    OUR Service:

    Ensure you receive a high quality machine
    1. Every parts need be inspected
    2. Over 100 production process control
    3. Over 200 inspection items
    4. Sample processing of each machine
    5. 72 hours trial run before delivery

    Why Choose Us:
    ◆ Top quality sense, customers' requests come first
    ◆ 30 years + R & D history, the company was founded in 1993
    ◆ High-tech manufacturer with research anddesign capacity
    ◆ Stable and mature supplying system
    ◆ Young active sales and engineers for instant services(24 hours online)
    ◆ Upgrading on mechanism according to ergonomics and easy maintenance
    ◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
    About Us:
    Welcome to visit us!
    Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
    SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
    Our Factory:

    FAQ:

    Q1. Are you a trade company or manufacturing company?

    We are a manufacturing company.
    Q2. What's your main products of your company?
    We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
    Q3. Can you provide customized machine or SPM (Special purpose machine)?
    Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
    Q4: What's your warranty terms?
    We will supply a replacement for parts that prove to be defective for a period of 12 months,
    starting on the machine's bill of lading date.
    Q5. What is the services?
    Pr-sales:Customized solutions, planning and design;One-to-one service
    After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
    Q6: Why choose your company?
    Products from the development, design, manufacture, assembly of the entire production process are
    carried out between plants with a complete production chain which is your most reliable guarantee.
    Q7: Can your company send the technical personnel to our company and direct our workers overseas?
    We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
    Q8: What's the Payment Terms?
    T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
