High Wear Resistance MTHR A55 Inner Threading Tool for Small Lathe
Machining
Drow_Carbide_Boring_Tools_EN.pdf
Drow_Carbide_Boring_Tools_MD_EN.pdf
Application Field:
The MTHR A55 is an internal boring and turning tool featuring 55°
angled tips, widely used for finishing inner hole threading in mini
turning lathes. Unlike the round shank MIR A55, the MTHR A55 has a
rear end tilt, making it suitable for locking into precise tool
holders. Additionally, its advanced nano coating on ultrafine
carbide ensures a high-quality, smooth machining surface and
excellent wear resistance. This tool is ideal for a wide range of
materials, particularly stainless steels and various alloys.

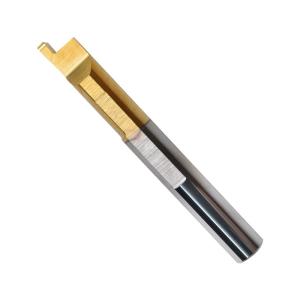

Product Details--- MTHR A55 Inner Threading Tool
- Tool Material: 100% virgin tungsten carbide.
- Usage: Designed for internal threading machining; also functions as an
inner hole dental cutter.
- Hardness: HRA 91–93.5
- Accuracy: ±0.005 mm
- Coating: To be defined based on your application. The smooth, fine surface
of the coated carbide provides an excellent surface finish.
- Main Differences from MIR A55:a. Rear end tilt, while the MIR A55 features a round shank.b.
Different coating options.c. Compatible with various tool holders.
- Tool Production: Our strong R&D capabilities and advanced equipment enable us
to consistently meet your diverse requirements.
Summary product information as below:
| Brand Name: | Drow |
| Model Number: | MTHR A55 Inner Threading Tool |
| Customized support: | OEM, ODM. |
| Standard: | ISO |
| Product type: | Solid carbide boring tiny tool |
| Material: | Tungsten Carbide,100% new Material |
| Coating: | To be defined per your different demands and application |
| Hardness: | HRA 91~93.5 |
| Flute length | 10.0~25.0mm |
| Flute color: | bronze,matte |
| Precision: | ±0.005mm |
| Shank diameter: | 4.0~7.0mm |
| Shank type | rear end tilt |
| Tip arc: | R0.05-R0.15 |
| Tip angle θ: | 55° |
| Penetration depth | 0.40~1.80mm |
| Mainly Difference to MIR A55: | a.Rear end tilt while MIR A55 is round shank.
b.Different coating.
c. Suitable for different tool holder. |
| Sample Order: | Acceptable |
| Usage: | Internal turning and threading |
| Workpiece Material: | Steel,Stainless steel,Cast iron and so on |
| Machining type: | Semi-Finishing/Finishing |
Product Features:
No Need for Recalibration: Eliminates time costs and enhances efficiency.
Integrated Design: The boring tool is integrally formed, and its unique chip flute
design reduces chip buildup, significantly improving processing
efficiency.
Precision Grinding: The entire process utilizes a five-axis machine tool for precision
grinding, ensuring high accuracy of the tool tip's r-angle and a
smooth cutting edge under 500x magnification.
Internal Cooling: The slotted design on the inclined section at the tail, along with
a central water outlet in the cutter sleeve, enables effective
internal cooling during processing.
Stable Positioning: Solid carbide boring bars are precisely positioned in the adaptor
using a locating pin, while set screw clamps ensure increased
stability for rigid clamping.
Easy Tool Changes: Tools of the same type can be changed using the positioning pin,
maintaining the same total extension length.
Product Specification:
| Model | Minimum diameter of machining hole(mm)ΦA | ΦD | r | L1 | L2 | F | S | θ | Pitch Range | JS25 | AL25 |
| MTHR0431L10A55-N-(C) | 3.1 | 4 | 0.05 | 35 | 10 | 2.9 | 1.0 | 55 | 48-24 | ● | ● |
| MTHR0441L12A55-N-(C) | 4.1 | 4 | 0.05 | 37 | 12 | 3.9 | 1.2 | 55 | 48-24 | ● | ● |
| MTHR0551L15A55-N-(C) | 5.1 | 5 | 0.08 | 40 | I5 | 4.9 | 1.6 | 55 | 48-16 | ● | ● |
| MTHR0661L20A55-N-(C) | 6.1 | 6 | 0.08 | 45 | 20 | 5.9 | 1.9 | 55 | 48-12 | ● | ● |
| MTHR0771L25A55-N-(C) | 7.1 | 7 | 0.15 | 54 | 25 | 7.9 | 2.5 | 55 | 26-11 | ● | ● |
| ●:In Stock (C): Support internal coolant customization JS25,AL25:
coating code |
