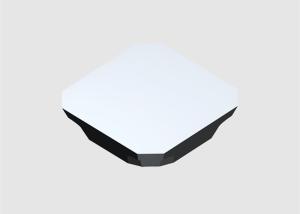

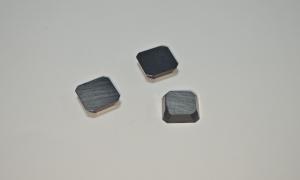

Face Milling Insert SEEN1203, SEEN1203AFTN, Cermet Indexble Milling
Insert for Milling Tool holders
Universal fixture and Die milling.
Excellent cost-performance Ratio.
Mainly for rough machining.
We can also customize the inserts for you.
SEEN1203AFTN-3
SEEN1203AFTN-4
SPKN1504EDTR
SDKN1504AFTN
Description of Metcera Grade
| Grade | Color | Coating Hardness (HV) | Antioxidant Tem.( °C) | Frictional Coefficent | Coating Thickness(µm ) | Recommendation |
| PV1120 | Golden | 3500 | 900 | 0.3 | 2-2.5 | Steel, Alloy
HRC<50 Tempered Steel |
| PV2110 |
| PV3115 |
| PV1220 | Grey-black | 3500 | 900 | 0.3 | 2-2.5 | Steel Machining |
| PV2210 |
| PV3212 |
| PV1320 | Bronze | 4200 | 1000 | 0.3 | 2.-2.5 | Stainless Steel, Steel
HRC<50 Tempered Steel |
| PV2310 |
| PV3315 |
|
| Grade | Density | Base Material Hardness | Bending Strength(MPa) |
| HV30 | HRA |
| MC1020 | 6.5 | 1650 | 93.0 | 1800 |
| MC2010 | 6.8 | 1550 | 92.4 | 2300 |
| MC3015 | 6.95 | 1520 | 92.0 | 2500 |
Ti(CN) based cermet is a new and prospective material which not
only possess the qualities of toughness,high thermal conductivity
and good heat stability of metals,but also possess the qualities of
high hardness,high red hardness and corrosion resistance of
ceramics.The unique physical and chemical properties of cermet make
is promising in the manufacturing of special cutting tools,wear
parts and corrosion-resistance parts.
Why Choose us:
1, 30 years focus on Cermet cutting tools only
2, Product performance equals the world-class brands
3, Our grade is equivalent to TN60, NX2525, CT3000, T1200A, CN2000,
NS530, etc
4, ODM service is provided
5, 3 months warranty for exchange and return
6, Free sample is provided
FAQ
Q:Are you trading company of manufacturer?
A:We are manufacturer.
Q:Do you provide samples?Is it free or extra?
A:Yes,we could offer the samples for free.
Q:What kind of payment terms you accept?
A:T/T,West Union,Paypal,Credit Card and other main terms.
Q:Do you provide customized product service?
A:Yes.
Q:What kind of machines are you using?
A:Osterwalder presser,Agathon Grinder,Nachi manipulator,etc.
Q:When is the leading time?
A:Normally 10 days after receiving your payment,but it can be
negotiated based on order qty and production schedule.
Q:How can you guarantee the production quality?
A:Our company is based on ISO9001,we have more than 30 years
experience of QC team and strictly quality control
system.However,90 days of free change is provided.
Q:What about the package?
A:10pcs plastic box in 50pcs case,then in 500/1000 pcs cartons.Or
custom packing as your requirements
