850nm 1mW 5mW IR Smallest Laser Diode Modules with Pin Out Military Laser Head Pointer
Product Description
AIMLASER specializes in the production of Mini Laser Diode Modules and offers tailored solutions. Available wavelengths include 405nm, 450nm, 520nm, 635nm, 650nm, 780nm, and 850nm, with output power under 5mW. The smallest module dimensions is 3.3x8mm. These modules are equipped with optical glass lenses and support input voltages between 2V and 5V DC.
Designed for compactness and efficiency, these small laser heads feature low power consumption, a stable beam, and a robust structure. These laser heads meet ROHS, FDA, IEC, and SGS standards, ensuring superior quality and a lifespan of over 8,000 hours. A 1-year warranty and OEM customization options are also available.

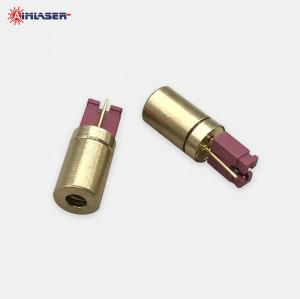

The 850nm 1mW infrared laser diode module, featuring a collimated beam, is a versatile subassembly used in gun laser sights, laser grips, night vision, laser rangefinders, aiming devices, barcode scanners, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning applications.
Specifications
| ITEMS | PARAMETERS |
| Model Number | Mini Infrared Dot Laser Diode Module |
| Wavelength | 850nm |
| Output Power | ≤1.0mW |
| Laser Drive Mode | CW |
| Beam Size | 10x22mm@25m |
| Divergence | 0.8mrad |
| Optics | Optical Glass Lens |
| Operating Current | <20mA |
| Operating Voltage | 3V DC |
| CDRH Class | Class IIIa |
| Circuit control | Auto Power Control (APC) |
| Circuit Protection | Static, Surge, and Reverse Polarity Protected |
| Working Temperature | -10℃ to 50℃ |
| Storage Temperature | -20℃ to 60℃ |
| Dimensions | Φ6x12mm (APC Inside) |
| Housing Material | Full Brass |
| Life Span | 8,000Hrs |
Features
1. Small size, Low cost, Lightweight, Low consumption.
2. Good quality beam, high precision and stability.
3. Long Lifetime and Complex Condition Design.
4. Conform to ROHS, FDA, IEC, SGS standards.
5. Provide One year warranty and customized solutions.
Applications
| ● Gun laser aiming devices | ● Laser positioning devices |
| ● Gun laser sights and laser grips | ● Laser surveying instrument |
| ● Night vision and laser rangefinder | ● Laser detection equipment |
| ● Laser alignment instrument | ● Medical laser instrument |
| ● Laser pointing instrument | ● Miniature laser tools |
| ● Laser measure instrument | ● Military Laser Equipment |
Package
The modules are packaged in anti-static bags and cartons to ensure excellent protection during storage and transportation.
Trade Terms
1) Payment: T/T, PayPal, Western Union, etc.
2) Shipment:FedEx, DHL, UPS etc.
3) Delivery Time: 5 - 20 days.
4) Shipment Terms: FOB Xi'an China
Our Services
A. Over 20 years of laser experience.
B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.
C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.
D. Strictly following ISO9001:2008 quality system.
E. Product conforms to FDA, IEC and GB standards.
F. Strong design and production capabilities, partners of famous brands.
