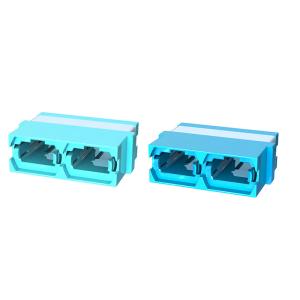

Flangeless MPO Fiber Optic Adapter for Easy Mating Durability and
Low Loss
Please note that this document is for reference purposes only and
may not fully correspond to the actual product. To ensure accuracy
and prevent any information leakage .please contact us directly for
the correct documentation.
Features
- 100% tested on optical performance (Insertion Loss & Return Loss)
- End-face geometry requirement complies to Telcordia GR-326-CORE
- For end-to-end fiber connectivity
- Good interchangeability
Applications
- CATV
- Active device termination
- Telecommunication networks
- Local Area Networks (LANs)
- Wide Area Networks (WANs)
-Test equipment
Environmental & Mechanical Data
| Operating Temperature | -40 to +75º C |
| Storage Temperature: | -40 to +85º C |
| Temperature Cycling (61300-2-18) | -40 to +75º C, 40 cycles=0.2dB change |
| High temperature (61300-2-18) | 70˚c for 96Hrs, <0.4dB change |
| Damp Heat (61300-2-19) | 40º C at 93%RH for 96 Hrs, <0.4dB change |
| Vibration-Mated Pair (61300-2-1) | 10-55Hz, 1.5mm P to P <0.2dB change |
| Mating Durability (61300-2-2) | 500 Mating Cycles, clean every 25, <0.2dB change |
| Adapter Material | Plastic |
| Adapter Color | Black,Blue,Green,Aqua, |
FAQ
1. What are we selling ?
Fiber optic connectors and adapters. like LC .MPO.SC.E2OOO…..also
you can set up new mold with us. We offer service from mold design
to final plastic molding injection
2. How can we guarantee quality?
From raw materials to final shipment, we can offer inspection
report or related certifications.
3. Why us ?
We focus on the fiber optical components for over 15 years , such
as adapters, connectors and ONU boxes . experienced in molding
injection for over 20years like consumer plastic ,auto plastic ,
4. What materials are we using ?
TPEE, TPU, PEI, PBT, nylon, LCP, PPS, POM, PC, ABS and some others
too.
5. Do you support customization?
Yes , both OEM and ODM are available.
