    Environmentally Friendly Composite Railway Sleeper Enhanced Durability For Railroad

    Ask Lasest Price
    Brand Name : GNEE
    Model Number : Composite Railroad Tie
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 tons per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Environmentally Friendly Composite Railway Sleeper Enhanced Durability For Railroad

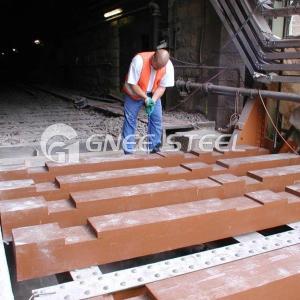

    Composite railway sleeper

    Composite railway sleepers, also known as composite material sleepers, perform a similar function to traditional wooden and concrete sleepers by supporting railway tracks. However, due to the use of advanced composite materials such as plastic, fiberglass, rubber, and steel, they offer enhanced durability, superior corrosion resistance, and effective vibration and noise reduction. Compared to conventional wooden and concrete sleepers, composite sleepers are lighter, more environmentally friendly, have a longer lifespan, and require less maintenance. GNEE Rail specializes in the production of high-quality railway sleepers, including composite railway sleepers. Our sleepers are engineered for superior strength and durability, ensuring long-lasting performance in even the most demanding environments. We offer customization options to meet your specific needs, ensuring the perfect fit for your railway projects. Contact us today for reliable, cost-effective solutions for your railway projects!

    Composite railway sleeper technical parameters

    No.Test ItemCJ/T 399-2012 Technical RequirementJIS E1203 RrequirementUnitGNEE Rail Test Result by CRCC Test Center
    1Bending Strength≥70≥70MPa1#2#3#
    124126117
    2Flexural modulus≥6≥6GPa4#5#6#
    101113
    3Longitudinal com pression strength≥40≥40MPa7#8#9#
    1075093
    4Shear strength≥7≥7MPa10#11#12#
    111012
    5Adhesive shear strength≥7(Base-material breakage)MPa13#14#15#
    10812
    6Water absorption≤10≤10Mg/cm316#17#18#
    434
    7The finished product resists bending load≥170≥170kN19#
    210
    8Screw spikes pullout strength≥40≥30kN20#21#22#
    444658
    9Mass density0.74±0.100.74±0.10g/cm323#24#25#
    0.720.650.68
    10Fatigue performance105 times,No abnormality/26#
    105 times,No abnormality
    11Flame retardantAfter the ignition source is removed, there is no visible flaming or continuous flaming of the sample, but the front of the flame does not exceed the 25mm mark/27#27#27#
    After the ignition source is removed, there is no visible flaming or continuous flaming of the sample, but the front of the flame does not exceed the 25mm markAfter the ignition source is removed, there is no visible flaming or continuous flaming of the sample, but the front of the flame does not exceed the 25mm markAfter the ignition source is removed, there is no visible flaming or continuous flaming of the sample, but the front of the flame does not exceed the 25mm mark
    12breakdown voltage≥20≥20kV30#31#32#
    Thickness: 20mmThickness: 20mmThickness: 20mm
    35 No breakdown35 No breakdown35 No breakdown
    13Surfance resistance≥1*1010≥1*1010Ω33#34#35#
    4.1*10154.1*10154.9*1015
    Remark

    1. Breakdown voltage: Sample size: 100*80*20mm (length*width*thickness), using unequal diameter electrodes in the air,

    ambient temperature: 20ºC, humidity: 40%. 2. Surface resistance: sample size: 100*100*4mm (length*width*thickness), ambient temperature: 20ºC, humidity: 40%, test voltage: 1000V.
    3. Underlined items are unqualified items;
