Cabling 90 Degree Punch Down CAT.6A UTP Keystone Jack White Color
Modular Jacks

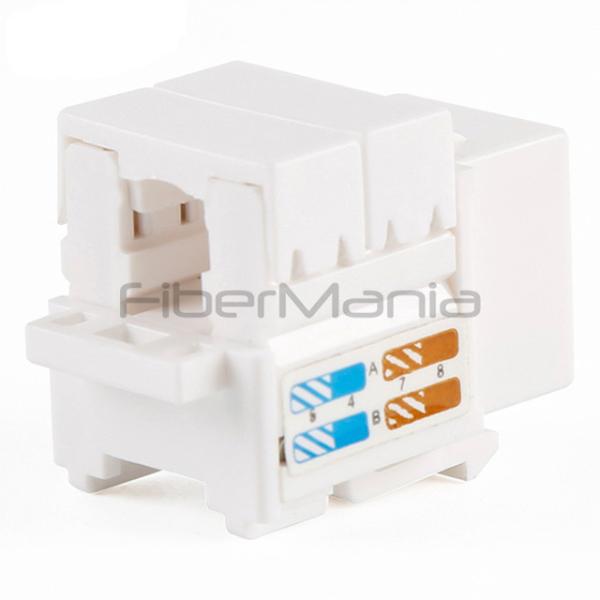

CAT.6A UTP Keystone Jack, 90 Degree Punch Down, White is a modular
socket used for network cabling. Its termination point is located
at a 90 degree position on the keystone jack, making installation
more convenient and suitable for various installation environments.
Adopting a toolless installation design simplifies the installation
process, saving time and labor. Category 6A supports frequencies up
to 500 MHz and can support data transmission rates of 10 Gbps,
making it widely used in home and enterprise network cabling
systems. This keystone jack is widely used in modern network
infrastructure due to its high performance, durability, and
convenient installation method, which can meet the needs of
high-speed data transmission.
Features:
1. 50u” gold plated contacts.
2. Utilizes 90 degree industry standard 110 termination style
3. Dual-color coded labeling made for both 568A & 568B wiring
schemes
4. Compact design fits into any conventional face plate, outlet
box, or panel
5. Compliant with EIA/TIA-568.2-D Cat6a connecting hardware
specifications
6. Backward compatible
Applications:
1. Data center
2. Enterprise network cabling
3. Ftth application
Specification:
| Product Name | CAT.3/CAT.5e/CAT.6/CAT.6A/CAT.7/CAT.8 keystone jack |
| Product Color | Black, White, Silver, Blue, Yellow, Green, Red, Orange |
| Wiring Scheme | T568A/T568B |
| Housing Material | ABS/PC |
| Plating | 3u inch, 6u inch, 10u inch, 15u inch, 20u inch, 30u inch, 50u inch |
| Working life | 750 times Min for jack; 200times min for IDC |
| Humidity | 10% ~ 90%RH |
| Temperature | -20ºC~ 60ºC |
| Voltage rating | 125VCA RMS |
| Current rating | 1.5Amp |
| Contact resistance | 100 MILLIOHMS MAX |
| Insulation Resistance | 1000 MEGOHMS MIN@500VDC |
| Certificate | ROHS |
