    Ultra clear Aluminosilicate glass sheet for AR anti-reflective coating glass processing

    Ask Lasest Price
    Brand Name : CHIYAN
    Model Number : CHIYAN-M2
    Certification : RoHs/REACH/Sb/Halogen free
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 2 Million ㎡ per month
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    Ultra clear Aluminosilicate glass sheet for AR anti-reflective coating glass processing

    Ultra clear Aluminosilicate glass sheet for AR anti-reflective coating glass processing

    Ultra Clear Medium Alumino-Silicate Glass(CHIYAN-M2) is an eco-friendly ultra clear alumino-silicate glass with certain strength.

    Glass Type: Float glass

    AR coating glass or anti-reflective glass, the production principle of this product is to use an internationally advanced magnetron sputtering coating technology to coat an ordinary tempered glass surface with an anti-reflection film, which effectively reduces the reflection of the glass itself and increases The transmittance of the glass makes the original color through the glass more vivid and more realistic.

    AR coating glass is mainly used for display device protection screen such as LCD TV, PDP TV, laptop computer, desktop computer, outdoor display screen, medical instrument, camera, display kitchen window glass, military display panel and other functional glass.

    Standard shipping Size:1300*1100mm (5th Generation)

    Regular Thickness:

    2.0mm 1.80mm 1.50mm 1.30mm

    1.10mm 0.70mm 0.55mm

    0.40mm 0.33mm 0.25mm

    Features:

    High Bending Strength Resistance

    High Impact Resistance

    High Scratch Resistance

    High Flexibility

    CHIYAN-M2’s 0.25~2.0mm thickness medium alumino-silicate glass has already been used in the market to meet a wide range of customers needs.

    Note: The size can be customized according to customer's needs.

    Application:Widely used in vehicle, consumer electronics cover glass, photovoltaic, industrial touch, smart home field;

    Product Composition

    Ultra Clear Medium Aluminosilicate Glass achieves better stress and strain depth than ordinary soda-lime glass by increasing the Al₂O₃ content in the glass and increasing the ion exchange capacity.

    Composition items SiO₂ Al₂O₃ Fe₂O₃ CaO MgO K₂O Na₂O
    Range of set value 69.0-72.0 4.5-8.0 0.01 6.0-8.0 3.5-5.0 0.1-1.0 13.0-14.5

    Chemical Tempering Process Parameter Setting Reference

    Technological Parameter 400°C 410°C 420°C 430°C
    CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um) CS(MPa) DOL(um)
    3H ≥650 ≥7.0 ≥650 ≥8.0 ≥650 ≥9.0 ≥650 ≥10.5
    4H ≥600 ≥8.0 ≥600 ≥9.0 ≥600 ≥11.0 ≥600 ≥12.5
    5H ≥600 ≥9.0 ≥600 ≥10.0 ≥600 ≥11.5 ≥600

    ≥13.0

    Note: Tempering solution Na+<0.5%. The above test results are affected by processing conditions, the data is for reference only, not as a basis for production.

    Dimensions

    NO. Item Specification Detection Method
    1 Dimensional Tolerance 1300*1100*2mm) Tape Measure
    2 Thickness

    0.50~1.1 ±0.05m

    1.3~2.0 ±0.05m

    Micrometer
    3 Thickness Difference 0.04mm Micrometer
    4 The Diagonal Difference
    (Perpendicularity)
    0.3%

    Tape Measure


    5 Stripe Level2 Point Sources of Light
    6

    Flatness

    (Before Tempering)

    0.50~0.55 0.15%(=h/L)

    0.70~2.0 0.10%(=h/L)


    Appearance descriptions

    NO. Item Specification Detection Method
    1 Effective Mass Area All areas outside 10mm of the edge are effective mass areas. 图片3.png
    2 Appearance Defects Scratches

    w0.03mm, Allowed

    0.03mmw0.05mm,L25mm (Controlled by point defects)

    w0.05mm, Not allowed


    Fluorescent Lamp 2000-2500Lux


    Bubbles

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

    Inclusions such as stones and sticky tin

    d0.05mm, Not counted

    0.05mmd0.2mm, Numbers5 /m²

    d0.2mm,Not allowed

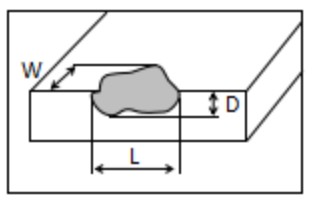

    3 Edge Defects Chipping

    Single chipping

    L2.0mm,W1.0mm,D1/2 of the thickness (as the right picture showed).

    The cumulative length of chipping is less than 10% of the edge length of the glass plate.

    4 Cracks and missing corners Not allowed
    5 Surface stains (glass shavings, attachments, point contamination) No stains that cannot be removed by ordinary detergents are allowed.

    d0.05mm, Not counted

    0.05mmd0.3mm, Numbers5 /m²

    d0.3mm,Not allowed

    The same method as appearance detection.

    Packing Quantity

    S/N L*W*T(mm) Packing Quantity (Pieces/Box)
    1 1300x1100x0.25 900
    2 1300x1100x0.33 1020
    3 1300x1100x0.40 900
    4 1300x1100x0.50 750
    5 1300x1100x0.55 680
    6 1300x1100x0.70 550
    7 1300x1100x0.82 490
    8 1300x1100x0.95 420
    9 1300x1100x1.0 410
    10 1300x1100x1.1 370
    11 1300x1100x1.3 310
    12 1300x1100x1.5 280
    13 1300x1100x1.6 250
    14 1300x1100x1.8 230
    15 1300x1100x2.0 200

    Packaging Diagram


    Storage
    Storage conditions: Temperature ≤30℃, humidity ≤65% (no condensation), shelf life is 6 months from the date of delivery.
