Brand Name : | DENOR |
Model Number : | DENOR-ZZB |
Certification : | ISO/CE/TUV |
Price : | 1000—2000 |
Payment Terms : | T/T |
Supply Ability : | 30sets/month |
Delivery Time : | 5-8 work days |

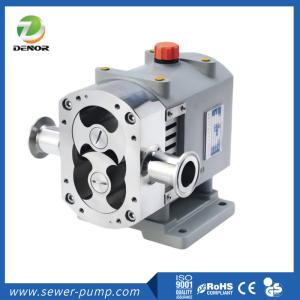

3RP lobe rotor pump
1. Features: This pump is a rotary positive displacement pump with high efficiency and long service life. It is suitable for conveying suspended liquids containing solid particles at temperatures of -30℃ to +180℃ and viscosities of 30 to 1.0×105cSt, as well as media with high corrosive and hygienic requirements. The parts in contact with the media inside the pump body are made of stainless steel, and the pump speed can be changed according to the different physical properties of the media.
2. Application: used in food, beverage, brewing, medicine, daily chemical industry, petrochemical industry and other industries.
3. Application scope: Theoretical displacement 21 (L/100r), maximum differential pressure 0.6 (Mpa).
3RP cam rotor pump model description:
3RP cam rotor pump performance parameter table
Pump Model | Theoretical displacement (L/100r) | ****Differential Pressure (Mpa) | Diameter (mm) | Speed (r/min) | Motor power (KW) |
3RP6/0.6 | 6 | 0.6 | 25 | 960 | 1.5 |
3RP8/0.4 | 8.5 | 0.4 | 40 | 960 | 1.5 |
3RP12/1.0 | 12 | 1.0 | 25 | 960 | 4 |
3RP21/0.6 | twenty one | 0.6 | 40 | 960 | 5.5 |
3RP28/0.4 | 28 | 0.4 | 50 | 960 | 4 |
3RP36/1.0 | 36 | 1.0 | 50 | 720 | 11 |
3RP52/0.6 | 52 | 0.6 | 50 | 720 | 11 |
3RP66/0.4 | 66 | 0.4 | 80 | 720 | 7.5 |
3RP78/1.0 | 78 | 1.0 | 80 | 720 | twenty two |
3RP107/0.6 | 107 | 0.6 | 80 | 720 | 18.5 |
3RP156/0.4 | 156 | 0.4 | 100 | 720 | 18.5 |
![]() |
