Howo 336hp 8m3 Transit Mixer Sinotruk 6x4 Concrete Mixer Truck With
BONFIGLIOL Reducer
A concrete mixer often colloquially called a cement mixer is a
device that homogeneously combines cement, aggregate such as sand
or gravel, and water to form concrete. A typical concrete mixer
uses a revolving drum to mix the components. For smaller volume
works, portable concrete mixers are often used so that the concrete
can be made at the construction site, giving the workers ample time
to use the concrete before it hardens. An alternative to a machine
is mixing concrete by hand.
Mixer trucks are also known as in-transit mixers. Materials will be
mixed and loaded into the tank. It begins mixing at one location.
SINOTRUK mixer is available in a wide range of options to meet your
different demand. The concrete mixer truck is equipped with
ultra-high strength integrated auxiliary frame, ensuring its
stability. 3-section folded blade, innovative ball-crown structure
and rear taper flushing device setting lower the residue rate at
discharge port. You can count on the quality and reliability of our
concrete mixers.
How do concrete mixer trucks work?
The concrete mixing transport truck maintains the material's liquid
state through agitation, or turning of the drum, until delivery.
The interior of the drum on a concrete mixing truck is fitted with
a spiral blade. In one rotational direction, the concrete is pushed
deeper into the drum.
Main Configuration
Type: 6x4 concrete mixer truck
Overall dimension: 8800*2550*3800 mm
Volume: 8m3
Mixer Pump: Eaton (USA Brand)
Motor: Eaton (USA Brand)
Speed Reducer: Bonfiglioli (Italy Brand)
Frame Details: parallel ladder with U-profiles and riveted cross
members
Drive model: 6x4
Emission: EURO II
Horse power: 336HP
Drive: left hand driving or right hand driving
Front axle: HF9, 9 ton loading capacity
Rear axle: HC16, 16 ton loading capacity
Tyre: 1200R20, 10+1 spare
Oil tank: 400L
Cab: HW76 cab, one sleeper with A/C
Specification
| Chassis Model | ZZ1257N3647W |
| Cabin | HW76, with two seats and one bed, with Air Conditioner |
Engine | Model | WD615.69 |
| Horse Power (hp/rpm) | 336/2200, Euro II Emission |
| Max.Toruqe(Nm/rpm) | 1350/1100-1600 |
| Displacement ( L) | 9.726 |
| Type | DIESEL, 6-cylinder in-line with water cooling, turbo charger and
intercooling, 4-stroke direct injection diesel engine |
| Transmission | HW19710, 10 speeds forward and 2 speed reverse, with High and Low
Gear |
| Front Axle | HF9, Steering with double T-cross section beam, Loading
Capacity:9,000KGS |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction
with differential locks between wheels and axles, ratio: 4.8,
option: 5.73 |
| Suspension | Front suspension: hydraulic telescopic double-action shock
absorbers and stabilizer; Rear suspension: leaf semi-elliptic
springs, bogie spring and stabilizer |
| Steering System | ZF8118, Hydraulic steering with power assistance |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake
(emergency brake): Spring energy, compressed air operating;
Auxiliary brake: Engine exhaust brake |
| Tire | 12.00R20 |
| Curb Weight (kg) | 13,000 |
| Loading Capacity (kg) | 30,000 |
| Gross Vehicle Weight (kg) | 41,000 |
| Drum Capacity(m3) | 8 |
| Hydraulic System | ZF, Rexroth, Eaton for option, |
| Wheelbase(mm) | 3625+1350 |
| Max. Speed (km/h) | 90 |

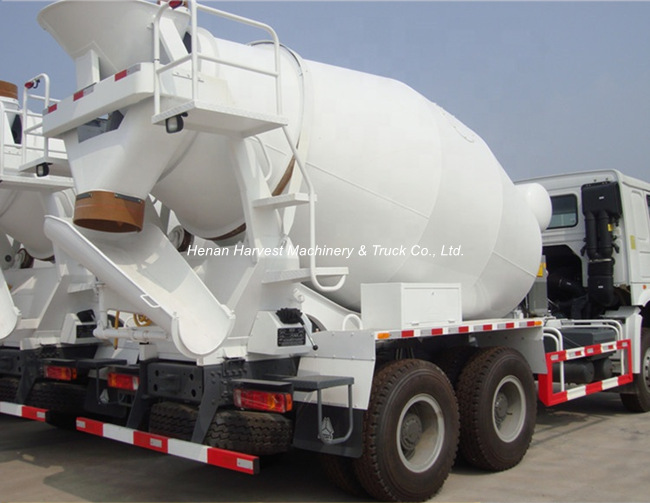

HOWO 8cbm Mixer Pictures
