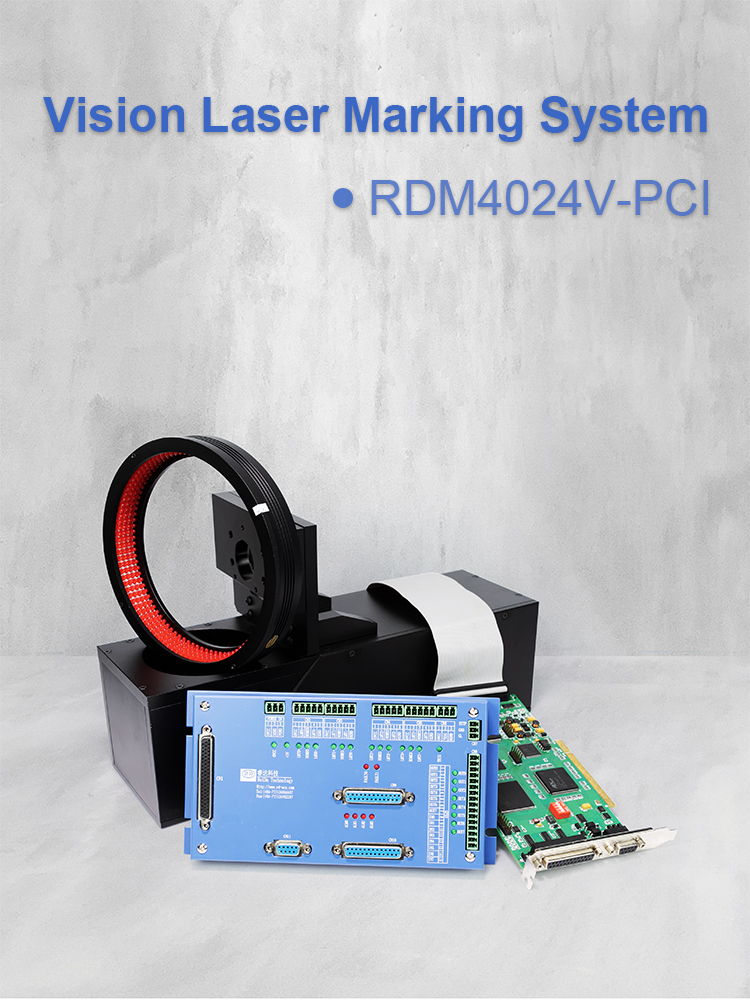

Ruida Laser Controller RDM4024V-PCI Laser Marking controller
Description Of Ruida Controller RDM4024V-PCI
Vision positioning precision marking, suitable for 3C application
industry. Motion controller with PCI interface. Using industrial
cameras and advanced image processing algorithms.The number of
movement axes supports 4 axes + 2 galvo axes. With rich laser
interface and external IO resources. Complete optical tooling and
light source system
| Parameter | RDM4024V-PCI |
| Laser | CO2, fiber and UV |
| Axes | 4 motion axes + 2 galvanometer shafts |
| Communication interface | PCI |
| Axis control interface | Pulse + dir or +/- pulse, differential two-terminal output |
| Camera | 1.3, 3, 5, 12 and 20 megapixels industrial network camera are
available |
| Light source system | Circular light source, OPDX and strip source are available |
| System function | Feature matching, gray matching, custom template visual positioning
marking |
| Installment encryption | Support |
| Firmware upgrade | Remote upgrade of mainboard program |
| Software | RDMarkVision |
| operating system | WinXP, Win7, Win8, Win10, 32-bit or 64-bit |
| Language | Chinese and English |
Key Function
(1)Advanced graphics and image positioning and target feature
learning realize precision vision positioning marking
(2)Worked with an independent application software RDMarkVision,
integrated automatic correction algorithm for visual aided
galvanometer, support visual positioning recognition marking,
assembly line visual anti-duplicate identification marking and
visual custom track motion recognition
(3)Equipped with comprehensive optical fixture and light source
systems
(4)Support feature matching, gray matching, custom template and
other visual positioning methods
(5)Support CO2, UV and fiber laser marking models
Application Fields
Equipped with CO2 laser, suitable for marking of wood, leather,
plastics and paper. Equipped with fiber laser, suitable for marking
of stainless steel, aluminium oxide, copper oxide and other alloy
materials, including jewelry, metal, electronic components,
battery, charger, switch, etc. Equipped with UV laser, suitable for
precision marking in electronic industry, including plastic,
PVC,electronic circuit board, cable, chip, LCD screen, glass, food
packaging, etc.
Software RDMarkVision(Free)
Support PLT, DXF, DSB, DST, SVG, BMP, JPG and other file formats
import, display and edit functions, support image file import and
processing. Support simplified Chinese, traditional Chinese,
English and other languages
Product Certification
All products passed CE, RoHS and FCC certification, in line with
safety production standards.
