1.5 Inch TFT LCD Display Panel with 480x240 Resolution and 6 o'clock Viewing Angle Standard Screen

Ask Lasest Price
Brand Name :	RGH
Model Number :	RT15WH004B-2
Certification :	ISO9001/ISO14001
Price :	Negotiable
Payment Terms :	L/C, T/T,Paypal
Supply Ability :	3.5kk
Delivery Time :	3-5weeks

Add to Cart

Product Details
Company Profile

1.5 Inch TFT LCD Display Panel with 480x240 Resolution and 6 o'clock Viewing Angle Standard Screen

TFT LCD Display 1.5 Inch 480x240 MP3 Panel Standard Screen Module

Size	1.5 inches
Resolution	480(RGB)x240
Display Type	TFT LCD
Backlight Type	LED
Viewing Angle	6 o'clock
Brightness	150 cd/m²
Dimensions	37.10(W)X32.70(H)X2.50(T)
Operating Temperature	-20°C to 70°C

NO.	Symbol	Level	Function
1-6	CP3-CP8		Pins to connect capacitors for power circuitry.
7	DUMMY		These pins are dummy (no electrical characteristic)
8	DUMMY		These pins are dummy (no electrical characteristic)
9	CP0		Pins to connect capacitors for power circuitry.
10	VCOML		The power supply of common voltage in DC vCOM driving
11	VCOMH		The power supply of common voltage in DC vCOM driving.
12	AGND		Analog ground for source driver.
13	DUMMY		These pins are dummy (no electrical characteristic)
14	AVDD		Intermediate voltage for Charge Pump.
15	CP1		Pins to connect capacitors for power circuitry.
16	CP2		Pins to connect capacitors for power circuitry.
17	PWM		PWM
18	FB		Power pad fo analog circuit.
19	LED-		LED,cathode.
20	DUMMY		These pins are dummy (no electrical characteristic)
21	DUMMY		These pins are dummy (no electrical characteristic)
22	LED+		LED,cathode.
23	GND	VSs	Ground.
24	VCC		Monitoring pin of internal digital reference voltage.
25	VSYNC	H/L	Frame synchronizing signal for RGB.
26	HSYNC	H/L	Line synchronizing signal for RGB.
27	DCLK	H/L	Dot clock signal for RGB.
28-35	DIN0-7	H/L	Data bus.
36	SDA		Power pad fo analog circuit.
37	SCL		Power pad fo analog circuit.
38	SCEN		CS
39	SHDB		STB
40	CREST		RESET

FAQ

1: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

2: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 3~5 weeks for mass production (basing on the quantity and product).

3. Do you support custom logo on the LCM?

A: Yes, we support, pls send us your detail inquiry, our sales will contact you asap.

4. How can I place a sample order?

A: Pls send us your inquiry, our sales will contact you soon.

5. What size LCD display can you provide?

A: 0.96 inch to 21.5 inch TFT LCD display we can provide.

7. What's your MOQ?

A: Most of our product's MOQ is 1K, beacuse we are a LCD display manufacturer.

8. What shipping ways do you support?

A: We can consult with it.

Product Tags:

1.5 Inch TFT LCD Display Panel

480x240 TFT LCD Display Panel

1.5 Inch TFT LCD Display Panel with 480x240 Resolution and 6 o'clock Viewing Angle Standard Screen

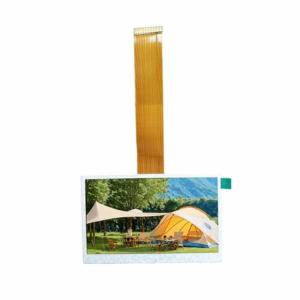

TFT LCD Display 4.3 Inch Digital Car play RGB 480x272 Resolution
