1.Technical Specifications
Stainless-steel 16 keys Industrial numberic keypad.
Compact design and highly reliable.
Provide waterproof, dustproof & violence resistance features ( IP65
/ IK07 ).

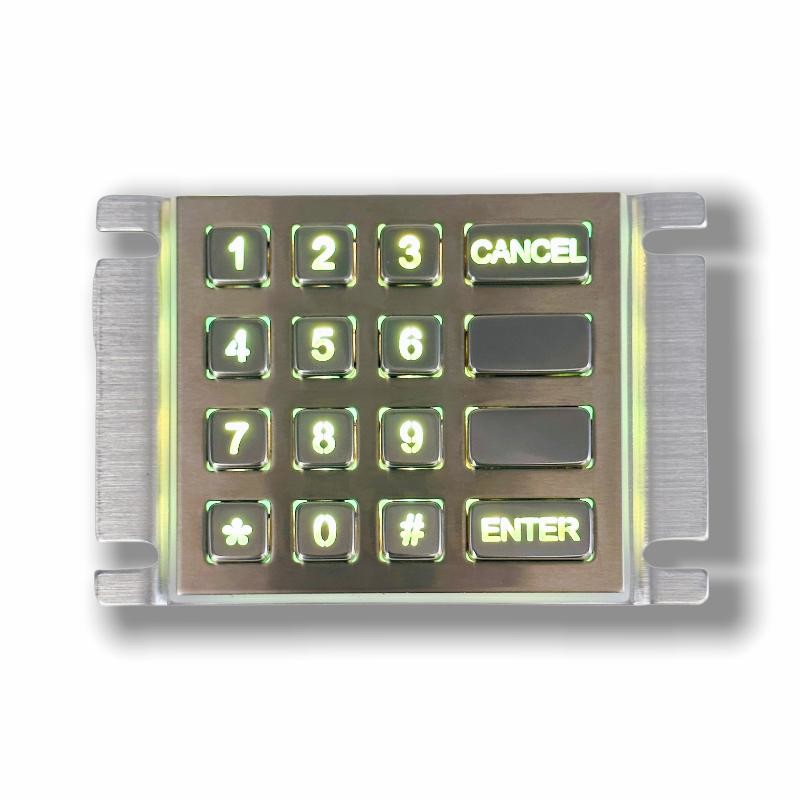

The keypad is backlit-ready, so that all character can light-up
when plug-in.

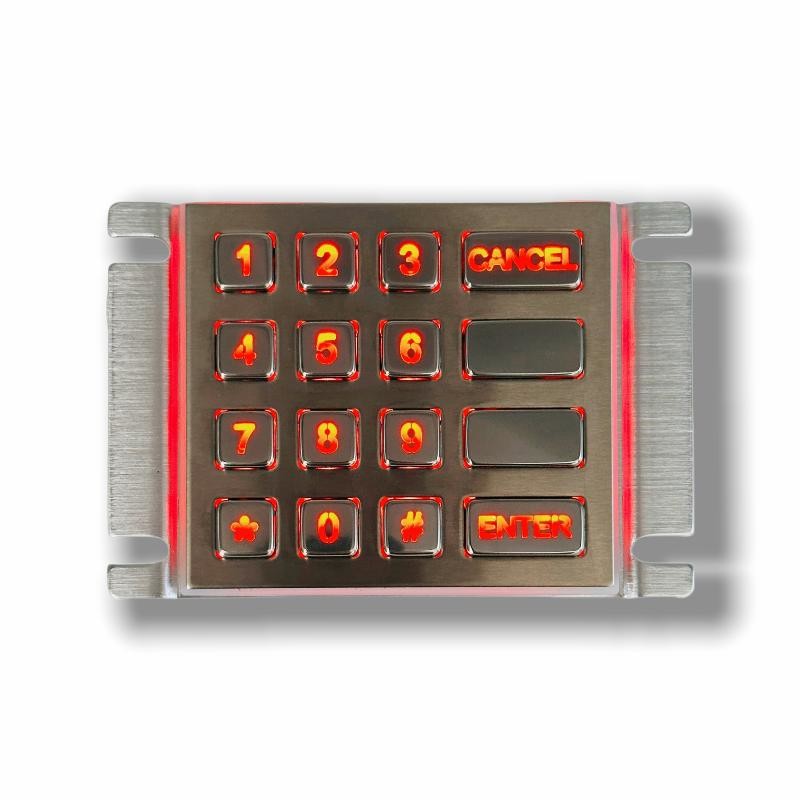

(The light colour can be customized.)
Long-life keys with over 2mil key life cycle.
The panel board and keys are made by SUS304 Stainless-steel (
SUS316 is for option ).
Integrade Buzzer which gives a "BEEP" when anykey pushed.
USB port (Type-A) interface, plug & play for common operation
system, such as MS-windows / MacOS / Unix / Linux / ArmOS /
Android.
Scan matrix 4*4 interface is for option.
2.Mechanical Features
Panel board and keys material: SUS304 Stainless-steel
Base board: Alumium alloy
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 0.6MM
Dimensions: 138*95*15.5MM, panel size: 100*91.5MM
Weight: 275g
3.Environmental adaptability
OperatingTemperature: -40℃～+65℃,
Operating RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish,
French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5.Installation Drawing
6.Application Site
This KeyPad is mainly targeted for use for unsupervised or
semi-supervised positions of varied access applications, internet
terminals and information kiosks at universities, shopping malls,
hotels, banks, airports, railway-stations and other public areas,
ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.
7. more pictures:
8. Please note:
All photos on this website were taken in real conditions. Due to
variations in lighting, shooting angles, and display resolutions,
the images you see may exhibit a certain degree of color
difference. We kindly ask you to refer to the actual received
products for accurate representation. Thank you for your
understanding.
