3 IN 1 1500w 2000w 3000w Multi-Function Metal Laser Rust Remover
Handheld Fiber Laser Cleaning Welding Cutting Machine
(PE-W1200)
>>>>>Machine introduction

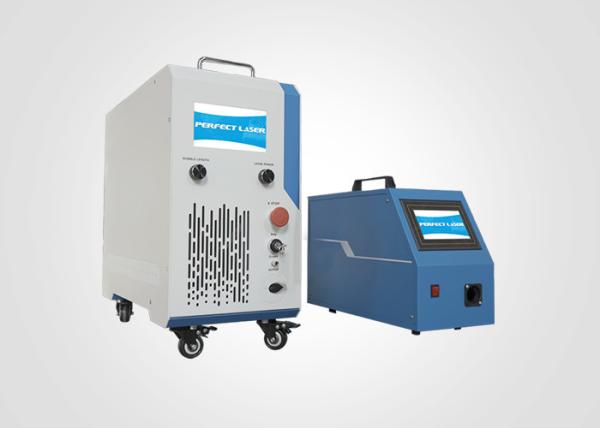

This small portable handheld laser welding machine, with fiber
optic transmission technology, achieves high-precision welding of
metal workpieces in 360 ° without dead corners. The weld seam is
smooth and uniform, demonstrating excellent aesthetics and
strength, and the welding effect is exceptionally stable.
Its compact design not only significantly reduces volume and
footprint, but also endows the equipment with high portability and
flexibility, making it easy to move and operate at any time,
significantly reducing labor costs. Even inexperienced operators
can easily get started and achieve efficient welding.
This welding machine adopts an advanced air-cooled cooling system,
ensuring excellent heat dissipation performance, and can maintain
stable operation even under long-term continuous operation,
providing a solid guarantee for continuous high-quality welding
operations.
This air-cooled handheld laser welding machine integrates a four in
one control system, allowing users to easily switch between various
functions such as welding, cleaning, fine processing of welds, and
cutting, greatly improving work efficiency and wide applicability.
At the same time, the device has multiple built-in security alarm
mechanisms, a simple and intuitive operating interface, strong
flexibility, and can fully meet the diverse needs of various
customers in different scenarios.
>>>>>Main Features
1.The handheld laser welder has professional laser welding system,
with comfortable graphics, simple and clear operation, integrating
welding, cleaning, welding seam cleaning, and cutting functions
into one;
2. Flexible and portable, weighing only 45 kilograms. Mobile
operation, electric vehicles can be used. The armored cable of the
welding gun can be dragged, making the movement operation more
convenient;
3. The handheld laser welder adopts intelligent touch screen and
intelligent operating system, it only requires half an hour of
training to master welding operations;
4. The weight of the welding gun is 0.7kg, and the maximum welding
thickness is 3mm. Lightweight and portable, single person
controllable, truly achieving one person portable handheld laser
welding machine;
5.The handheld laser welder is suitable for metal welding of
0.5mm-3mm,such as overlap welding, spot welding, external corner
welding, internal corner welding, suitable for various welding
processes;
6. Equipped with a wire feeder, welding wires can be selected
according to the size of the weld seam. The weld seam is beautiful
and the welding speed is fast.
Laser Welding Head Nozzle
Products Comparative advantage
1.Application materials
The handheld laser welding machine is widely used Stainless steel, die steel, carbon
steel, nickel, zinc, aluminum, etc
2. Application industries
The handheld laser welding machine can be used in automotive,
electronics, steel, aerospace, shipbuilding and other industries
Technical Data
| Product name | Fiber laser welding machine |
| Model | PE-W1200 |
| Laser power | 1200W(Can be customized) |
| Wire feeding diameter | Standard configuration 0.8-1.6mm |
| Net weight of wire feeder | 13.2KG |
| Weld seam splicing requirements | Self fusion welding is used for plate thickness ≤ 15% and ≤ 0.5mm, with wire filling welding ≤ 1.2mm |
| Net weight of equipment | 45KG |
| Equipment size (including casters) | 600X275X556mm |
| Welding thickness | ≤ 3.5mm |
| The total length of the welding gun wire | 10m (the length of the wire feeding tube is 5m) |
| Welding gun weight | ≤ 0.7KG |
| The total power of the equipment | 4.5KW |
| System languages | Chinese, English, Korean, Russian, Japanese, German, French,
Spanish, Portuguese, Turkish, Greek, Czech, Slovak, Polish, Thai,
Vietnamese, Romanian, Italian, etc. |
| Voltage/frequency | Standard single-phase 220V 50/60HZ |
| Laser |
| Center wavelength (nm) | 1080±10 |
| Operating mode | Continuous/Modulated |
| Operating temperature | -10—45℃ |
| Power stability | ±2 |
| Output connector | QBH |
| Core diameter | 25um |
| Output fiber length m | 10 |
| Input power (V AC) | Single item 220±10%V AC |
| Power adjustment range % | 10-100 |
| Beam quality BPP | ≤1.1 |
| Cooling method | Air cooling |
| Laser weight | ＜24KG |
| Automatic wire feeder |
| Placement environment | Smooth, vibration free and impact free |
| Working environment temperature (℃) | -10~40 |
| Working environment humidity (%) | ＜70 |
| Maximum supported welding wire weight | 20KG |
| Maximum supported wire diameter | 2.0mm |
| Supply voltage (V) | 220±10％V AC 50/60HZ |
