    Three Stage Grain Bin Hydraulic Jacks Red Customized For Enamel Tank

    Ask Lasest Price
    Brand Name : WINCOO
    Model Number : TCT-50-2300
    Certification : CE
    Price : USD+480~680+set
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 100 set/month
    Delivery Time : 20 days
    • Product Details
    • Company Profile

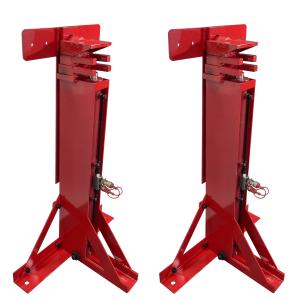

    Three Stage Grain Bin Hydraulic Jacks Red Customized For Enamel Tank

    Three stage grain bin hydraulic jacks suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.​​

    Product Advantages
    With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
    Detailed Description
    1, This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
    2, The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.
    3, Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
    4, Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
    5, The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
    6, The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
    7, The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
    Technical Parameter
    Hydraulic Jacks
    Rated lifting weight
    50KN
    System pressure
    16MPa
    Hydraulic travel stroke
    0.8m
    Size of oil inlet and outlet
    M18*1.5
    Lifting height
    2.3m
    Hydraulic operating mode
    Double-acting
    Lifting mode
    Rectangular steel frame
    Lock mode
    Hydraulic lock and Pin lock
    Fixture type
    Triangular bracket base, self-tapping fixed
    Size
    800*620*1180 mm
    Weight
    60 kg
    Basic height of hydraulic jacks
    1180 mm
    Hydraulic Cylinder
    Max working pressure
    16 MPa
    System pressure
    380 V
    System flow
    38 L/min
    Individual maximum displacement
    5 L/min
    Tank capacity
    300 L
    Motor speed
    1470 r/min
    Control voltage
    DC 220 V
    System temperature
    20-60ºC
    Size
    2500*2000*1500 mm
