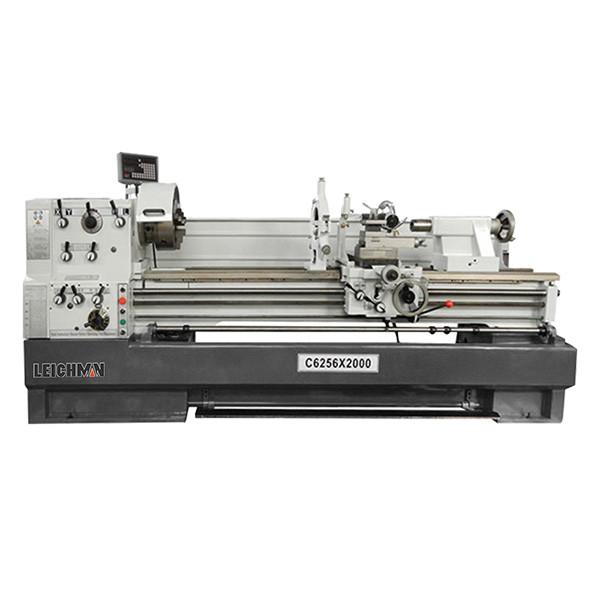

Leichman Manual Lathe Machine Tool Engine Lathe C6256 Small electric

Leichman Manual Lathe Machine Tool Engine Lathe C6256

The engine lathe is a horizontal lathe which can process many kinds of workpieces such as shaft, disc, ring and so on. It is commonly used to process the internal and external rotating surface, end face and various internal and external threads of the workpiece.

It can also be used for drilling, reaming, tapping and knurling by using corresponding cutting tools and accessories. Ordinary lathe is one of the most widely used lathes, accounting for about 65% of the total number of lathes. Because its spindle is placed horizontally, it is called horizontal lathe.

Standard accessories:
Reduction sleeves / Centers / Three jaw chuck / Four jaw chuck / Face plate / Steady rest / Follow rest / Changing gears / Tool box and tools 1 set / Bed base / Work light / Foot brake / Coolant

Special accessories:
Live center / Bed base / Work light / Foot brake / Coolant

Machine Parameter:

Specification	Model
	C6241	C6246	C6246E	C6251	C6256	C6256E
Swing over bed	410mm(16 ")	460mm(18’)	460mm(18’)	510mm(20")	560mm(22")	560mm(22")

Swing over cross slide	220mm (8-13/16”)	270mm(10-13/16”)	270mm(10-3/4”)	305mm(12")	355mm(14")	355mm(14")

Swing in gap diameter	640mm(25-1/8 ")	690mm(27-1/8 ")	690mm(27-1/8 ")	735mm(28-7/8 ")	785mm(30-7/8 ")	785mm(30-7/8 ")

Distance between centers	1000mm(40 " ) 1500mm(60’’) 2000mm(80”)			1000mm(40 " ) 1500mm(60’’) 2000mm(80”) 3000mm(120”)
Valid length of gap	165mm(6-1/2”)			170mm(6-11/16”)

Width of bed	300mm(11-13/16”)			350mm(13-13/16”)
Spindle nose	D1-6		D1-8	D1-8
Spindle bore	58mm(2-1/4”)		80mm(3-1/8”)	80mm(3-1/8”)		105mm(4-1/8”)
Taper of spindle bore	No.6 Morse		No.7 Morse	No.7 Morse		Φ113(1:20)
Range of spindle speed	12 changes, 25~2000r/min			12 changes, 25~2000r/min		12 changes, 25~1500r/min
Compound rest travel	128mm(5”)			130mm(5-1/8”)
Cross slide travel	285mm(5”)			316mm(12-7/16”)
Max. Section of tool	25×25mm(1”×1”)
Lead screw thread	6mm or 4T.P.I.

Longitudinal feeds range	42kinds, 0.031~1.7mm/rev (0.0011”~0.0633”/rev)			35kinds, 0.059~1.646mm/rev (0.0022”~0.0612”/rev)
Cross feeds range	42kinds, 0.014~0.784mm/rev (0.00033”~0.01837”/rev)			42kinds, 0.020~0.573mm/rev (0.0048”~0.01354”/rev)
Threads metric pitches	41 kinds, 0.1 ～14mm			47 kinds, 0.2～14mm		41 kinds, 0.1 ～14mm
TThreads imperial pitches	60kinds,2~112T.P.I.
hreads diametral pitches	50kinds,4~112DP

Threads module pitches	34 kinds, 0.1~7MP

Quill diameter	60mm(2-5/16’’)			75mm(2-15/16’’)

Quill travel	130mm(5 ")			180mm(7-1/16")
Quill taper	No.4 Morse			No.5 Morse

Main motor power	5.5kW(7.5HP)3PH			7.5kW(10HP) 3PH
Coolant pump power	0.1kW(1/8HP) 3PH
Overall dimension(L x w x H)	220x108x134cm 275x108x134cm 325x108x134cm	220x108x137cm 275x108x137cm 325x108x137cm	220x108x137cm 275x108x137cm 325x108x137cm	239x115x143cm 284x115x143cm 434x115x143cm 434x115x143cm	239x115x146cm 284x115x146cm 434x115x146cm 434x115x146cm	239x115x146cm 284x115x146cm 434x115x146cm 434x115x146cm
Packing size(L x W x H)	225x112x162cm 280x112x162cm 330x112x162cm	225x112x162cm 280x112x156cm 330x112x156cm	225x112x162cm 280x112x156cm 330x112x156cm	245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm	245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm	245x119x174cm 290x119x174cm 340x119x174cm 440x119x174cm
Net weight	1580kg 1745kg 1900kg	1645kg 1810kg 1965kg	1645kg 1810kg 1965kg	2070kg 2160kg 2435kg 2805kg	2195kg 2285kg 2560kg 2930kg	2195kg 2285kg 2560kg 2930kg
Gross weight	1844kg 2049kg 2229kg	1910kg 2115kg 2295kg	1910kg 2115kg 2295kg	2460kg 2550kg 2840kg 3270kg	2600kg 2690kg 2980kg 3410kg	2600kg 2690kg 2980kg 3410kg

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Jiangsu Leichman Automation Technology Co., Ltd.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Leichman Manual Lathe Machine Tool Engine Lathe C6256 Small electric

Leichman Manual Lathe Machine Tool Engine Lathe C6256 Small electric

Leichman Manual Lathe Machine Tool Engine Lathe C6256 Small electric

small manual engine lathe

electric manual engine lathe

electric small engine lathe

Leichman Manual Lathe Machine Tool Engine Lathe C6256 Small electric

You May Like

metal Conventional Engine Lathe Manual Machine Manufacturer

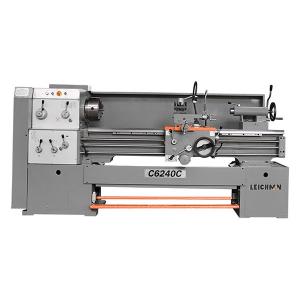

Light Duty Metal Horizontal Manual Lathe Machine High Accuracy Factory Lower Price
