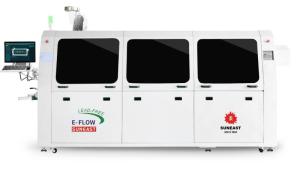

    Small Wave Soldering Machine 380V 50HZ Lead Free Wave Solder Machine

    ETS-300 Flexible Modular Lead-free Wave Soldering Machine


    Five Features:

    1.Compact structure and small footprint.

    2.PC+PLC control system.

    3.IR preheating, high thermal efficiency and uniform temperature.

    4.Step motor control spraying, more stable and reliable.

    5.Adopts small solder pot, reduces the cost.


    Characteristics:

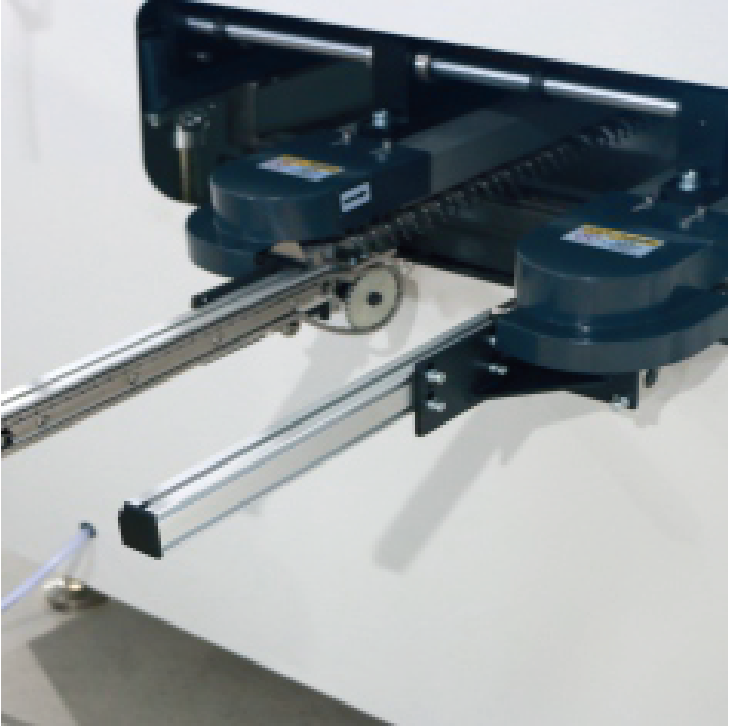

    • Conveying system: Direct buffering input structure. Special stainless steel chain transmission, aluminum alloy rail unique design, durable;Conveying system: adopt segmental floating structure, effectively prevent guide rail deformation
    • Preheating system: Drawer-type energy-saving design.IR preheating, PID mode temperature control ,the temperature accuracy can reach to ±2℃; the dropping temperature between preheating zone and soldering zone is ≤5℃
    • Flux spraying system: Adopt precision control valve for digital regulation, convenient management. Nozzle movement is controlled by stepping motor. Flux automatic pressure supply, can make the spray flow quickly reach saturation, top exhaustin, filtration system
    • The solder pot adopts external heating, it is made of cast iron, the inner surface is anticorrosive treatment, with two low-flow nozzle and low oxidation design
    • Forced air cooling system
    • PC+PLC control system. Windows10 operation system with Chinese/English operation interface. Processing profile and data auto saving function. Alarm for detecting the flux and solder level

    Application range:

    Wave soldering equipment is used to solder through-hole components and circuit boards through high-temperature liquid solder waves on printed boards with pre installed plug-in components. Wave soldering is widely used in the electronic product manufacturing industry, including consumer electronics, communication equipment, household appliances, power supplies, automotive electronics, medical equipment, industrial automation, energy and other industries.


    Overall diagram:

    01 Buffer system

    02 Exhaust fan

    03 Flux spraying system

    04 Pre-heater

    05 Solder pot lifting unit

    06 Dual wave solder pot

    07 Angle adjustment controller

    08 Cooling system

    09 Finger cleaning system

    10 LCD


    Built-in Spraying Device
    Drawer type module preheating unit
    Linkage Inlet Buffering
    Solder Pot with Cast Iron Material

    Product Parameters:

    Model NOETS-300ETS-300E
    Dimension:LxWxH(mm)3385x1240x15403385x1190x1540
    WeighApprox.1500kgApprox.1450kg
    Power Supply3PH 380V 50HZ3PH 380V 50HZ
    Startup Power28KW27KW
    Operation Power Consumption7KW6.7KW
    Control SystemPC+PLCPC+PLC
    Spraying movementStep motorStep motor
    Spray Pressure0.2Mpa~0.4Mpa0.2Mpa~0.4Mpa
    Flux Flow Arrangeoptionoption
    Auto Fill FluxStandardStandard
    ExhaustTop exhaust/
    Exhaust Ducting Diameter(mm)Φ250Φ250
    Exhaust tan power370W/
    Preheating ModeIRIR
    Control ModePIDPID
    Preheating Zone Number22
    Preheating Length(mm)1500mm1500mm
    Preheating TemperatureRoom temperature~200℃Room temperature~200℃
    Warm-up Time(min)Approx.12min(setting:150℃)Approx.12min(setting:150℃)
    PCB Width(mm)50~30050~300
    Conveyor DirectionL→R(Option:R→L)L→R(Option:R→L)
    Conveyor Speed(mm/min)500~1800500~1800
    Conveyor Height(mm)750±20750±20
    Available Component Heigh (mm)Top120,Bottom15Top120,Bottom15
    Conveyor Speed Control ModeClosed loop stepless speed regulation InverterClosed loop stepless speed regulation Inverter
    Fingers1.Heavy type double hook finger 2.Light double hook finger(Option)1.Heavy type double hook finger 2.Light double hook finger(Option)
    Conveyor Angle4~6°4~6°
    Type of solder PotMotor driveMotor drive
    Solder Pot MaterialCasting IronCasting Iron
    Wave Height AdjustmentDigital Control by PCDigital Control by PC
    Cooling MethodAir cooling/
    Heater Power9KW220V 9KW
    Solder Pot Temperature300℃300℃
    Solder Pot CapacityApprox.350KGApprox.350KG
    Wave Drive Power180W*2 3PH 220VAC180W*2 3PH 220VAC
    Solder Pot Warm-up Time

    Approx.150min

    (setting:250℃)

    Approx.150min

    (setting:250℃)

    Temperature Control ModePIDPID
    Finger Cleaning SystemBrush/

    Notices:

    1.Power requirements:

    ①Three phase five wire: voltage 380V, frequency 50/60HZ;

    ②The wire diameter requirement is 16mm², with a leakage protection switch of 125A and a leakage capacity of 150-200mA.

    2.The ground is required to withstand a pressure of 1000kg/m².

    3.External air exhaust requirements:

    ①Spray: air duct Ø250mm, exhaust air volume 30M³/min;

    ②The exhaust air volume for the tin furnace outlet Ø250 and the tail cover outlet Ø150 is about 15M³/min.
