    0.15mm Enamel Coated Copper Winding Wire Enameled Wire Gauge Chart

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 0.15mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

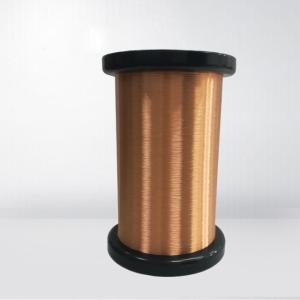

    0.15mm Enamel Coated Copper Winding Wire Enameled Wire Gauge Chart

    0.15mm Enamel Coated Copper Winding Wire Enameled Wire Gauge Chart


    Enamelled copper wire is an important component in industrial and audio applications. Its unique properties, including high electrical conductivity, mechanical flexibility and heat resistance, make it an indispensable material for manufacturers. The wire is 0.15 mm in diameter and features a polyurethane paint film for enhanced durability, designed to meet the demands of modern electrical systems. Whether used in motors, transformers or audio equipment, enameled copper wire remains the cornerstone of innovation in the electrical and electronics industry.

    Test Items


    Requirements


    Test Data

    Result


    1st Sample

    2nd Sample

    3rd Sample

    Appearance

    Smooth & Clean

    OK

    OK

    OK

    OK

    Conductor Diameter

    0.150mm ±0.002mm

    0.150

    0.150

    0.150

    OK

    Thickness of Insulation

    ≥ 0.011mm

    0.015

    0.015

    0.014

    OK

    Overall Diameter

    ≤ 0.169mm

    0.165

    0.165

    0.164

    OK

    DC Resistance

    ≤1.002 Ω/m

    0.9569

    0.9574

    0.9586

    OK

    Elongation

    ≥ 19%

    25.1

    26.8

    24.6

    OK

    Breakdown Voltage

    ≥1700 V

    3784

    3836

    3995

    OK

    Pin Hole

    ≤ 5 faults/5m

    0

    0

    0

    OK

    Adherence

    No cracks visible

    OK

    OK

    OK

    OK

    Cut-through

    200℃ 2min No breakdown

    OK

    OK

    OK

    OK

    Heat Shock

    175±5℃/30min No cracks

    OK

    OK

    OK

    OK

    Solderability

    390± 5℃ 2 Sec No slags

    OK

    OK

    OK

    OK
