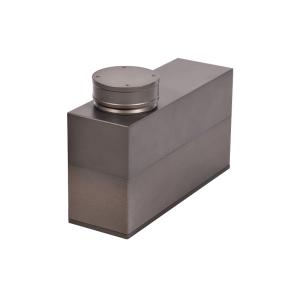

30g-6100g Electromagnetic Weighing Load Cell -WLDM-134
Overview:
working on the principle of electromagnetic induction,The WLDM--134
is electro-magnetic load cell for high precision weighing
applications covering a weighing range from 30g to 6100g. Thanks to
its integrated overload protection, the WLDM-134 is able to avoid
euipment failure or misoperation damage. Because they are not
impacted by changes in temperature or environmental conditions,
they are ideal for use in demanding industries. The WLDM-134 comes in double capacity and accuracy with built-in
RS232 communication interface, which enables direct connection with
PLC and computer. The WLDM-134 finds applications in various
industries, including manufacturing, automotive, aerosppace, and
healthcare.
Features :
1. The best option for quick manufacturing procedures
2. Adaptable and simple integration thanks to a strong mechanical
structure, dependable overload safety, and supplementary,
adjustable dead load range
3. Automatic dual precision and range settings
4. The purpose of manual external calibration
5. The ability to adjust temperature in real time
6. An anti-static and anti-interference aluminum shell
7. A huge LCD interface display
8. Modifiable stability time for weighing
9. Different shielding units, include milligrams, ounces, and grams
10. The machine is currently locked on or off automatically.
11. An changeable built-in temperature, date, and time display
feature
12. After installing the plug-in, the PC's balance data can be read
immediately.
13. Provided with an RS232 connection for connecting auxiliary
devices
Dimension(MM):
Specifications:
| Capacity(g) | Readability(mg) | repeatability(mg) | Linearity(mg) |
30 | 0.01 | ±0.03 | ±0.03 |
| 50 | 0.01 | ±0.03 | ±0.03 |
| 80 | 0.01 | ±0.03 | ±0.03 |
| 100 | 0.01 | ±0.03 | ±0.03 |
| 110 | 0.1 | ±0.1 | ±0.2 |
| 210 | 0.1 | ±0.1 | ±0.2 |
| 300 | 0.1 | ±0.2 | ±0.3 |
| 400 | 0.1 | ±0.2 | ±0.3 |
| 500 | 0.1 | ±0.2 | ±0.3 |
| 210 | 1 | ±1 | ±2 |
| 510 | 1 | ±1 | ±2 |
| 1000 | 1 | ±2 | ±3 |
| 1200 | 1 | ±2 | ±3 |
| 2000 | 1 | ±2 | ±3 |
| 3000 | 1 | ±2 | ±3 |
| 1100 | 10 | ±10 | ±20 |
| 2100 | 10 | ±10 | ±20 |
| 3100 | 10 | ±10 | ±20 |
| 4100 | 10 | ±10 | ±20 |
| 5100 | 10 | ±20 | ±20 |
| 6100 | 10 | ±20 | ±30 |
Data Acquisition:
Load Direction:
Load Cell Packaging and Shipping
To ensure safe arrival at your location, the load cell will be
carefully packaged and shipped. The packing process is as follows:
1. The load cell will be placed in a sturdy cardboard box to
protect it from external damage during shipping.
2. The box will be filled with foam padding to provide additional
cushioning and prevent the load cell from moving during shipping.
3. The load cell will be sealed in a plastic bag to protect it from
moisture and other environmental factors.
4. Additional layers of bubble wrap will be provided for additional
protection.
5. The carton is securely taped to prevent tampering.
6. A shipping label with your address and product information is
attached to the box.
7. The package is shipped using a reliable and trusted freight
carrier.
Once the package is shipped, you will receive a tracking number to
monitor the status of your delivery. Please ensure that someone is
available at the delivery address to receive the package to avoid
any delays or problems.
