Multi-function Counting Packaging Machine Servo Control Fiberglass
Rods Pillow Packing Machine
Main performance and structural features
1, The machine is automatic counting and packing 2 in 1
intergrating machine, fully automatic machine, easy to operate and
maintain, reasonable compact design, small footprint for small business, meet the
industry requirements.
2, Big volumetric storage and counting way, can be capitable for 10-100
pieces incense sticks counting and packing.
3, Easy to adjust the length once changing the stick length, stick
length from 100 - 300mm, to be customized.
4, Multi-functional machine, can be 2.5-3.0 diameter sticks and
also 3.0-3.5 diameter sticks. And to be customized for other sizes.
5, Quantity of each bag can be intelligent to adjust, just set in
the operating screen, very easy and convenient .
6, Chinese-English bilingual languages for the operating screen, can
be customized.
Specifications:
Machine Mode | SN- |
Packaging type | 3 side seal H type |
Packing Speed | 400-800 pieces / |
Film Thickness | 0.01-0.022 mm |
Film width | 300 mm |
Bag Length | 300-600 mm |
Bag Width | 10-150 mm |
Bag height | Max. 80 mm |
Film type | BOPP single side heat seal roll film |
Machine Size | 3200*980*1250 mm |
Machine weight | 500 KG |
Power | 220 V 50/60 HZ 3KW |
Applications | Buddha incense, mosquito incense, food, chemical, catering,
hardware and daily chemical |
Machine Details:
1. Packaging machine appearance Sprayed and baked paint finish, can be customized for stainless
steel. It can realize the one-step process of material release, counting,
packaging, sealing and cutting |  |
2.Control panel Large size display PLC, all is displayed in the screen, easy to
operate and maintain. |  |

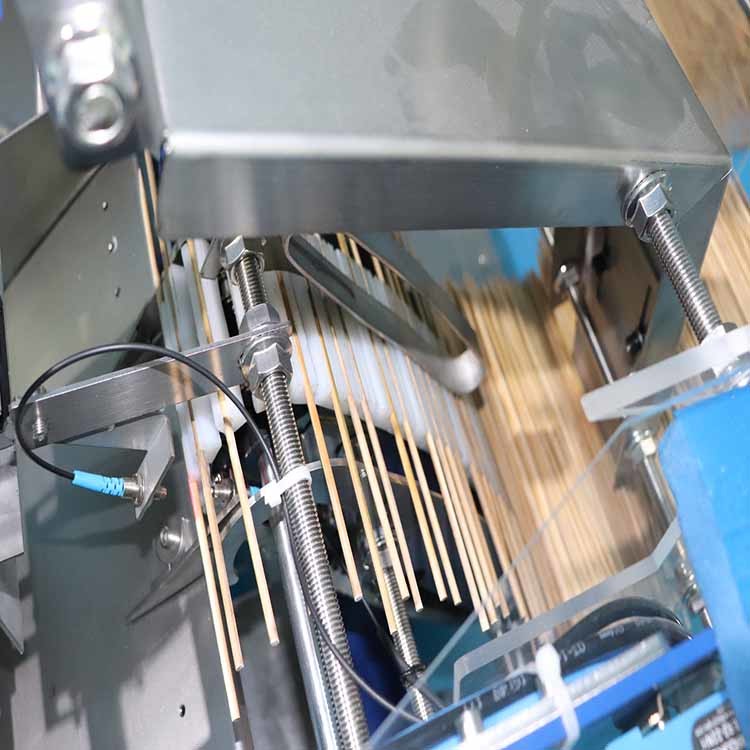

3. Automatic feeding and counting
Electric optic eye to detect the quantity, realiable and accurate,
reduce labor, save in time and cost. |  |
4. Big storage tank for materials
Big tank for storing materials, enlarge the packable range, reduce
the times to fulfil materials, save in time and labors. |  |
5. There's a temporary small storage slot to collect the counted
materials, once reach the set counted quantity, will open the slot
for packing, very intelligent and reasonable. |  |
| 6. The counted materials will be spaced for central bag packing.
There will be separated operating buttons for the packing parts,
which is easy to operate |
|
| 7. There is separated control button for cutters. Cutter will be
good quality with hard enough steel to ensure cut placement
precisely and cut neat. |  |
8. Large applications
Suitable for Buddha incense, mosquito incense, food, chemical,
catering, hardware and daily chemical etc counting and packing |  |
Support and Services:
This Counting Packing Machine is designed to provide reliable and
efficient packaging for small long shape products. With advanced
technology and high-quality components, our machine can handle a
wide range of sticks materials and sizes.
We offer comprehensive technical support and services for our
machine to ensure optimal performance and minimal downtime. Our
team of experienced technicians is available to provide
installation, training, and maintenance services to help you get
the most out of your investment.
In addition, we offer troubleshooting and repair services to
address any issues that may arise with your machine. Our goal is to
help you keep your production running smoothly and efficiently.
Packing and Shipping:
Product Packaging:
It will be packaged securely in a sturdy cardboard box to protect
it from any damage during shipment. Inside the box, the machine
will be wrapped in bubble wrap and other protective materials to
ensure it arrives at its destination in pristine condition.
Shipping:
We offer worldwide shipping for this machine. Once your order is
placed, we will process it within 1-2 business days and ship it out
via a reliable forwarder to make sure your cargo's safety.
