Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C

    Buy cheap Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C from wholesalers

    Buy cheap Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C from wholesalers
    • Buy cheap Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C from wholesalers
    • Buy cheap Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C from wholesalers
    • Buy cheap Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C from wholesalers

    Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C

    Ask Lasest Price
    Brand Name : Envsin
    Model Number : ESR
    Certification : CE
    Price : $8000 >=1 Set
    Payment Terms : T/T, Western Union, D/P
    Supply Ability : 20 sets per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

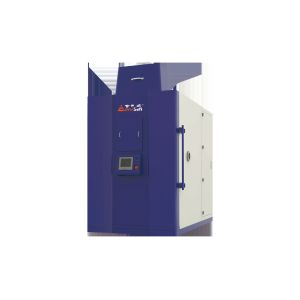

    Solar Simulation Chambers IEC61215-2016 DIN75220 temperature from -40°C to +85°C

    Solar Radiation Simulation Chamber With Temperature and Humidity

    The test chamber apply to evaluate the thermal or photo-chemical ability of equipment that is directly exposed to sunlight radiation during the hot season of life to withstand solar radiation. users can evaluate the performance changes of parts or vehicles after irradiation, including shape, color, gloss, feel, strength and various thermal expansion results, as well as testing of vehicle starting performance, motor performance indicators under sunlight radiation.
    Features
    Fashionable design of modular construction
    7 colors touch screen display and 3 bit control system;interface Ethernet
    Special air circulation system inside ensures testing accuracy.(Patented)
    Optional network video monitoring and data synchronization
    Environment-friendly refrigerating control technology.
    Automatic reminder of equipment maintenance plans and software of recording malfunction
    Specifications
    The Temp TestNo radiation temp range: -40℃~+120℃Note:1, Test with no load, meeting
    GB/T5170-2008,if no othmeeter
    special notice.

    2, Ambient Temp 25℃, good
    Ventilation condition:function
    well if 35℃≥RT 25℃;
    Cool
    down rate and thermal load
    capacity will be affected by ambient low temperature.
    Radiation temp range: -20℃~+100℃
    Temp uniformity: ≤1.5℃
    Tempe deviation: ±2.0℃
    Temp fluctuation: ±0.5℃
    Heating rate: ≥5℃/min
    Cooling Rate: ≥2℃/min
    Temp And Climatic TestTemp range:+20℃~+85℃
    Humidity range: 10%RH~98%RH
    Temp uniformity: ≤1.5℃
    Humidity uniformity: 3.0%RH
    Temp deviation: ±2.0℃
    Humidity deviation: +2/-3%RH
    Temp fluctuation: ±0.5℃
    Humidity fluctuation: ±2.0%RH
    Solar Radiation TestUV Exposure Area: >5600cm²
    The light wavelength: all band spectrum, simulating sunlight from 280 nm to 3000 nm
    Irradiation intensity :(0 ~ 1200) W/m² can be adjusted, and can be recorded continuously

    Curve diagram
    Temperature And Humidity Curve Diagram Full Spectral Image Of The Luminaire
