Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD

    Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers

    Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers
    • Buy cheap Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD from wholesalers

    Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD

    Ask Lasest Price
    Brand Name : Gemei
    MOQ : 1 Set
    Supply Ability : 200 Set/Sets per Month
    Price : $2,499.00/sets 1-4 sets
    • Product Details
    • Company Profile

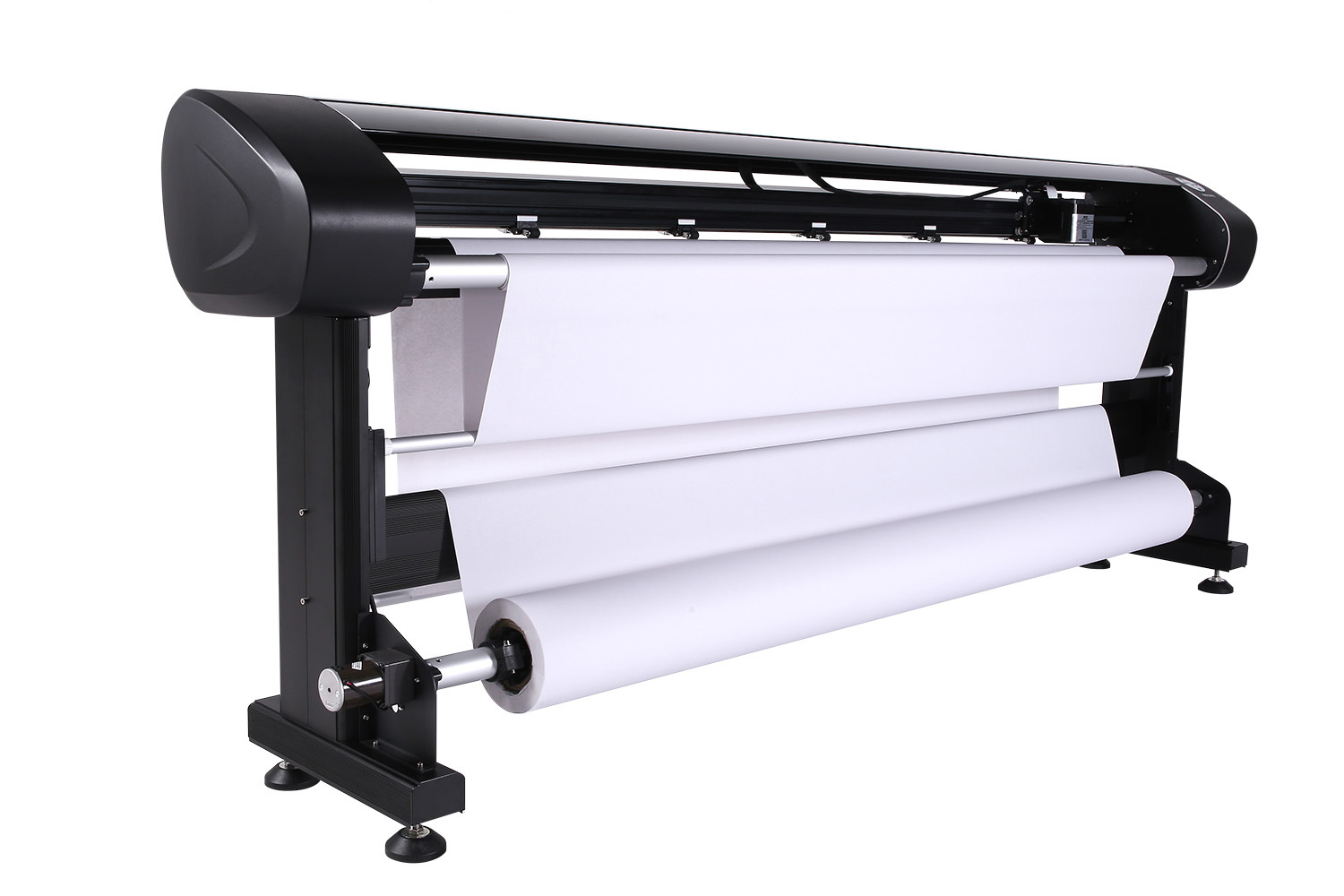

    Auto Function Clothing Plotter for Large Area CAD Drawing Machine Pattern Plotter CAD

    Product Overview

    Gemei Epson Ink Refillable High Speed Plotter

    The plotter machine is a graphic printing machine that can provide large-sized printouts.
    In the garment industry itself, the plotter machine is a large printer that is closely related to the use of garment software.
    Gemei Epson High Speed Plotter adopt Epson TX806 industrial-grade print head. Continuous refill ink system is very economically, the cost of consumable is extremely small.

    FEATURES AT A GLANCE
    Adopt Epson TX806 industrial-grade print head
    Aluminum alloy structure
    High-power feed motor
    Customized dual motors supported
    Automatic connected
    Several computers print on one plotter
    One computer control several plotters
    Line is clear
    Connect smoothly
    Right plotter
    Left plotter
    Front plotter
    PRODUCT SPECIFICATIONS
    Parameters
    Model #
    B-125-806
    B-165-806
    B-185-806
    B-205-806
    B-225-806
    B-245-806
    Plot width
    125CM
    165CM
    185CM
    205CM
    225CM
    245CM
    Paper width
    130CM
    170CM
    190CM
    210CM
    230CM
    250CM
    Plot speed
    90 square meters per hour
    File format
    HPGL language, compatible with various CAD software
    Cutting function
    Auto cutting after ploted one marker
    Resolution
    150-600DPI
    Print head type
    EpsonTX806
    Print head safety
    Inktruck reset automatic protection
    Ink tank
    with a capacity of 230 ML
    Line quality
    Clean, smoothly , and adjustable line thickness
    Clean print head
    Auto cleanning print head
    Load paper system
    Front loading, Maximum roll diameter 28 cm
    Feed paper system
    Hidden infrared precision paper system, accurate and efficient
    Take-up paper system
    take-up plotting mode or drop-on-floor plotting mode
    Paper
    White plotter paper 40-80 gsm, Kraft papper 80-250 gsm
    Interface
    Network
    Power supply
    220V/50Hz
    Panel
    Simple, convenient and durable
    Machine structure
    Aluminum alloy structure, high machine precision, long lifetime
    Software center
    Drive-free, fully automatic online, support multiple independent control
    PRODUCT CONFIGURATION

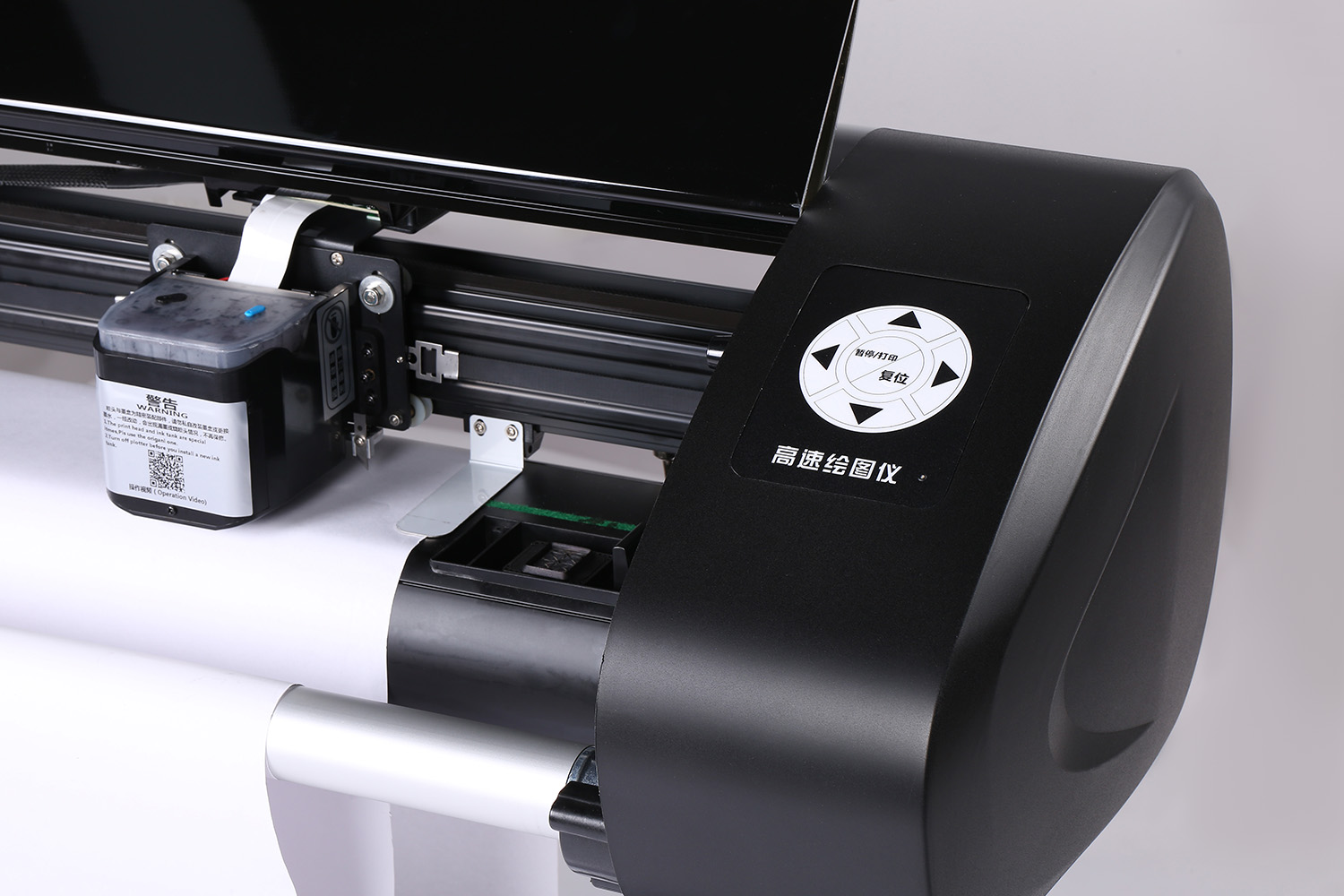

    Epson TX806 industrial-grade head
    Simple operation panel
    Aluminum alloy structure
    SALES AND SERVICE NETWORK
    Recommend Products
    Certifications
    FAQ
    1. Q: Are you a manufacturer?
    A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric
    cutter/graph plotter in this field for 10 years.
    2. Q: How do you pack these products?
    A: Usually packed in wooden case and can pack according to export standard or your requirement.
    3. Q: Is it customizable?
    A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
    4.Q: After-sales service
    A: Yes, professional after-sales team and 24-hour technical support by phone, email or wechat.
    5.Q: What is your lead time?
    A: Spot goods usually take 2-4 days, and customization takes 5-7 days.
