Ceramic Zirconia Oxide Milling Bowl/jars/ grinding set for ball
mill fritsch
The Zirconia oxide grinding sets have been developed especially for
extreme test conditions such as high sample throughput and high
mechanical stress. Features include.
- safe, non-slip attachment with integral safety devices on cover and
base
- gap between dish and cover edge for easy opening
- optimum sealing with O-ring
- protective jacket made from stainless steel (for agate, zirconium
oxide and tungsten carbide dishes)
- grinding set identification (article number, material and volume)
- marking field (e. g. for information about sample)
- available in 3 sizes and 5 materials
Disc Mills rapidly pulverize materials such as cement, cement
clinker, ceramics, coal, coke, concrete, corundum, glass, metal
oxides, minerals, ores, silicate, slag, soil, etc.
Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars,
60 times hardness of regular steel, highly wear-resistant and
resistant to acid and solvents. The grinding jars are extensively
applied on in the fields of Paint, Ink,Coating, Geology,
Metallurgy, Electronics, Construction Material, Ceramics, Chemical
Engineering, Light Industry, Medicine, Environmental Protection and
so on. Each jar set includes grinding jar, jar lid, rubber sealing
gasket and different sizes of mixed zirconium oxide grinding balls.
We have mass-produced various types of ball mill jars for Retsch
and Fristch from Germany brand.
Retsch grinding jar: 50ml,80ml,125ml zirconium oxdie, agate, tungsten carbide grinding
jar for Retsch planetary bal mill PM100,PM200,PM 400;
25ml,35ml,50ml zirconia oxide ,tungsten carbide jars for Retsch Mix
mill MM 500; 50ml,100ml,250ml and 500ml zirconia oxide and tungsten
carbide for Retsch vibratory disc ball mill RS200
Fritsch grinding jar: 250ml and 500ml zirconia,alumina,agate grinding jar for Fritsch
Planetary Mill PULVERISETTE 5/P6.
We have drawings for all the above models of equipment.
We have inventory of all the above ball mill jars. Just let us talk
more!
Just let us talk more! whatapp/wechat: +86 153 6787 4686
Technical indicators for Zirconia Ball mill jar
Composition (%) | Specific Gravity (G/CM3) | Bulk Density (Kg/L) | Capacity (ML) |
ZrO2: 95± 0.2 Y2O3: 5± 0.2 | ≥ 6.02 | ≥3.7 | 25,50,80,100,125,250, 500,1000,2000,3000 |
Dimesion for our regualar avaliable zirconia mill jar (offer OEM &
ODM Service)
| Zirconia oxide Jar Volume | OD (mm) | ID (mm) | Total Height (mm) |
| 25ml | 49 | 32 | 51 |
| 50ml | 55 | 38 | 67 |
| 100ml | 65 | 50 | 75 |
| 250ml | 92 | 74 | 88 |
| 500ml | 100 | 84 | 118 |
| 1000ml | 128 | 108 | 150 |
| 2.0L | 158 | 138 | 162 |
| 3.0L | 158 | 138 | 220 |
Note 1: Jar size of each patch will control tolerance ±0.1-0.2mm.
2:One set includes: jar + lid + rubber sealing gasket.
Choice of Grinding Jars & Grinding Balls
In order to prevent excessive abrasion, the hardness of the
grinding jars used and of
the grinding balls must be higher than that of the material used.
Normally, grinding jars
and grinding balls of the same material should be chosen.
| Recommendation For Matching Solutions About Mill Jars & Materials |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high
temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high
temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to
be protected under special atmosphere. | Vacuum mill jar |
| Matching Solutions for Mill Jars & Balls |
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
|
| Agate Mill jar | 1 | | | | |
| Alumina/Corundum Mill Jar | 2 | 1 | | 2 | |
| Stainless Steel Mill Jar | | | 1 | | |
| Zirconia Mill Jar | | 2 | | 1 | |
| Nylon Mill Jar | 2 | | | 1 | |
| PTFE Mill Jar | 1 | | | 2 | |
| Polyurethane Mill Jar | 1 | | | 2 | |
| Tungsten Carbide Mill Jar | | | | 2 | 1 |
| 1 means: most suitable , 2 means: suitable |
Features of Zirconium oxdie grinding jar:
1. High specific gravity, high efficiency
2. Highly wear resistant to acid and solvents
3. High cost-effective, low wear and long lifetime
4. Highly polished, smooth, easy to clean, low abrasion to the
equipment
5. High mechanical strength, good toughness, impact resistance, no
broken beads
6. Mainly used for lab planetary ball mill machines

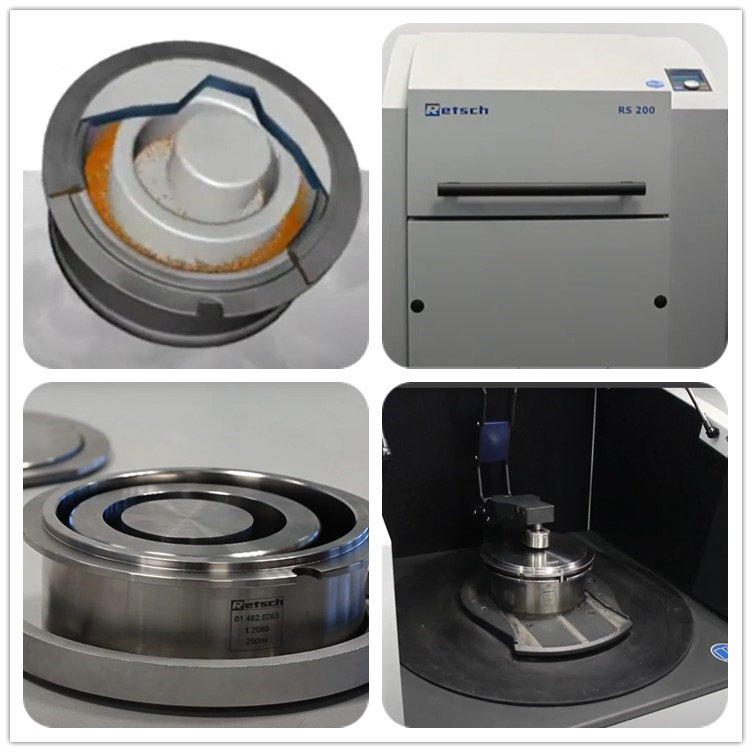

100cc zirconium oxide ball mill jar used for RETSCH VIBRATORY DISC
MILL
RS 200 and RS300
Application Fields:
Sample Room
