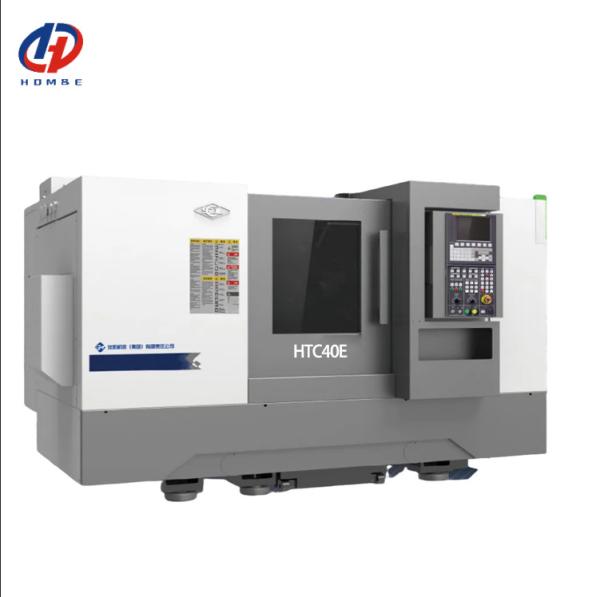

HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe

    Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers

    Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers
    • Buy cheap HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe from wholesalers

    HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe

    Ask Lasest Price
    Brand Name : SMTCL
    Model Number : HTC40E
    Certification : CE ISO certification
    Payment Terms : T/T, L/C,, Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    HTC40E High Precision CNC Horizontal Lathe 30 Degree Slant Bed CNC Turning Lathe

    Product Description:

    HTC40E Series 30 Degree Slant Bed CNC Lathe
    High cost-performance ratio,Sliding rail power upgrade, "high", "large", "on", from the inherent strength. Integral high rigidity spindle, integral inclined bed, hardened sliding guide rail, guide rail tail seat. HTC 40E horizontal CNC lathe is suitable for processing all kinds of shaft and disk parts, effectively filling the processing needs of football cage, automobile mandrels, motor gear shaft, valve tappet and other parts.

    Product Features:

    1,High rigidity

    Rigidity is raised by 50% throughenlargement of bearing, increase of spindlespan, shortening of belt pulley overhangand new sliding tailstock structure.

    2,Low malfunction rate
    The machine tool adopts modularizeddesign for enhancement of overall stability,and reduces malfunction rate by 55% incomparison with the last generation ofproducts.
    3,Low loss
    Human - oriented design an dreasonable layout reduce loss ratesuch as tool (cutter), oil product andelectricity consumption by 11%.
    Product Details:
    Overall sleeve spindle
    The product features single-spindle headstock, adopts overallspindle unit, reduces power lossof mechanical transmission, andfeatures fast and stable startup,low temperature rise, smallthermal deformation and highaccuracy.
    Overall tilting machine tool bed
    HTC40E adopts integral bed of 30 ° angle of obliquity,so that force bearing ismore stable during cuttingoperation. Bed materialadopts high density castiron, and features highstrength and good shockabsorption.
    Servo tool post The product adopts servomotor driving for indexing,features high accuracy andhigh reliability and is able tomeet the requirements onhigh performance and fasttool change.
    Guide rail tailstock
    HTC40E tailstock is configuredwith sliding guide railintegrated with machine toolbed, telescoping sleeve andmanual locking and featuresgood rigidity.
    2-axis feeding X-axis and Z-axis adopt servomotor for driving, directcoupling with ball lead screwis realized through elastic shaftcoupling, guide rail of twoaxes adopt rolling guide rail,so that machining precision,rapid traverse speed andproduction efficiency have beensubstantially enhanced.
    lntegrated spindle encoder The special spindle encoderhas cancelled synchronousbelt drive mechanism sothat malfunction rate hasbeen effectively reduced.

    Industry application:

    1,Outer ball cage, inner ball cage, rotor shaft, differential housing,

    2,Tooth shaft, camshaft, turbocharger rotor shaft, half shaft,
    3,Plate roller, piston rod, cross shaft, steering shaft.
    Product Paramenters:

    Product Paramenters:

    Items
    Units
    HTC40E/300
    HTC40E/500
    Length specification
    mm
    300
    500
    Maximum swing diameter over bed
    mm
    Φ500
    Φ500
    Maximum cutting length
    mm
    300
    500
    Maximum cutting diameter
    mm
    Φ360
    Φ360
    Maximum swing diameter over cross slide
    mm
    Φ320
    Φ320
    Spindle nose type and code
    -
    A2-6
    A2-6
    Spindle bore diameter
    mm
    Φ65
    Φ65
    Maximum bar stock passing diameter
    mm
    Φ50
    Φ50
    Headstock
    Spindle speed range
    r/min
    50-4500
    50-4500
    Maximum output torque of spindle
    Nm
    177
    177
    30 minutes / continuous
    kW
    15/11
    15/11
    Chuck
    Chuck diameter/type
    inch
    8"
    8"
    X-axis rapid traverse speed (rolling guide rail)
    m/min
    30
    30
    Z-axis rapid traverse speed (rolling guide rail)
    m/min
    30
    30
    X-axis travel
    mm
    200
    200
    Z-axis travel
    mm
    320
    550
    Standard tool post type
    Tool size
    Horizontal 8-position
    Cylindrical turning tool
    mm
    25×25
    Boring tool bar diameter
    mm
    Φ40/Φ32/Φ25/Φ20
    Whether cutter head is able to select cutter handily
    -
    yes
    Maximum load capacity
    Disc workpieces
    kg
    200
    Shaft workpieces
    kg
    500
    Machine weight
    kg
    3400
    3650
    Overall dimension (L*W*H)
    mm
    2700*1900*2100
    3570*1860*1850

    OUR Service:

    Ensure you receive a high quality machine
    1. Every parts need be inspected
    2. Over 100 production process control
    3. Over 200 inspection items
    4. Sample processing of each machine
    5. 72 hours trial run before delivery

    Why Choose Us:
    ◆ Top quality sense, customers' requests come first
    ◆ 30 years + R & D history, the company was founded in 1993
    ◆ High-tech manufacturer with research anddesign capacity
    ◆ Stable and mature supplying system
    ◆ Young active sales and engineers for instant services(24 hours online)
    ◆ Upgrading on mechanism according to ergonomics and easy maintenance
    ◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
    About Us:
    Welcome to visit us!
    Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
    Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
    Our Factory:

    FAQ:

    Q1. Are you a trade company or manufacturing company?

    We are a manufacturing company.
    Q2. What's your main products of your company?
    We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
    Q3. Can you provide customized machine or SPM (Special purpose machine)?
    Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
    Q4: What's your warranty terms?
    We will supply a replacement for parts that prove to be defective for a period of 12 months,
    starting on the machine's bill of lading date.
    Q5. What is the services?
    Pr-sales:Customized solutions, planning and design;One-to-one service
    After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
    Q6: Why choose your company?
    Products from the development, design, manufacture, assembly of the entire production process are
    carried out between plants with a complete production chain which is your most reliable guarantee.
    Q7: Can your company send the technical personnel to our company and direct our workers overseas?
    We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
    Q8: What's the Payment Terms?
    T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
