    Metal Processing CNC Lathe Machine Ck0660 Gang Type Tool Holder Hydraulic Chuck Collect

    Ask Lasest Price
    Brand Name : Luyoung
    Model Number : ck0660
    Certification : CE
    Price : 5600-5900
    Payment Terms : T/T
    Supply Ability : 100sets
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Metal Processing CNC Lathe Machine Ck0660 Gang Type Tool Holder Hydraulic Chuck Collect

    Metal processing CNC lathe machine ck0660 gang type tool holder hydraulic chuck collect

    High quality CK0640 CNC lathe Metal processing lathe Horizontal lathe with high rigidity Factory price CNC machines Light duty lathe for metal is widely used in processing and manufacturing the electrical appliance, instrument industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.



    CK0640
    ItemParameterUnitCK0660 CNC LATHE
    CapacityMax.swing over bedmmΦ300
    Max.swing over cross slidemmΦ130
    Max.work piece lengthmm240
    Spindlespindle speedrpm50-2500
    Spindle boremm60

    Fast feeding

    speed

    X-axis Fast feeding speedm/min6
    Z--axis Fast feeding speedm/min8
    Axis strokeX-axis travel stroke(mm)mm200
    Z--axis travel stroke(mm)mm/
    PowerMain motor powerKW3
    ClampingType/Pneumatic collect
    Thread machining scopeMetric system(mm)mm0.25~12
    British system28~3 1/2
    Tail stockTail stock sleeve dia.mm/
    Tail stock sleeve travelmm/
    Tail stock sleeve taper/
    Dimensionlength× width × highmm1550×920×1450
    WeightNet weightKG850
    Standard configurationOption configuration
    GSK928TD-LSiemens, Fanuc cnc controller
    Pneumatic spring collect (2pcs free)Pneumatic chuck,Hydraulic chuck

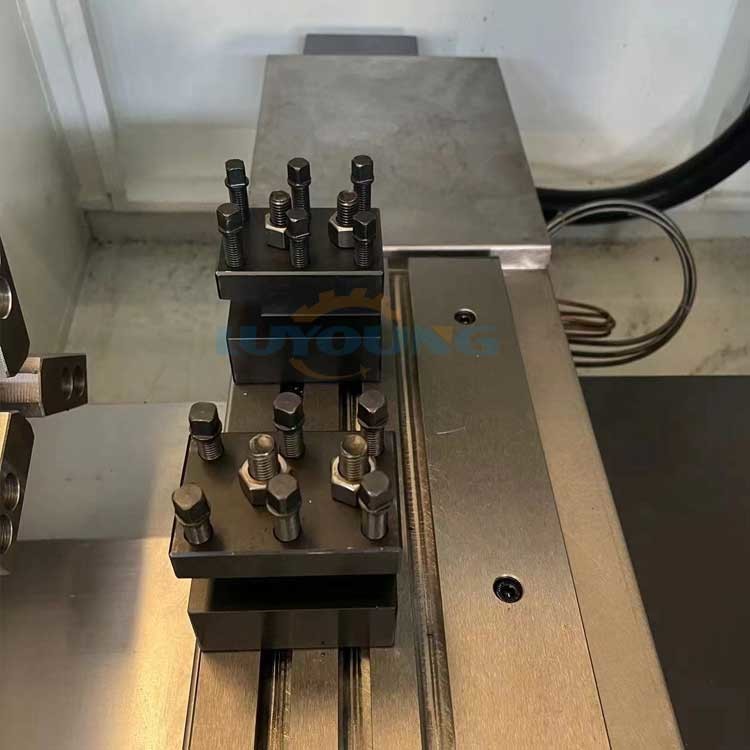

    Gang type tool carrier4 station electrical tool holder
    Auto lubrication systemAuto feeder system
    Lighting systemTail stock
    cooling system
    380V 3 phase;if your local have special request pls let us know

    Product Features: High quality CK0660 CNC lathe Metal processing lathe Horizontal lathe with high rigidity Factory price CNC machines Light duty
    lathe for metal


    1. This machine has a high strength with widening the carriage, most suitable for metal cutting.
    2. High precision bearings, which are adopted for the spindle to realize the high accuracy and load capacity.

    3. The machine main drive adopts imported inverter variable speed motor to realize infinitely variable speed.

    4. Standard configuration: spring chuck and chuck double use.

    5. Optional configuration: hydraulic chuck, gang type tool post.
    Optional auto bar feeder:
