Product Description
1, PVC or Silicone led rope extruder Applications :
The pvc/ Silicone light rope extruder equipment line purpose:
It is suitable for the extrusion production of various light rope
products such as floor heating line, carbon fiber heating line,
carbon fiber silica gel heating line, etc.
2, Main components of PVC light extruder / electric floor heating
cable equipment:
Pay off rack ----- copper wire straightening table ----- copper
wire preheater ----- extruder host ----- head vacuum machine,
hopper dryer and automatic suction machine ----- caliper -----
printer ----- 16m horizontal oven ----- electric control box -----
double wheel extractor ----- meter counter ----- horizontal tension
wire storage rack ----- spark machine ----- double shaft take-up
machine
3, PVC Light/ Silicone light extruder equipment main brand
accessories:
Motor: Siemens motor
Frequency converter: Emerson frequency converter
Temperature control meter: Japanese RKC temperature control meter
PID intelligent
Electrical appliances: Taiwanese brands Shilin, Ruisheng, Tiande,
Yangming, etc
Screw barrel: material gh-113, p
Technical Specification: | UT65 | UT80 | DL90 |
| Finished hose diameter | 1.2-8mm | 2.0-16mm | 5-30mm |
| Line speed (max.) | 150m/min | 150m/min | 150m/min |
| Extrusion output (max.) | 150 kg/h | 200kg/h | 280kg/h |
| L/D | 12:1 | 12:1 | 12:1 |
| Extruder power | 11KW | 22KW | 30KW |
| Curing length | 16m | 24m | 24m |
| Payoff reel | PN400-630 | PN500-1000 | PN800-1250 |
| Capstan power | 2.2KW | 5.5KW | 7.5KW |
| Take-up reel | PN400-630 | PN500-1000 | PN800-1250 |
Technical parameter:

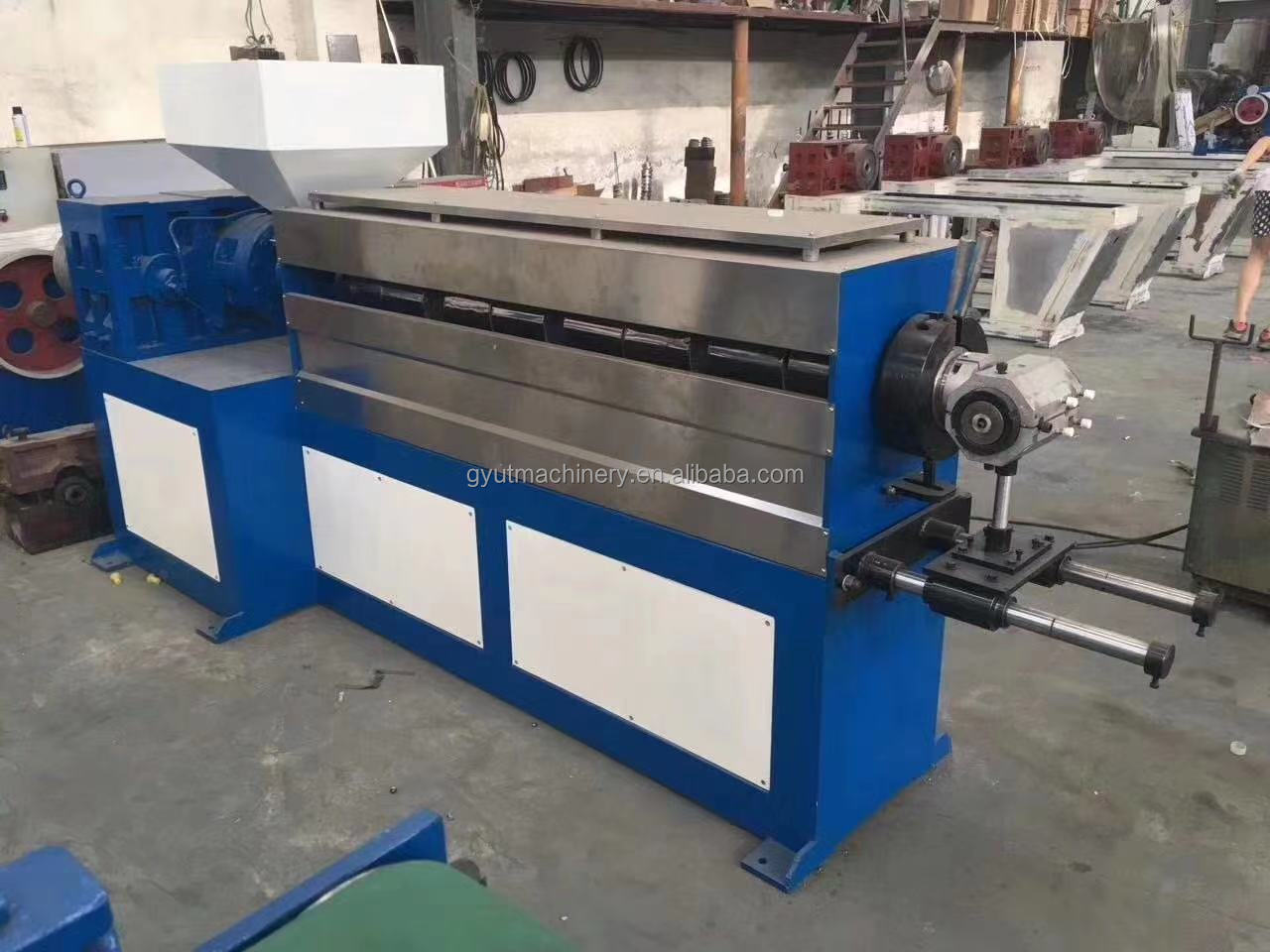

LED Strip PVC/ Silicone Extrusion Machine: 1 Units (70mm)
ITEM | SPEC |
Screw Diameter | 65mm |
Screw and Shell Material | 38CrMoAl |
Compression Ratio | 12:1 |
Thread Specification | Linear thread, not equal to the same distance |
Gearbox | Special designed gearbox for silicone extruder |
Motor | High Efficiency Variable Frequency Motor |
Frequency Converter | High performance vector converter |
Maximum Extrusion | 150KG/H |
Power | 18.5kw |
Rotating Speed | 50rpm Max |
Dimension | 1500*700*1250mm |
(1) Tightness pay-off frame.
(2) Plastic light rope extruder: 15kw frequency motor,
heating-apparatus, extruder head, mold
(3) Plastic drying apparatus(heating power4.5kw,drying power0.25kw)
(4) Auto-feeding apparatus(900w,lift 4m)
(5) Heating control cupboard
(6) Cooling channel 8m, circulating water pump.
(7) Level frame
(8) Blower machine.
(9) Printer machine.
(10) Double wheel hauling and reeling machine
Packaging & Shipping
Shipping and packing:
1.Waterproof packing with the international export standard by
20ft, 40ft, 40hp
container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be
packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
Our Services
Pre-sale:
1. Suggest to client suitable Bare wire diameter, final product
capacity.
2. Introduce machine's structure and features in detail, explain
the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to
client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you
can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site
for installation instruction.
