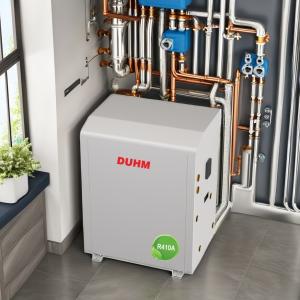

100kw Water Ground Source Heat Pump With Wide Application Range And R410A Refrigerant

100kw Water Ground Source Heat Pump with Wide Application Range and R410A Refrigerant

Model						WBC-19.5H-B-S(KE-BB)	WBC-22.0H-B-S(KE-BB)	WBC-31.0H-B-S(KE-BB)	WBC-39.5H-B-S(KE-BB)
Horse					(P)	5	6	8	10
Heating Condition : Water: 15-10°C Out 40-45°C	Heating Capacity			KW	19.8	22.8	31.7	39.6
		Heating Power Input			KW	4.4	5.1	7.0	8.8
		Currency			A	7.87	9.05	12.59	15.74
		COP			W/W	4.5	4.5	4.5	4.5
Cooling Condition: W30-35°C Out W12-7°C	Cooling Capacity			KW	15.3	17.5	24.4	30.5
		Heating Power Input			KW	4.0	4.6	6.4	8.0
		Currency			A	7.2	8.3	11.5	14.3
		EER			W/W	3.8	3.8	3.8	3.8
Max. Power Input					KW	6.6	7.6	10.6	13.2
Max Currency					A	11.8	13.6	18.9	23.6
Power Supply					V/PH/HZ	380V/3PH/50HZ
Circulating Water Flow					m³/h	3.4	3.9	5.4	6.8
Operating Ambient Temperature (℃)					°C	10~45
Water Pressure Drop (max.)					Kpa	20	20	30	40
Rated Outlet Water Temperature /Cooling					°C	45/7
Max Outlet Water Temperature /Min. Outlet Water Temperature					°C	60/5
Pipework Size					inch	4*G1"	4*G1"	4*G1.5"	4*G1.5"
QTY of Water Pump					Set	0	0	0	0
QTY of Comperssor					Set	1	1	1	1
QTY of Fans					Set	0	0	0	0
Refrigerant / Qty					kg	R410a/3kg	R410a/4kg	R410a/5kg	R410a/6kg
Noise					dB(A)	46	46	56	56
Unit Dimension			L / W / H	mm	720*570*920	720*570*920	905*670*1000	905*670*1000
Shipping Dimension			L / W / H	mm	760*595*1035	760*595*1035	940*695*1115	940*695*1115
Net Weight /Gross Weight					kg	130/140	130/140	205/215	205/215

Model						WBC-45.0H-B-S(KE-BB)	WBC-100.0H-B-S(KE-BB)	WBC-160.0H-B-S(KE-BB)
Horse					(P)	12	25	40
Heating Condition : Water: 15-10°C Out 40-45°C	Heating Capacity			KW	45.8	100.0	160.8
		Heating Power Input			KW	10.2	22.2	35.7
		Currency			A	18.21	39.75	63.92
		COP			W/W	4.5	4.5	4.5
Cooling Condition: W30-35°C Out W12-7°C	Cooling Capacity			KW	36.6	73.2	117.1
		Heating Power Input			KW	9.6	19.3	30.8
		Currency			A	17.2	34.5	55.1
		EER			W/W	3.8	3.8	3.8
Max. Power Input					KW	15.3	33.3	53.6
Max Currency					A	27.3	59.6	95.9
Power Supply					V/PH/HZ	380V/3PH/50HZ
Circulating Water Flow					m³/h	7.9	17.2	27.5
Operating Ambient Temperature (℃)					°C	10~45
Water Pressure Drop (max.)					Kpa	40	50	60
Rated Outlet Water Temperature /Cooling					°C	45/7
Max Outlet Water Temperature /Min. Outlet Water Temperature					°C	60/5
Pipework Size					inch	4*G1.5"	4*G2.5"	4*DN80
QTY of Water Pump					Set	0	0	0
QTY of Comperssor					Set	1	1	4
QTY of Fans					Set	0	0	0
Refrigerant / Qty					kg	R410a/6.5kg	R410a/8kg	R410a/5.5kg*4
Noise					dB(A)	56	56	62
Unit Dimension			L / W / H	mm	905*670*1000	1300*1100*1270	1860*900*1490
Shipping Dimension			L / W / H	mm	940*695*1115	1335*1120*1385	1895*920*1605
Net Weight /Gross Weight					kg	215/225	385/420	825/840

Guangdong Wotech Renewable Energy & Technology Co., Ltd.(hereinafter referred to as Wotech) was founded in 2005, integrating research and development, manufacturing, marketing, and after-sales service of heat pumps.

At present, Wotech has three production bases in Shunde, Zhaoqing and Heyuan, Covering covering 25, 000 square meters. With state-of-the-art automated production lines, and a modern and spacious office complex with its very own testing laboratories, making Wotech one of the most advanced air source heat pump suppliers in China. Through comprehensive planning and persistent study over the past 19 years, Wotech is awarded as one of the top 10 heat pump leading brands in China and the top 10 Chinese exporters to more than 60 countries overseas.

Wotech has a perfect process in customer service and pays excellent attention to details. Wotech is specialized in OEM/ODM projects, designing tailored air source heat pump products for various high-end markets. Moreover, in order to satisfy more and more complex and demanding markets, customized solutions for residential and commercial swimming pool heating, house heating/cooling, and hot water combined systems can be made to our partners for intelligent applications.

Wotech, with many years of heat pump export experience, sets up a top international quality control system to achieve the belief of making the best quality heat pumps for global users.


FOSHAN SHUNDE HUAMING RENEWABLE ENERGY&TECHNOLOGY CO.,LTD. (hereinafter referred to as DUHM) is a subsidiary of Wotech, which was founded in 2011.

In 2015, Wotech completed shareholding reform and became the 1st heat pump public company in 2016, with stock code 835751.

In 2019, Wotech laboratory is accredited CNAS (China National Accreditation Service for Conformity Assessment) and awarded as the "Leading Brand of Heat Pump" by the Chinese Heat Pump Association.

In 2022, Wotech is Certified for PED ( The Pressure Equipment Directive, ESRs), which is compulsory certification for heat pumps in EU market.

We leverage renewable energy and cutting-edge intelligent technologies to deliver efficient solutions, working towards a sustainable future for all.
