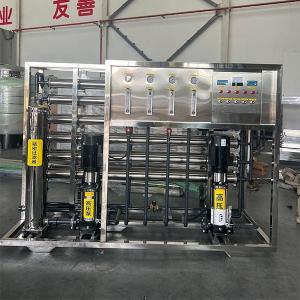

0.5 tons double stage reverse osmosis (RO) water treatment equipment
Equipment composition
It mainly includes pre-treatment system, first-stage reverse
osmosis system, second-stage reverse osmosis system, post-treatment
system and control system
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Working principle
Two-stage reverse osmosis equipment is an efficient water treatment
equipment, which removes impurities such as dissolved salts,
organic matter, bacteria and viruses in water through the
combination of two-stage reverse osmosis membranes, so as to
achieve high purity water quality. This equipment is especially
suitable for occasions where high quality pure water is needed,
such as industrial production, pharmaceutical manufacturing, food
and beverage processing and other fields.
Technical characteristics
Efficient purification: Through the filtration of the two-stage
reverse osmosis membrane, it can effectively remove ions, organic
matter, microorganisms and other impurities in the water.
Stable water quality: The water quality is stable and will not
fluctuate greatly due to the change of raw water quality.
Energy saving and environmental protection: The use of advanced
energy-saving technology, effectively reduce the energy consumption
and operating costs of equipment, while generating less waste
water.
advantage
Efficient purification: The combination of two-stage reverse
osmosis membranes can more effectively remove various impurities
and harmful substances in water.
Energy saving and environmental protection: Reduce energy
consumption and water waste by optimizing the reverse osmosis
process and control system.
,
Packaging and transportation
FAQ
1.Material of reverse osmosis system?
Support customization, You can choose FRP(fiber glass) filters with U-PVC pipe, stainless
steel filters with U-PVC pipe or full stainless steel.
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for
shipment. After you receive machine, you only need to open wooden
case to pick up machine.
3. What is the daily maintenance of water treatment equipment?
Periodically check the running status of each component of the
device. Clean and replace filter elements, membrane components and
other consumable products. Keep the area around equipment clean and
dry. Record device running data to discover and solve problems in
time.
4. How to extend the service life of water treatment equipment?
Choose high quality equipment and accessories. Operate and maintain
the equipment in strict accordance with the manual. Regular
professional maintenance and maintenance services. Avoid equipment
overload for a long time.
5.How can I pay you?
After we confirmed order, I will send you sales contract with our
company bank information. You can transfer money to our company
bank account by T/T. Or you can pay via Western Union with credit
card, Smartcard or Visa Card.Or do L/C if it is accepted by both of
us .
If you still don't know how to pay, just call me at+86
18203685329(whatsapp no.)
