Enhance Slope Protection with Slipform Paver s Cement Construction
Usage conditions:
1. Road construction
- Highway: Sliding formwork construction of cement structures such as
curbstones and side ditches used for highways can improve
construction efficiency and quality.
- Urban roads: play a role in the construction of sidewalks, non motorized
vehicle lanes, and median strips on urban roads, shaping regular
road boundaries.
2. Water conservancy engineering
- Channel lining: It can be used for concrete lining construction of irrigation
channels and drainage channels to ensure the sealing and stability
of the channels.
- Embankment slope protection: Cement sliding formwork construction is carried out on the slope
surface of the embankment to enhance the anti erosion ability of
the slope protection.
3. Airport construction
- Runway edge: Provide precise cement molding for the edge of airport runways to
ensure flight safety.
4. Municipal engineering
- Park Trail: Create a cement trail within the park that is both aesthetically
pleasing and durable.
- Parking lot: used for the construction of parking lot edges and dividers.
Features:
1. Wide operating vision,good operating experience
The components on the operating platfom are integrated into the
humanized design concept,the layout logic is clear, the operator
only needs a glance to determine the position of the functional
devices,and the control response is rapid.
2. Efficient engine energy saving system
ECO energy saving mode automatically matches the optimal working
state according to the working condition of the machine,saving
energy and reducing exhaust emissions.
3. Highefficiency vibration compaction system
Using WYCO square shell vibrator,highcompacting efficiency,stable
and reliable performance.The load with high stable output flow of
Hedforth is equipped with compensation type manual speed regulating
valve,and the frequency regulation of vibrator rodis smooth,stable
and reliable.Standardequipped with 8 vibration oil road, according
to the need to expand 2 vibration oil road,to meet the larger
section of the structure of the paving requirements.
4. Flexible crawler post position
The crawler column is arranged in the first two and the second one.
The two front crawler columns can be rotated with swing arms, or
can be mechanically widened to achieve bias, and the rear crawler
columns can be freely biased, improving the flexibility of the mold
position.
5.Excellent performance steering modes
It has a variety of steering modes, such as forward steering, crab
steering, cooperative steering and spot steering, which improves
the maneuverability of the machine.
6.Track slewing device with large Angle
The track steering is driven by the large-angle rotary device, and
the steering Angle is up to ±130°. The positioning before
construction is more efficient and the transition is more agile.
7.Low speed and smooth walking system
Adopt high speed ratio reducer and high quality international brand
hydraulic motor, driving force is strong, low speed paving walking
smoothly, to meet the requirements of large section structure low
speed paving.
8.High quality servo valve control column lifting
Choose international brand servo valve to drive the column lifting,
lifting cylinder quick response, smooth action, excellent flatness
control.
9.Convenient transportation concept
The unit is compact and the roof can be electrically folded for
more economical truck transport.
Technical Parameters:
No. | Project | Unit | Parameter |
Basic performance parameters |
1 | Max paving width | cm | 300 |
2 | Max paving height | cm | 180 |
3 | Work speed | m/min | 0～10 |
4 | Driving speed | km/h | 0～2 |
5 | Theoretical productivity | m3/h | 90 |
6 | hopper capacity | m3 | 2～10(Depends on the width of the mold) |
7 | Climbing ability | ％ | ≥20 |
8 | Diesel tank | L | 230+120(optional) |
9 | Water tank | L | 500 |
10 | Hydraulic oil tank | L | 300 |
Engine performance parameters |
11 | Engine model | / | Shangchai SC4H160.5G4 |
12 | Engine power | kW r/min | 118Kw/2200 |
13 | Engine type | / | 4-cylinder water-cooled |
14 | Emission standard | / | stage 4(stage 3 is optional) |
Size parameters |
15 |
Dimensions (L x W x H)
| mm | 7000×3550×3600 |
16 |
Transport (L x W x H)
| mm | 7000×2250×2860 |
17 | Track (L x W x H) | cm | 163x30x63 |
Weight parameters of the whole machine |
18 | Weight | kg | 15000 |
Homework performance parameters - feeding |
22 | Spiral device speed | r/min | 0～70 |
23 | Spiral diameter | cm | 42 |
24 | Belt device speed | r/min | 0～100 |
Homework Performance Parameters - Mold |
25 | Number of molds | pcs | 1 |
26 | Construction form | / | Left side paving(optional) |
Performance parameters for homework - vibration compaction |
28 | Vibration rod frequency | Hz | 0～167 |
32 | Number of vibrator | pcs | 5 |
Homework Performance Parameters - Cleaning |
33 | Cleaning form | / | High pressure cleaning |
34 | Cleaning pressure | Mpa | 7 |
Hydraulic system |
35 | Quantity of hydraulic pumps | pcs | 2 |
36 | Hydraulic oil cooling | / | Large size radiator, forced air cooling |
37 | Maximum filtering accuracy | / | 10μm |

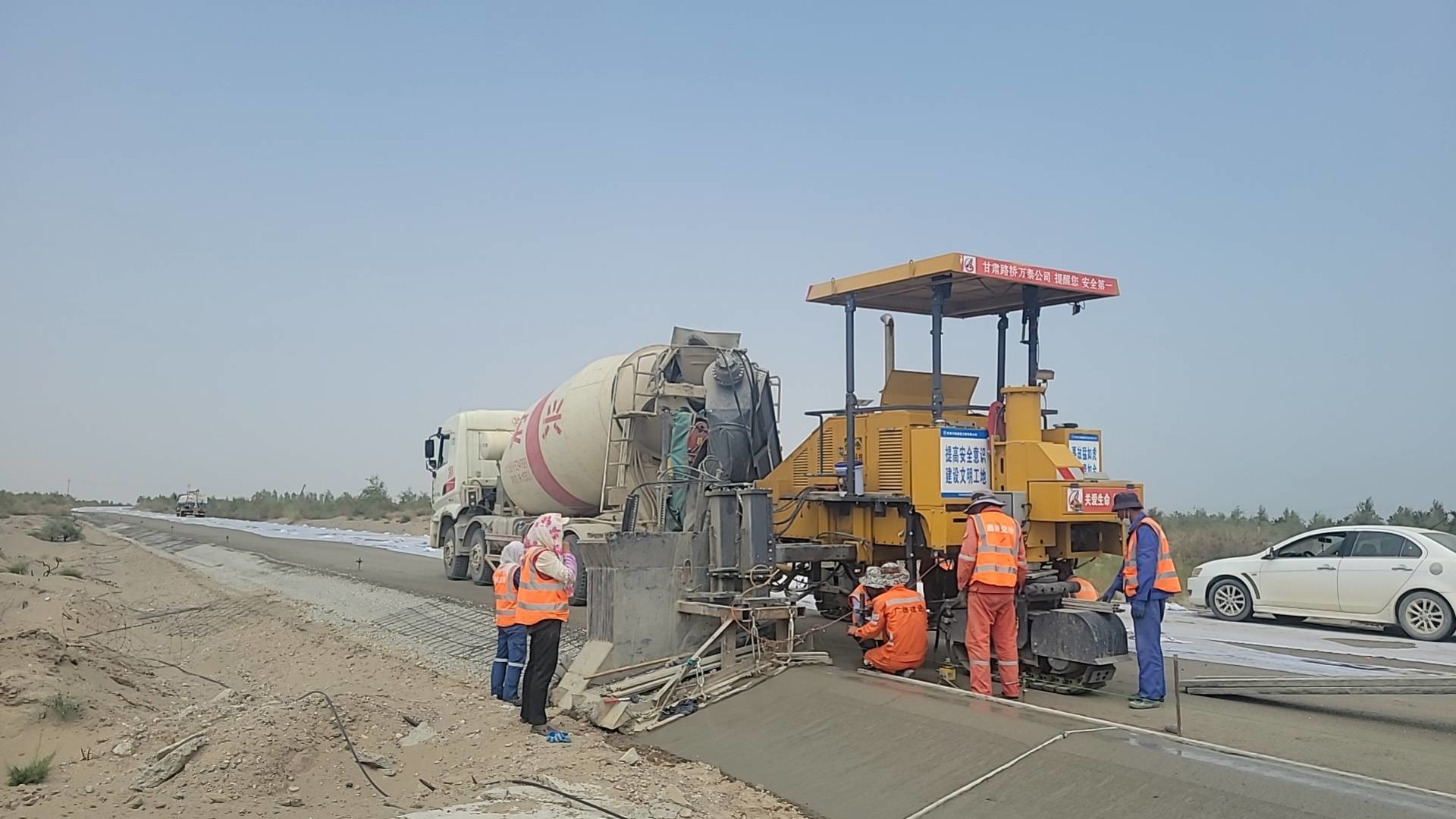

Construction case:
