    SUTO S520 Portable Dew Point Meter For Compressed Air And Gases

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : S520
    Certification : CE, ISO13485, ISO9001
    Payment Terms : D/A, D/P, T/T
    Supply Ability : 1000 set/month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

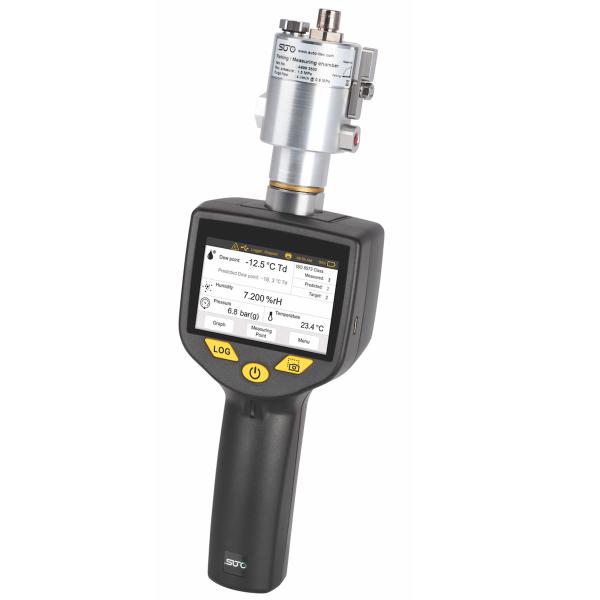

    SUTO S520 Portable Dew Point Meter For Compressed Air And Gases

    S520 Portable Dew Point Meter for Compressed Air and Gases (-100~+20°CTd / -60~+50 °CTd)
    OVERVIEW
    The S520 Portable Dew Point Meter offers users a single hand-held unit to easily perform on-site measurements in compressed air and gas systems. With its state-of-the-art dew point technology, the S520 provides dew point monitoring at the point-of-use. The first steps toward maintaining high standard compressed air quality and purity conditions.
    FEATURES

    · Unique Triple-Sensor System

    With the combination of a QCM and a Polymer sensor in a single unit, the user can measure the dew point in a range from -100 °C Td up to +20 °C Td. without having any drawbacks in terms of accuracy. The integrated pressure sensor allows converting the measured value into any humidity value needed, for example ppm(v) or atmospheric dew point.

    · Dew Point Value Prediction

    The S520 Portable Dew Point Meter includes an innovative dew point end value prediction algorithm, which anticipates the final value based on the measurement curve, allowing users to predict it quickly. This feature saves time for on-site engineers, enabling faster dew point audits, and is part of the device’s smart features.

    · Optional Smart Features

    Dew point end value prediction is one of the smart features. Users can also access a 5-megapixel camera and snapshot function for rapid measurement logging, all controllable via touchscreen input for added convenience.

    · PDF Report Function according to ISO 8573-1

    The S520 allows users to generate ISO 8573-1 standard-compliant PDF reports on-site, with options to input customer and service provider details for comprehensive audits. Reports can be created from any device recordings and swiftly copied to a connected USB drive. The device’s integrated pressure sensor ensures accurate measurements under actual conditions, meeting ISO standards.


    APPLICATION SCENES
    • ISO 8573-1 dew point audits
    • Fast and convenient dew point checks
    • Check drier performance
    • Humidity checks at the point of use
    • Measure absolute humidity in units like ppm or mg/m3
    SPECIFICATION

    MEASUREMENT

    Dew point
    Accuracy± 1 °C Td (0 ... 20°C Td)
    ± 2 °C Td (-70 ... 0 / +20 … +50°C Td)
    ± 3 °C Td (-100 ... -70°C Td)
    Selectable units%rH, °C Td, g/m³, mg/m³, g/m³ atm. ,mg/m³ atm. , ppmv, g/kg, °C Td atm.
    Measuring rangeSensor A: -100 ... +20°C Td
    Sensor B: -60 ... +50°C Td
    Repeatability0.5 °C
    SensorSensor A: QCM + Polymer
    Sensor B: Polymer
    Pressure
    Accuracy0.5 % FS
    Measuring range0 ... 1.5 MPa (g)
    SensorPiezo resistive sensor
    Temperature
    Accuracy± 0.3 °C
    Measuring range-30 ... +50 °C
    SensorPT 100

    SIGNAL INTERFACE & SUPPLY

    Supply
    Power supplyUSB charger: 5 V, 3 A
    Connector: USB-C
    Operating time8h
    Data interface
    ConnectionUSB

    GENERAL DATA

    Display
    Integrated3.5” color LCD touch screen
    Data Logger
    StorageIntegrated mass storage, up to 30 million recorded data sets (4 channels each)
    Material
    HousingPC + ABS
    Metal partsAluminium
    Miscellaneous
    Protection classIP30
    ApprovalsCE
    Weight2.7 kg complete set in transport case
    Operating conditions
    MediumAir, N2, O2, Argon, CO2
    Note: The CO2 measurements with
    the A1371 sensor are limited to
    -40 °C Td.
    Medium temperature-30 ... +50 °C
    Medium humidity0 ... 90 %, no condensation
    Operating pressure-0.1 ... 1.6 MPa (g)*
    Ambient temperature0 ... +40 °C
    Ambient humidity0 ... 80 % rH
    Storage temperature-20 ... +50 °C
    Transport temperature-30 ... 70 °C
    * At least 0.3 MPa(g) is needed for the measuring chamber supplied
    with the instrument. For low-pressure measurements below
    0.3 MPa (g) choose the optional bypass measuring chamber
    A699 3501.
