Brand Name : | XQD |
Model Number : | XQD-S30 |
Certification : | CE, RoHS, FCC |
Price : | $0.40 - $0.70/pieces |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 50000PCS/Day |
Delivery Time : | 10 work days |

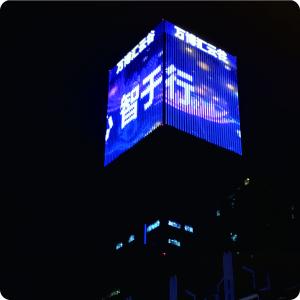

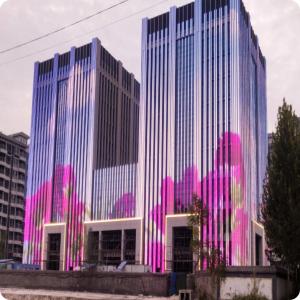

RGB LED pixel light led display control led pixel light use for building
Product basic parameters | Product protection parameters | |||
Model | XQD-S30-RGBW | Waterproof grade | IP65 | |
size | Φ29.96*14mm | Flame retardant | V-0 | |
Application environment | Indoor and outdoor | UV resistance level | 4 | |
Product unit weight | about 19g | Salt spray test | Salt spray resistance | |
Shell material | PC | Impact resistance | IK10 | |
Maximum number of connections | 100PCS/string | Electrical safety grade | Ⅲ class | |
Center distance | min 6CM | Safety certification | CE FCC RoHS | |
Average lifespan | 50000 hours | Operating temperature | -40℃-55℃ | |
Optional accessories | Aluminum groove, wire clips | Product electrical parameters | ||
Wire core | 2x0.75mm2+3x0.3mm2 | Working voltage | DC12V | |
Wire material | PVC | Rated power | 0.96W | |
PCB material | FR-4 glass fiber board | Control system | DMX512 | |
Product optical parameters | Power system | DC12V constant voltage | ||
LED color | RGB | |||
Luminous angle | 120° | Luminous flux of pixel point | 29.61lm | |
Color Resolution | 3*16bit | Luminous brightness | 11.4cd | |
Lamp beads | SMD3535*3LED+1 |
Company Introduction
ShenZhen XinQiDan Optoelectronic CO.,LTD. Provide a variety of LED point light source products, and focus on
providing customized services.
They have a professional technical team, according to the specific
needs of customers tailored to meet their application scenarios of
light products.In customized services, XQD not only focuses on the
performance and quality of products, but also focuses on meeting
the individual needs of customers.
![]() |
