Product Description:

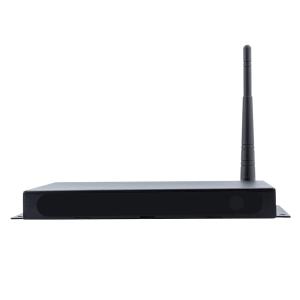

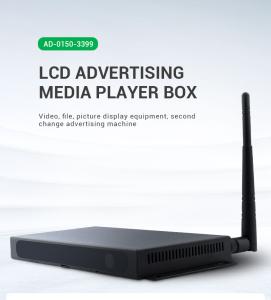

Your Best Android RK3588 Media Player Box
| Model | AD-0160 (RK3588)
RK3588 Edge Computing Device |
| Trade | SUNCHIP, ADW |
| Product Type | Edge computing device |
| Product Description | Industrial player box |
| Date | 2023.11.15 |
Technical Parameters:
| System | CPU | RK3588 8-core CPU 8nm process 4 Cortex-A76 and 4 Cortex-A55 |
| GPU | ARM Mali G610 MP4 GPU |
| NPU | INT4/INT8/INT16/FP16 mixed computing capability with up to 6TOPs of
computing power (INT8) |
| RAM | 8GB/16G (optional) |
| ROM | 32GB/64GB/128GB/256GB (optional) |
| OS | Android 12 |
| Motherboard Interface | TYPE_C | Standard Type_c*1 |
| DC holder*1 | Front 5.5/2.5mm |
| DC terminal input interface*1 | 4PIN pitch 3.81 terminal power input port*1 |
| Headphones | 3.5MM support stereo with MIC headphone output port |
| USB 3.0 | USB 3.0_A port*2 |
| HDMI_OUT 1 | Support HDMI 2.1 _OUT*1 (maximum support 7680*4320 60HZ output for
single HDMI display) |
| SIM card | SIM card port*1 |
| Ethernet port | Support 10/100/1000M Ethernet*1 |
| Horn | Dual channel 4 Europe 5W speaker interface 4PIN spacing 3.81mm
green terminals * 1 |
| HDMI_IN | Support HDMI 2.0_4K input*1 |
| Motherboard Interface | RS232 COM port | RS232 output port DB9*2 |
| USB 3.0 | USB 3.0_A port*2 |
| HDMI_OUT 2 | HDMI 4K 60HZ output*1 (this interface does not work when HDMI_OUT 1
is selected to output 8K) |
| DP display interface | DP display output interface*1 7680x4320@30Hz output*1 |
| Ethernet port | Support 10/100/1000M Ethernet*1 |
| M.2 internal SSD interface | M.2 built-in SSD expansion interface*1 |
| RS485 | RS485 3PIN pitch 3.81 green terminal block*1 |
Applications:
Customization:
Available Customization that from Sunchip:
Regarding software:
1. Booting logo/animation
2. Model number of the Android System
3. Build number of the Android System
4. Pre-install APK
5. Delete APK
6. Set defaulted time zone
7. Set defaulted language
8. Virtual Keyboard (the current defaulted is English Keyboard)
9. Other requirements etc.
Regarding hardware: ODM layout
……More customization is waiting for your checking.
Support and Services:
1, More than 10 years of PCBA design and production experience.
2, A R&D team of more than 80 people, including hardware
engineers (layout, debugging) and software engineers (drivers,
kernels, testing, apk engineers).
ID Design engineer, Mechanical Design engineer, -> Support
OEM/ODM.
3, Team of more than 160 people.
4, One-stop service: PCB design, prototype, production, PCBA SMT,
testing, shell design, assembly, software customization, QC
control, after-sales.
5, Got ISO9001 factory certification.
6, More than 3500 square meters of office and factory area
Sunchip can provide AIO machine, can provide android board+ lcd touch
panel, also can provide only android board.
Hardware and software solution are our biggest advantage.
8K Octa-Core: RK3588;
4K Hexa-Core: RK3399;
4K Quad-Core: RK3566, RK3568, RK3288, RK3328, RKPX30, RK3188,
RK3128;
SUNCHIP ARM board Solution list:
RK3588, RK3566, RK3568, RK3399, RK3288, RK3328, RKPX30, RK3188,
RK3128 etc.
Display interface: HDMI output, HDMI input, LVDS, EDP, MIPI.
Network optional: WIFI, Bluetooth, Ethernet, 4G, Optical.
FAQ:
Q: Are you trading company or factory?
A: We are OED & ODM factory, and we have own hardware and software
R&D team.
Q: How can I pay for samples and bulk order?
A: bank T/T,PayPal, Alibaba platform,West link,all of them are
acceptable.
Q: What is the warranty time?
A: Defaulted 1-year. If need to add the warranty time, price will
be increased.
Q: Do you have any discount?
A: Based on the different quantities, better prices if better
quantities.
Q: After I get the products what if my products broken, what kind
of service you support?
A: First contact us, tell us about the problem, our engineer will
help to handle; secondly, you can send back the products to us, we
will fix it. we support 12 months warranty, any problem catches me
online, we can give you good solution way. we want to do long term
business with you not just for 1 day 1 time.
Q: Shipping solution?
We support Express, such as, DHL/FedEx/UPS/TNT etc., also support
sea shipping, air shipping and railway shipping, depends on the
customer’s request.
