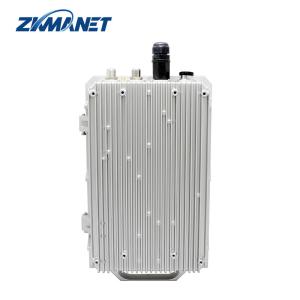

The ZKManet2452UM is a 4W UGV/Robot video data transmitter with
powerful functions and stable performance using the leading MANET
technology. It can form up an intelligent communication system with
a remote control station, the video and data are encrypted during
transmission. In application, it transmits on-site video and
information (such as oxygen concentration and vehicle status, etc.)
back to the control station.
* High bandwidth up to 82Mbps
* With built-in 4-channel DVR
* Supports CVBS/AHD/CVI video input
* Full IP duplex transparent data transmission
* Up to 1.5km ground-to-ground transmission range
* Supports Web and PC software configuration
* Rugged aviation aluminum alloy housing
| Transmission Characteristics |
| Default Frequencies | 1400MHz-1480MHz (Or customize) |
| Channel Bandwidth | 5M/10M/20MHz/40MHz |
| RF Channel | 2T2R |
| Output Power | 36dBm (2x2W MIMO) |
| Modulation Type | DSSS/CCK BPSK/QPSK OFDM BPSK/QPSK/16-QAM/64-QAM |
| Data Rate | Up to 82Mbps |
| Network Capability | 9 hops and no less than 64 nodes |
| Encryption | AES |
| Interfaces |
| RF | N*2, SMA*1 |
| Video Input | IP/CVBS/AHD/CVI*4 |
| LAN | RJ45*1, 4-PIN Aviation LINE*1 |
| Data | DATA1, DATA2, DATA3, IO1, IO2 |
| Intercom | 5-PIN Aviation Connector |
| Power | 3-PIN Aviation Connector |
| Electrical Characteristics |
| Working Voltage | DC 12V |
| Power Consumption | <High Power Average |
| Physical Characteristics |
| Weight | 2.4kg |

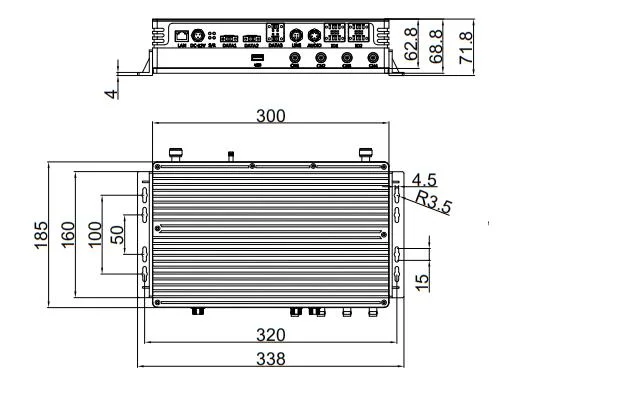

| Dimensions | 300*185*69mm |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -20ºC~70ºC |
| Working Humidity | 5%RH-95%RH (Non-Condensing) |
1. LAN interface, RJ45
2. Power input interface, 3-PIN aviation connector
3. S/R signal indicator
4. DATA1 - RS232 or RS485
5. DATA2 - PTZ control interface
6. DATA3 - CAN and sensor data interface
7. LAN interface, LINE
8. Audio
9. IO1
10. IO2
11. USB, for storage
12. CH1 - IPC or AHD camera input
13. CH2 - IPC or AHD camera input
14. CH3 - IPC or AHD camera input
15. CH4 - IPC or AHD camera input
1. MESH antenna interface-1, N F
2. Reserved antenna interface for GPS/WIFI/4G-LTE, SMA F
3. MESH antenna interface-2, N F
