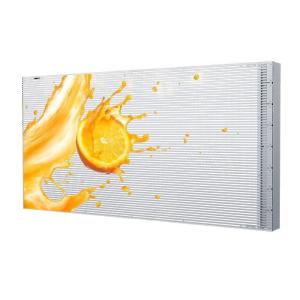

P3.9 Adhesive Transparent LED Display 4000cd/sqm With High
Transparency 70%
PRODUCT DESCRIPTION
The sophisticated design transparent LED adhesive film is suitable
for shopping mall advertisement or window glass. It is extremely
easy to install and control with nearly thin as paper. T-PAPER
series LED adhesive film maximizes the effect of advertising and
replaces conventional signs and boards for promoting.
PRODUCT QUICK DETAILS:
1. Adhesive film led display to stick on the glass
2. Light weight with 3.5kg/panel
3. Easy do fix installation
4. Can do high brightness 2000-5000nits
5. Cuttable size
TECHNICAL SPECIFICATIONS
| Product Model: | TP3.9 |
| Pixel Pitch: | 3.9-7.8 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 1000x500mm |
| Module Size: | 1000x62.5mm |
| Cabinet Weight: | 3 kg |
| Cabinet Material: | Aluminum & PC |
| Driving Type: | Static |
| Brightness: | 1000-5000 nits |
| Max/Avg Power: | 720/252 W/m2 |
| Maintenance: | Rear service |
| Environment: | Indoor Use |
| IP Rating: | IP30 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Fixing/Sticking/Hanging |
| Gray Scale: | 14 bit |

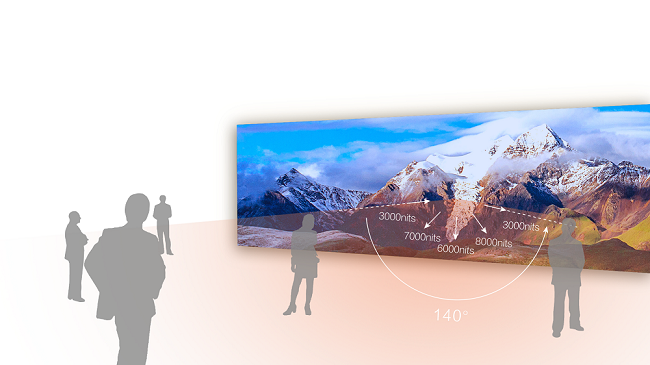

| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
FEATURES
A new age product special design for indoor glass wall, stores,
shopping malls and curved surfaces. Make your advertising methods
more creative, technological and beautiful, so as to maximize the
advertising benefits while saving space.
1. ULTRA THIN
3mm thickness makes it the thinnest led display in the market.
2. FLEXIBLE
Bendable adhesive film led panel, can fit on curved glass wall.
3. HIGH TRANSPARENCY
Transparent film makes it up to 70% transparency rate. Best choice
for store window glass.
4. EXTREME LIGHT
Film size 1000x500mm only weighs 3 kg, convenient to handle.
5. CLIPPING SIZE
The film panel is cuttable to meet different installation condition
such irregular glass.
APPLICATION FIELD
Building glass facade
Shopping center glass wall
Store window glass
Brand flagship store
Glass hall and corridor
CASE
Looking for a super light led panel for glass window? Our T-PAPER
series adhesive film led display is your premium choice. Flexible
and thin film panel enable technicians to easily do installation in
short time. If you want more details for this product, please don’t
hesitate to message us!
PRE-SALES SERVICE
- Project solution design
- Project quotation and suggestion
- Project details enrichment
- Cabinet and screen layout
- Power and signal calculation and diagram
- Customized product, module, PCB and etc
FAQ
Q1: What kind of display we provide?
A1: We have indoor/outdoor/rental/fixed LED display/Floor LED
Display/Irregular LED display for you choose.
Q2: Are you manufacturer of LED display. If yes, in which city?
A2: Yes, Our factory with 3000 square meters. And we're in SHENZHEN
city, GUANGDONG Province.
Q3: May I know the package details?
A3: For fixed installation, we use wooden case, usually 2 or 4
cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8
cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q4: Can it play HD video?
A4: Yes, it can realize HD video function with Linsn/nova
controlling system
Q5: What's the controlling system?
A5: Our standard controlling system for this model is Linsn/
Novastar. Also support other controlling system, like Xixun, TF,
Colorlight, etc.
Q6: What's the difference between DIP(1R1G1B) and sSMD(One LED, 3
in 1)?
A6: SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3
LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of
the screen, and improve the uniform of the screen, this will make
the screen have a more wide viewing angle and smooth image. With
the technology advanced and SMD brightness improved, SMD is more
and more used outdoor.
Q7: How to deal with the faulty?
A7: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with
new order for small quantity.
For defective batch products, we will repair them and resend them
to you or we can discuss the solution
including re-call according to real situation.
