Industrial Pressure Gauges For Pressure Measurement And Control

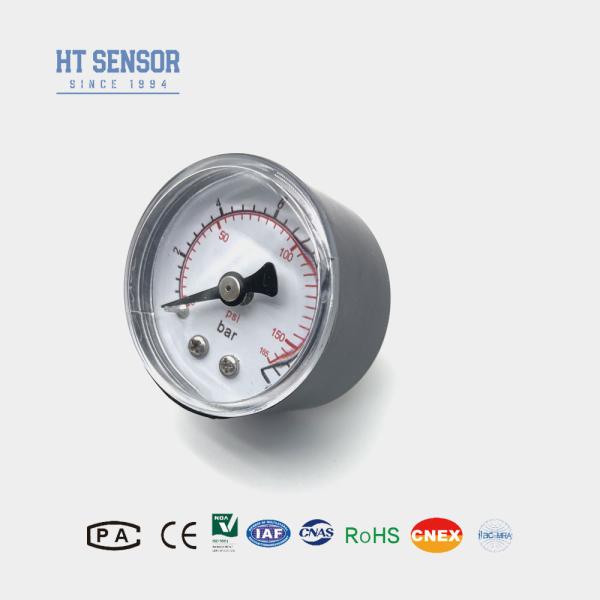

Axial Pressure Gauges

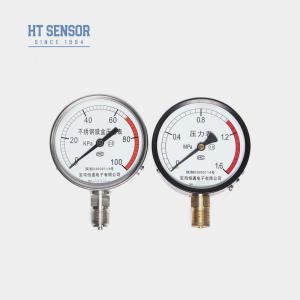

Description of pressure gauge:
The general pressure gauge series is designed for measuring
non-explosive, non-crystallizing, and non-solidifying liquids,
gases, or steam that have no corrosive effect on copper and copper
alloys. Pressure can be installed radially (directly, at the front
or rear), axially (at the front or rear with a belt), using a clamp
type installation, screw mounting, or flange mounting. These
products are widely used in industries such as steelmaking,
petrochemicals, machinery manufacturing, automation systems
integration, glass ceramics production, plastic rubber processing,
pharmaceuticals manufacturing, light industry textiles production,
food processing and packaging technology water treatment facilities
thermal power generation plants nuclear energy facilities.
Specification of pressure gauge:
| Dia: | 40mm/50mm/63mm/100mm/150mm |
| Pressure Range: | -1Bar-0-1000Bar(15000Psi) |
| Accuracy: | ±1.6% |
| Operating temperature: | -40°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel |
| <100Bar: C-Type |
| ≥100Bar: Helical Type |
| Liquid: | Glycerin or Silicone |
| Connection: | Brass or Stainless steel |
| Mounting method | Bottom Mount, Rear Mount |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; |
| BSP/NPT etc. |
NOTE.
When selecting a product, please ensure that the measured medium is
compatible with the contacting parts of the product.
To ensure reliable operation, it is advisable to install a
three-valve manifold between the measurement point and the
transmitter, ensuring gradual and uniform pressure application to
the positive and negative pressure chambers of the transmitter.
During installation, it is preferable to position the pressure
interfaces at both ends horizontally in order to minimize the
influence of the installation location on the product. For special
requirements such as intense vibration, instantaneous impact force,
strong electromagnetic interference, or radio frequency
interference, please notify our company and specify these
requirements in your order.
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high
precision, durability, and excellent performance, with the option
for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs
through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up
to 30,000 pressure sensor transmitters per month, ensuring that we
can fulfill large-scale orders. However, it is advisable to contact
our sales team in advance for smooth production and delivery
scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working
days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk
orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales
service?
A: Our products come with a 24-month warranty from shipment date,
and our after-sales service ensures prompt responses within 24
hours along with remote instruction support via PC network.
