PVC Pipe Plug Meeting ISO1167 for Pipe Hydrostatic Pressure &
Bursting Sealing Applications
Applications:

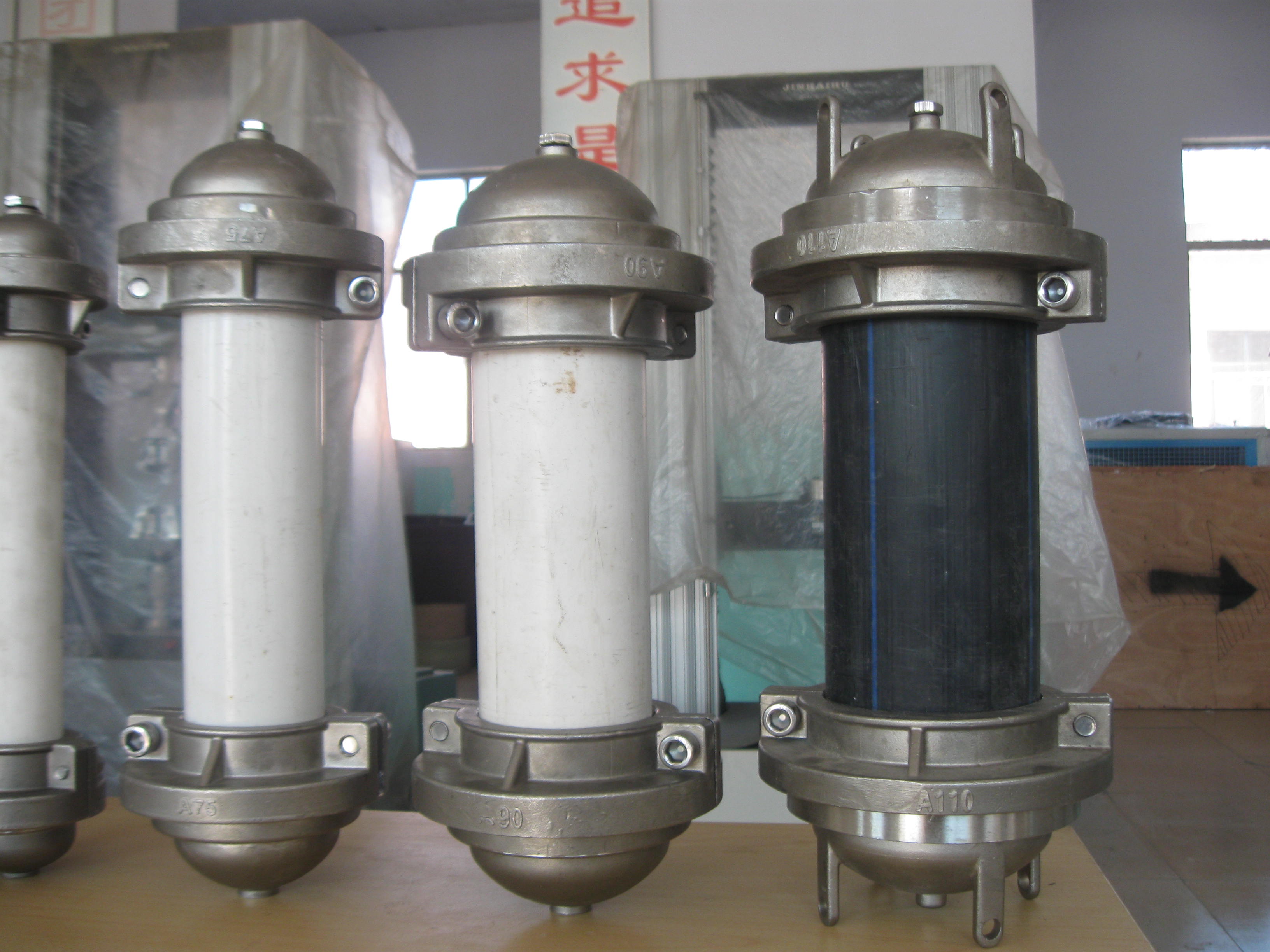

JINHAIHU XGY Plastic Pipe End Caps are a reliable and durable
solution for sealing PVC, PE, PP-R, ABS, and composite pipes during
hydrostatic, bursting, and negative pressure testing. These end
caps are made of high-quality 304# stainless steel or carbon steel,
and have been certified with ISO9001 and meeting GB/T 6111, EN921,
ISO1167, ASTM D 1598/1599 standards.
The JINHAIHU XGY Plastic Pipe End Caps have an exterior size of
φ60*60mm and a model number of DN 16mm. They are easy to install
and remove due to their internal PVC plug design, which ensures a
tight seal during testing.
These end caps are suitable for a variety of applications,
including plumbing, construction, and manufacturing. They are
perfect for pe pipe pressure testing, as well as other types of
pressure testing.
JINHAIHU XGY Plastic Pipe End Caps have a minimum order quantity of
1 set and a price range of 80-130 USD/set. Their supply ability is
1000 sets per month, and they have a delivery time of 3-5 work
days. They are packaged in standard export wooden cases for safe
transportation.
Payment terms for JINHAIHU XGY Plastic Pipe End Caps include T/T,
L/C, Western Union, MoneyGram, D/P, and D/A. These end caps are
manufactured in BEIJING, CHINA and are a reliable and
cost-effective solution for all your pressure testing needs.
Features:
Product Name: Plastic Pipe End Caps
Sealing Ring: O-ring
Standards:
GB/T 6111, EN921, ISO1167, ASTM D 1598/1599
Technics: Precision Casting
Material: 304# Stainless Steel
Size of seal ring: φ10*3.7mm
These Plastic Pipe End Caps can be used as a pipe pressure test
plug or internal pvc plug. They are also suitable as a pvc pipe
plug.
Technical Parameters:
| Application | Sealing PVC, PE, PP-R, ABS, composite pipe samples for hydrostatic
test, bursting test, negative pressure test, etc. |
| Max. Pressure | 12MPA |
| Weight | 1KG |
| Technics | Precision Casting |
| Product Name | PVC Pipe Plug Meeting ISO1167 for Pipe Hydrostatic Pressure &
Bursting Sealing Applications |
| Fixture Structure | Half round pot form, easy for installation, no leakage, convenient
operation. |
| Working Principle | Sealing the testing pipes with high temperature resistant silicone
seal rings embedded in the stainless steel or carbon steel closures
seal groove, the closures metal rings press the silicone seal
rings. |
| Product Category | Plastic Pipe End Caps |
| Material | 304# Stainless Steel |
| Color | Silvery white |
Support and Services:
If you have any technical questions or need assistance with our
Plastic Pipe End Caps, our team of experts is available to provide
support and guidance. We offer a range of services, including
product training, installation guidance, and troubleshooting
assistance. Our goal is to ensure that you get the most out of our
products and that your projects are completed successfully.
At our company, we are committed to providing exceptional customer
service and support. If you have any questions or concerns about
our Plastic Pipe End Caps, please do not hesitate to contact us.
Our team is always ready to help you find the right solution for
your needs.
Packing and Shipping:
Product Packaging:
Our Plastic Pipe End Caps come in a set of 2 pieces, and are
packaged in a sturdy cardboard box to ensure safe delivery to your
doorstep. The box is labeled with the product name and size for
easy identification.
Shipping:
Goods can be shipped by Courier, air, sea and rail.
Orders are processed within 1-2 business days
Shipping times may vary based on the destination
Customers will receive a tracking number once their order has
shipped.
FAQ:
Q1: What is the brand of this product?
A1: The brand of this product is JINHAIHU.
Q2: What is the model number of this product?
A2: The model number of this product is XGY.
Q3: What certifications does this product have?
A3: This product has ISO9001 certification.
Q4: Where is this product manufactured?
A4: This product is manufactured in Beijing, China.
Q5: What is the minimum order quantity for this product?
A5: The minimum order quantity for this product is 1 set.
Q6: What is the price range of this product?
A6: The price range of this product is 80-130 USD/SET.
Q7: What is the supply ability of this product?
A7: The supply ability of this product is 1000 sets per month.
Q8: How long is the delivery time for this product?
A8: The delivery time for this product is 3~5 work days.
Q9: How is this product packaged?
A9: This product is packaged in standard export wooden cases.
Q10: What are the payment terms for this product?
A10: The payment terms for this product include T/T, L/C, Western
Union, MoneyGram, D/P, D/A.
