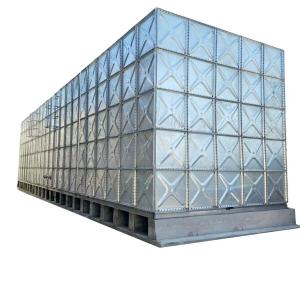

Modular Sectional Steel Water Tanks Tower Water Reservoir Tank Hot Dipped Galvanized

The hot-dipped galvanized steel water storage tank is deferring to the manufactured new type of water tank. The manufacture and the installment of the tank do not influence the construction. There are not needed the welding apparatus, the surface is a hot dipped galvanized antiseptic treatment. It's artistic and durable, prevents two times pollution of water quality and is beneficial to human health. The water tank meets the construction product standardization, the seriation, and the factorization request.

This product is suitable for the construction water storing, the regulating tank, the heating system's inflation water tank, the condensate tank as well as the building construction, the geological prospecting, the industry, the defense project, and so on temporarily store water tank.

This water tank volume has 24 kinds of specifications, selected for the design. The engineer also can design according to the water tank's length, width, high the factory assembles.

The inlet pipe, the outlet pipe, the overflow caliber, and the position of the water tank depending on the design. All around the water tank should have no less than 700mm channels, and the bottom and the cover should have no less than 600mm. When it is installed, the bottom and all around between the bottom standard plate's joins must be located on the support.

Water storage tank accessories:

(1) Support for Panels: The panels shall be supported externally or internally by an adequate support system. External Reinforcement - Hot Dipped Galvanized Steel; Internal Reinforcement - Hot Dipped Galvanized or Stainless Steel 304 rod support and tie-rod.
(2) Sealing Materials: Nontoxic Rubber foam to be used for all jointing, it is specially developed with long experience and technology on SMC products. It maintains soft itself and adhesives even at low temperatures.
(3) Bolts, nuts, and washers for the assembly of panels: Exposed externally are hot dipped galvanized steel, and in contact with water internally are hot dipped galvanized steel or stainless steel 304.
(4) Flange: the flanges for inlet, outlet, drainage, and overflow are hot-dipped galvanized steel or stainless steel 304.

(5) Ladders: SMC sectional tank of 1.5m depth or more shall be provided with an internal ladder made up of materials the same as the supports. The external ladders shall be galvanized mild steel or equivalent.

(6) Drainage: The dome-shaped bottom panel with a concave drain panel facilitates complete and fast drainage. The concave drain panel has been designed to ensure the periodic cleaning and inspection of the tank.
(7) Overflow Screens: it can be supplied with a screen overflow having a micro mesh filter.
(8) Man-hole opening & Inspection Hatches: the size can be customized; normally it is supplied with a standard size of 600 x 600mm. The opening can be designed for the bolt, seal-tight locking arrangement.
(9) ABS roof vent with PE insect screen.
(10) Float level indicator, and optional SS304 for internal and external support structure are available on request.
(11) prop up

>>>>>>>>>>>>>>>>>>>>>>>Welcome to contact us for more inquiries<<<<<<<<<<<<<<<<<<<<

(1) Strong resistance to corrosion
(2) Reasonable structure design
(3) All welded on-site combination. High strength, good sealing, prevent secondary pollution of water quality
(4) Lightweight, that is one half of an ordinary steel plate water tank
(5) Easy to install
(6) Clean, bright, beautiful appearance.
