CYW19Y Absolute Pressure Transmitter 0.1%FS, 0.25%FS Submersible Water Level Transmitter

CYW19Y Absolute Submersible Level Transmitter Pressure Range 0~0.2~2MPa(A) Temperature Range -20~85°C

The CYW19Y absolute pressure submersible level transmitter adopts an absolute pressure measurement process inside, and the internal cavity is completely isolated from the outside. This avoids transmitter damage caused by internal condensation and liquid filling of the cavity caused by the field use environment. Suitable for harsh level measurement sites.

Basic parameters
Measuring medium	Water (H2O) or liquids compatible with contact materials
Measuring range	0~0.2~2MPa(A)(See range selection table for details)
Temperature range	-20～85℃
Medium temperature	-40～85℃
Pressure mode	Absolute(A)
Frequency of response	The analog signal output ≤ 50Hz, and the digital signal output ≤ 5Hz
Stable performance	±0.1% FS/year
Supply voltage	4~20mA,RS485
Signal output	4~20mA,RS485
Overload capacity	200% full scale
Temperature drift	±0.01%FS/°C (within temperature compensation) ±0.05%FS/°C (outside temperature compensation)
Explosion-proof type	Intrinsically safe Ex ia II.C T6 Ga (4~20mA output only)
Ingress protection	IP68
Overall weight	Probes ≈ 310g cables ≈ 40g per meter
Turn-on time	400ms
Maximum power	≤0.02Us(W) Note: Us=supply voltage.
resolution	Analog output 0.01%FS, digital output 0.05%FS
Load characteristics
Current type	Load ≤{(Us-7.5)÷0.02}Ω (Us=Supply Voltage)
Environmental conditions
Ambient temperature	-40～85℃
Overall material
Diaphragm	316L stainless steel (in contact with the medium to be measured)
Outer shell	304 stainless steel (in contact with the test medium)
Seals	Nitrile rubber (contact with the medium to be measured)
Cable	Polyurethane φ5 shielded cable (in contact with the medium to be measured)
Mechanical stability
Seismic performance	10g(20… 2000Hz) in accordance with the IEC60068-2-6 standard
Impact resistance	500g/ms meets IEC60068-2-27 standard
Electrical protection
Short-circuit protection	perpetual
Reverse polarity protection	No damage, but no work
Insulation resistance	≥100MΩ,500VDC
Dielectric strength	500VAC
Output limits
Level output
4-20mA	4~20mA
RS485	0~2000
Liquid temperature output
4-20mA	2.5~26mA
RS485	0~1500

Manual
Product Information -Chinese (CN)	PDF
Product Information -English (EN)	PDF
Product selection -Chinese (CN)	PDF
Product selection -English (EN)	PDF
Installation instructions -Chinese (CN)	PDF
Installation instructions -English (EN)	PDF
Protocol -Chinese (CN)	PDF
Protocol -English (EN)	PDF

Product Tags:

CYW19 Absolute Pressure Transmitter

0.1%FS Submersible Water Level Transmitter

0.25%FS Submersible Water Level Transmitter

CYW19Y Absolute Pressure Transmitter 0.1%FS, 0.25%FS Submersible Water Level Transmitter

CYYZ3051SAY Monocrystalline Silicon Double Remote Pressure Transmitter Differential

CYW81CY Hydrostatic Oil Level Transmitter 0-5-30kPa Oil Level Measurement

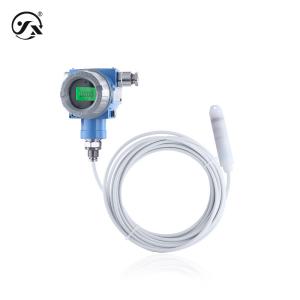

CYW71CY Submersible Liquid Level Transmitter Anti Corrosion Chemical monitoring Chemical plants
