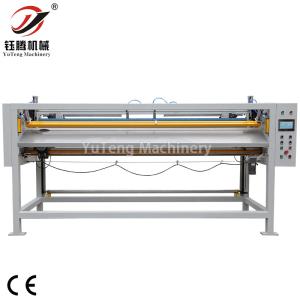

Computer Automatic Fillet Cutting Machine
Purpose:
It is suitable for fillet,cross cutting,scuttling and other
products of home textile fabric processing.It is suitable for
matching with quilting machine,or can be used alone.
Edge knife fillet cutting effect
Middle opening rounded corner cropping effect
Features:
• Innovatively introduce advanced ultrasonic cutting technology to
realize cutting automatic rounded corner function, greatly saving
labor cost and improving production efficiency (patent structure);
• High precision upper and lower four roller structure, combined
with encoder code counting and multiple servomotor motion control,
can ensure that the horizontal cutting size accuracy error is kept
within 1cm;
• High precision, high steel moving saddle design structure, so
that the adjustment size of the operation is more stable, more
simple;
• Crosscutting knife with pneumatic automatic sharpening function,
reduce the disassembly frequency of crosscutting knife, and improve
the safety of use;
• Equipped with infrared safety protection device, comprehensively
improve the personal safety protection during the use of equipment;
• Adopt GB 7 inch color touch screen PLC man-machine interface,
touch screen sensitive, easy to operate, can realize the conversion
between Chinese and English.
Technical Parameters:
| Model | YTCM96-Y |
| Machine size (L x W x H) | 3700*2500*1750(mm) |
| Fillet angle | R10/R12 |
| Fillet cutter | 2 knives/3 knives |
| Cutting length | 500mm-unlimited |
| Cutting width | 600-2300mm |
| Cutting thickness | <=25mm |
| Cutting speed | 14.5m/minute |
| Max power | 6 KW |
| Air pressure | 0.6-0.8 Mpa |
| Voltage | 380V/50HZ,220V/60HZ,3-Phase |
| Machine weight | 1200 KG |
Customized model are available to meet client’s various needs
Machine Details:
Multiple servo motor motion control
Crosscutting knife with pneumatic automatic sharpening function
Packing and Shipping:
1.plastic film&paper board(normal packing style,for free)
2.wooden case packing(Packaging fee is paid by your company)
