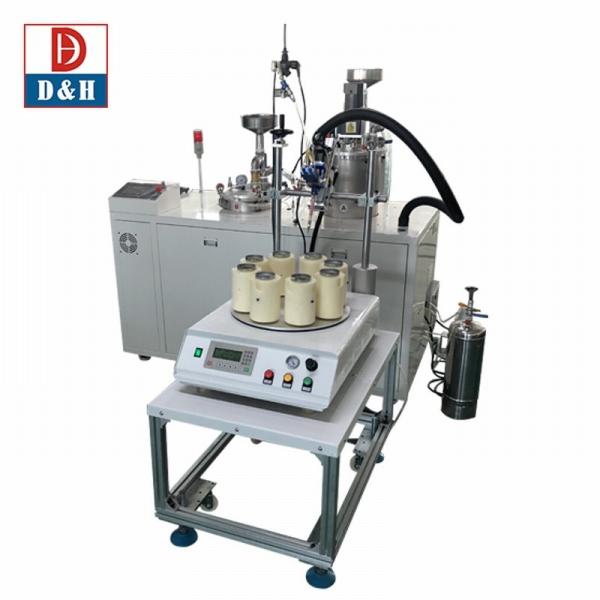

    Adjustable Mixing Ratio Filter Heart Gluing Dispensing Equipment for AB PU Resin

    Ask Lasest Price
    Brand Name : D&H
    Supply Ability : 50 Piece/Pieces per Month MOQ=1PCS
    Price : $13,000.00/pieces 1-1 pieces
    • Product Details
    • Company Profile

    Adjustable Mixing Ratio Filter Heart Gluing Dispensing Equipment for AB PU Resin

    Product Overview


    Auto filter dispensing equipment Filter heart gluing dispensing system AB PU resin bonding machine

    * Machine demand description
    Electronics are increasingly present in our lives,these technologies all use a wide array of components – auto filter , round bulb , speaker , air filter , round light etc. – round products that need to be bonding covers or filters ... and so on .
    Our 2 component application equipment is the the good machine for bonding those round products, which apply different production processes required metering , mixing , dosing , dispensing and bonding with high accuracy and high efficiency .

    * Metering working Principle
    The machine will have two tanks for keeping Liquid A & B separately.
    There are two sets of metering pumps inside the machine, draining out liquids individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data .

    Machine functions:
    * Mixing ratio
    100:100-100:10 adjustable . Dynamic or static mixing mode are optional .
    * Tank liquid level sensor
    Tank liquid level alarm helps remind glue level line in tank and supplement materials immediately.
    * Vacuum filling
    The machine can automatically feeding material by using of the negative pressure of AB vacuum tank .
    * Vacuum degas
    Vacuum defoaming can remove the bubbles contained in the material,and this degas system can satisfy different fluid mixing and potting .
    * Heating
    Heating helps glue, especially PU and epoxy, to quickly reduce viscosity in cold weather, increase flow speed, and improve glue filling efficiency.
    * Self-cleaning
    Automatic cleaning can quickly clean the mixing tube and prevent the mixture from solidifying
    * Self-discharging
    Automatic discharging can discharge the mixture that is about to be solidified in time to prevent the mixture from solidifying in the mixing tube.
    FEATURES AT A GLANCE
    Potting sample
    Sample test
    PRODUCT CONFIGURATION
    ITEM
    Parameter
    Mixing ratio
    1:1--10:1 adjustable
    Out-glue speed
    1-12g/s
    Accuracy
    ±2%(output volume)±2%(mixing)
    tolerance
    ≤0.2mm
    Flow control
    Digital input
    Program memory
    99pcs
    Automatic controlling system
    Touch screen (to achieve program programming, modification, storage and so on
    Out-glue control system
    AB glue back suction valve, achieve AB glue independent operation
    Programmatically
    Tech programming
    With computer systems (Micro software Windows 7,Windows10 optional)
    Mixing method
    dynamic mixing
    Power supply
    220V/50Hz/1500W
    Air source
    0.5-0.8Mpa
    Viscosity range
    50-20000cps
    A tank
    25L stainless tank(optional)
    B tank
    10L stainless tank(optional)
    Others
    AB tank 、A pump、AB pipeline heating function
    About Company

    ■ About D&H

    D&H is a company who has its own core tech and provides professional glue controlling solutions in the industry.In 2006 we developed the patent-“double cylinder plunger pump”,the glue dispensing machine with such a pump type was launched into the market successfully.This patent design becomes the heart of a new generation of metering device.The new design leads the liquid controlling device into a direction of high filling,high precision ,high crystallization,high output speed and production line.
    Certifications

    QUALIFICATION CERTIFICATE

    We have more than 30 national patents, and are at the industry pioneer level in the core technologies of glue potting and dispensing

    Sales Network & Customers
    Exhibition
    Packing & Delivery
    ■ Standard Wooden Case with Vacuum Package
    ● By air, for sample and small package, international express like DHL, UPS, EMS...
    ● By sea, for large package and quantity;
    ● Other ways as customer requested.

    FAQ
    Q:Do you offer oversea service?
    A:We have overseas service center in some countries, we can support local service as per discussion. And we also can offer oversea service if customer required, engineer will offer face to face service.
    Q:How dose your factory do regarding quality control?
    A:We assure 1 year warranty for the main part,also we offer spare part for back up.
    Please check with sales engineer in detail.
    Q:What are your payment terms?
    A:Normally, 30% advance by T/T and balance paid off before delivery.
    Q:Are you a factory or trading company ?
    A:We are a factory with SGS certified and more than 30 patents,and cooperate with different customers coverd about 50 countries for over 19 years.
