4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S

    Buy cheap 4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S from wholesalers

    Buy cheap 4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S from wholesalers
    • Buy cheap 4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S from wholesalers
    • Buy cheap 4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S from wholesalers

    4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S

    Ask Lasest Price
    Brand Name : AOXUANZG
    Model Number : WC67Y-200T/4000
    Certification : CE
    Price : $21998-$23546/unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A
    Supply Ability : 500sets/Year
    Delivery Time : 20-30 days
    • Product Details
    • Company Profile

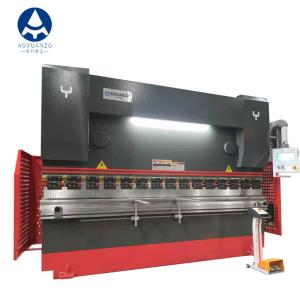

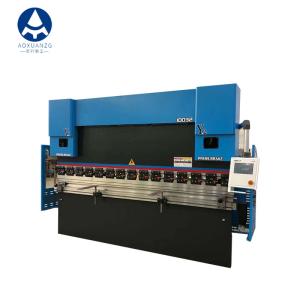

    4000mm 2000KN Hydraulic Press Brakes CNC Manual Sheet Bending Machine TP10S

    CNC Hydraulic Press Brake, Automatic Folding Machine and Manual Bending Machine with Side Fence

    Main Features:


    1. Special numeric-control system is fitted with mainframe of the bending machine.
    2. Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
    3. The machine is provided with bend counting function, for a real-time display of processing quantity and power-failure memory of positions od stopper and gliding block, as well prccedures and paremeters.
    4. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.



    The standard cofiguration:






    Details:



    Technical Parameters:

    ModelNominal pressure (KN)Worktable Length (mm)Columns Distance (mm)ThroatSliderMaxMainDimension
    DepthStrokeOpenmotorL x W x H
    (mm)(mm)heightPower(mm)
    (mm)(KW)
    WC67Y/K-30/1600300160012802008019031700×900×1650
    WC67Y/K-30/2000300200012802008019031700×900×1650
    WC67Y/K-40/2500400250019002801003205.52600×1100×1900
    WC67Y/K-63/2500630250019003501703805.53100×1450×2050
    WC67Y/K-80/3200800320027003501703807.53500×1550×2100
    WC67Y/K-100/32001000320027004002004207.53500×1580×2400
    WC67Y/K-160/3200160032002700400200420113500×1650×2550
    WC67Y/K-200/3200200032002700400200420153500×1680×2550
    WC67Y/K-250/3200250032002700400200420153500×1700×2600
    WC67Y/K-320/3200320032002700400200420223500×1800×2730
    WC67Y/K-400/4000400040003500500320600304300×2450×3500
    WC67Y/K-500/5000500050003900500320600375400×2810×4300
    WC67Y/K-500/6000500060004900500320600376500×2810×4300
    WC67Y/K-500/7000500070004900500320600377500×2810×4900
    WC67Y/K-600/5000600050003900500320600455500×2910×4900
    WC67Y/K-600/6000600060004900500320600456500×2910×5100
    WC67Y/K-600/7000600070005900500320600457500×2910×5200
    WC67Y/K-800/6000800060004900600400600556500×2750 ×5300
    WC67Y/K-800/8000800080006900600400600558500×2750×5900
    WC67Y/K-1000/600010000600049006004006002×376500×2800×5600
    WC67Y/K-1000/800010000800069006004006002×378500×2800×6100
    WC67Y/K-1000/10000100001000080006004006002×3710500×2800×5850
    WC67Y/K-1200/600012000600049006004008002×376500×3100×5850
    WC67Y/K-1200/800012000800069006004008002×378500×3100×7150



    Our Service
    Pre-sales.
    * Project design, performance introduction, technical agreement, contract signing, packaging

    * Inquiry and consulting support.
    * Sample testing support.
    In-sales.

    * We will provide you with the latest progress in the product assembly, packaging and transportation.
    After-sales.
    * We will provide free accessories for the damage to non - human parts.

    * Training how to install the machine, training how to use the machine with video and so on

    * And our technical staff can go abroad to provide technical guidance.

    Our Company:



    Our workshop:



    Customer & EXPO:

    FAQ:
    1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
    own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
    be solved on spot at first time.

    2.What's your main product and what is your main foreign market? Our main products are press brake,shears machine,press,cut
    ting machine,locking machine ,auto duct line and related products. Our main foreign market are Asia, North America, Europe, Afr
    ica.

    3. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
    port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
    ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
    ualified .our machine would be sent out.So The quality of our product is stable and reliable.

    4. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
    would keep you updated of production details of emails and photos.

    5. Can we be your agent? Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service
    like machine technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
