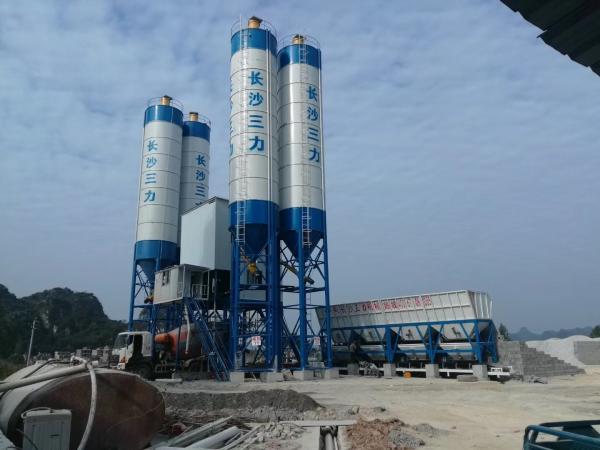

    Fully automatic 120m3/h HZS 60 to 240 m3 central concrete plant equipment cement

    Ask Lasest Price
    Brand Name : SUNNY
    Model Number : HSZ120
    Price : USD 110000-150000/ SET
    Payment Terms : L/C, T/T, D/P, Western Union, MoneyGram
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 25-30 days
    • Product Details
    • Company Profile

    Fully automatic 120m3/h HZS 60 to 240 m3 central concrete plant equipment cement

    Fully automatic 120m3/h HZS 60 to 240 m3 central concrete plant cement factory concrete batching plant italy

    Engineering & Construction Machinery HZS120 Fixed Concrete Batching Plant concrete mixing plant


    Belt Conveyor Type Concrete Batching Plant mainly consists of 5 major systems such as mixer, material weighing system, material conveying system, material storage system and control system and other ancillary facilities. It is equipped with the storage, batching, conveying, stirring, control and other devices of various raw materials required for precast concrete, and various aggregates, powders, admixtures, water, etc. A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.

    pecification


    Name of parameter
    HZS60
    HZS90
    HZS120
    HZS180
    HZS240
    Theoretical productivity
    60 M3/h
    90 M3/h
    120 M3/h
    180 M3/h
    240m³/h
    Model of mixer
    JS1000
    JS1500
    JS2000
    JS3000
    JS4000
    Mixing motor power
    2x18.5Kw
    2x30Kw
    2x37Kw
    2x55Kw
    2*75Kw
    Cycle period
    60s
    60s
    60s
    60s
    60s
    Volume of mixer
    1000L
    1500L
    2000L
    3000L
    4000L
    Unloading height
    4.0m
    4.0m
    4.0m
    4.0m
    4.0m
    Measuring range and precision of aggregate
    (600-2000)≤±2%
    (700-2400)≤±2%
    (1000-3600)≤±2%
    (1600-4800)≤±2%
    (1600-4800)≤±2%
    Measuring range and precision of cement
    (300-1200)≤±1%
    (300-1200)≤±1%
    600-1800)≤±1%
    (800-2400)≤±1%
    (800-2400)≤±1%
    Measuring range and precision of coal ash
    (200-600)≤±1%
    (200-600)≤±1%
    (300-900)≤±1%
    (400-1200)≤±1%
    (400-1200)≤±2%
    Measuring range and precision of water
    200-600)≤±1%
    (200-600)≤±1%
    (200-700)≤±1%
    (360-1200)≤±1%
    (360-1200)≤±1%
    Measuring range and precision of admixture
    20-60)≤±1%
    (20-60)≤±1%
    (30-100)≤±1%
    (36-120)≤±1%
    (36-120)≤±1%


    Features of concrete batching plant:

    1. High Production Capacity: The HZS120 batching plant has a theoretical production capacity of 120 cubic meters per hour, making it suitable for large-scale construction projects. It can handle high volumes of concrete production, allowing for efficient and timely completion of projects.

    2. Excellent Mixing Performance: The HZS120 batching plant is equipped with a twin-shaft concrete mixer, which ensures thorough mixing of aggregates, cement, water, and additives. The twin-shaft mixer operates at a high speed, promoting efficient mixing and delivering a homogeneous concrete mixture.

    3. Advanced Control System: The HZS120 batching plant is equipped with a sophisticated control system, allowing for precise control and monitoring of the mixing process. The control system offers features such as automatic weighing, accurate dosing, and real-time data monitoring. It enables operators to adjust various parameters and ensures consistent and high-quality concrete output.

    Q: What kind of products do you have?
    1. Stationary concrete batching plant arranges from HZS25 to HZS180.
    2. Mobile concrete batching plant.
    3. Concrete mixer machine.
    4. Portable drum concrete mixer with diesel engine.
    5. Spare parts including screw conveyor and bolted cement silo.
    Q: Are you trading company or manufacturer?
    A: We are manufacturer. We can design and manufacturer products with our patent. Welcome to visit us to check it!
