Automatic Alarm System New 4 Tank Solder Paste Check Right Machine
With FIFO Function
Introduce
Solder Paste Inspection Machine is a device used to inspect and
evaluate the quality of solder paste on printed circuit boards
(PCBs). It is commonly used in the surface mount (SMT) process in
electronics manufacturing to ensure the accuracy, consistency and
quality of solder paste to improve soldering quality and
reliability.
The following are some features and working principles of solder
paste inspection machines:
Visual inspection: The solder paste inspection machine uses a
high-resolution vision system to detect and evaluate the quality of
solder paste through image processing and analysis technology. It
can detect and measure the shape, position, height, area coverage
and other parameters of solder paste.
Automated inspection: Solder paste inspection machines usually have
automated functions that can automatically position the PCB in the
inspection area and perform fast and accurate inspection. Some
advanced models can also achieve continuous detection and online
feedback.
Defect detection: The solder paste inspection machine can detect
various solder paste defects, such as excess, insufficient, offset,
uneven distribution, bubbles, etc. It identifies and marks defect
locations and provides visual inspection results and reports.
Data analysis: Solder paste inspection machines often have data
analysis and statistical functions that can record and analyze the
test results of multiple samples for quality control and process
improvement.
Quick adjustment: The solder paste inspection machine can be
quickly adjusted and set up according to different PCB and solder
paste specifications to meet the needs of the production line.
The advantages of solder paste inspection machines include:
1.High precision and efficiency: The solder paste inspection
machine can quickly and accurately detect and evaluate solder paste
quality, improving production efficiency and consistency.
2.Defect identification and troubleshooting: It can detect and mark
solder paste defects in time, help manufacturers adjust and improve
production processes in a timely manner, and reduce the rate of
defective products.
3.Data analysis and quality control: By collecting and analyzing
inspection data, solder paste inspection machines can help
manufacturers perform quality control and process improvement, and
improve product quality and reliability.
Features

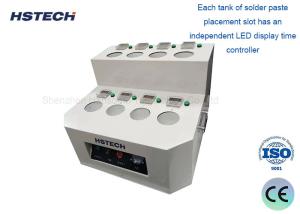

1, 4 tanks for the springe size solder paste and 4 tanks placed the
standard size solder paste.
2, Timer for each tank is setted individual.
3, Air pressure and AC220V work combined.
4, Each tank has a individual button, press the button, the solder
paste will be fixed automized, can not move before finished.
5, After finished timing, the alarm will ring to remind the operator.
6, If the timing timer is not setted right, you can press the
emergency button to stop the operating.
7, The machine is stable stainless steel design, durable.
Specification
| Model | HS-SP-8 |
| Aging tank | Top for springe size, bottom for standard size |
| Timer | LED display timer |
| Tank size | For standard solder paste, others need customized |
| Power | AC220V, 50Hz |
| Air Pressure: | 0.4Mpa |
| Placing tank: | 8 tanks |
| Machine Demension: | 500*520*320mm(W*D*H) |
| Gross Weight: | 22KG |
