TOA40 Narrow Spacing Pipe Orbital Welding System Automatically

  • Product Details
  • Company Profile

TOA40 Narrow Spacing Pipe Orbital Welding System Automatically

TOA40 Narrow Spacing Pipe/Pipe Welding System
Description

The head is suitable for automatic welding of tubes/pipes in narrow pitch form.It can weld various pipes/pipes such as carbon steel and stainless steel.The diameter of the tube ranges fromφ32mm-38mm,and two methods of filling wire or self-melting can be selected.The arc length can be adjusted automatically,and it has a yaw function.It can be used in conjunction with iOrbital5000 programmable welding power source,which can precisely realize orbital TIG tube/tube welding,with high reproducibility of welding results and ideal welding results.Mainly used in chemical,food,boiler,military and nuclear power industries.


Technical parameter
Yaw range( mm )0~15
Arc length range( mm)0~12
wire feed speed( mm/min)100~1800
Cooling methodWater cooling

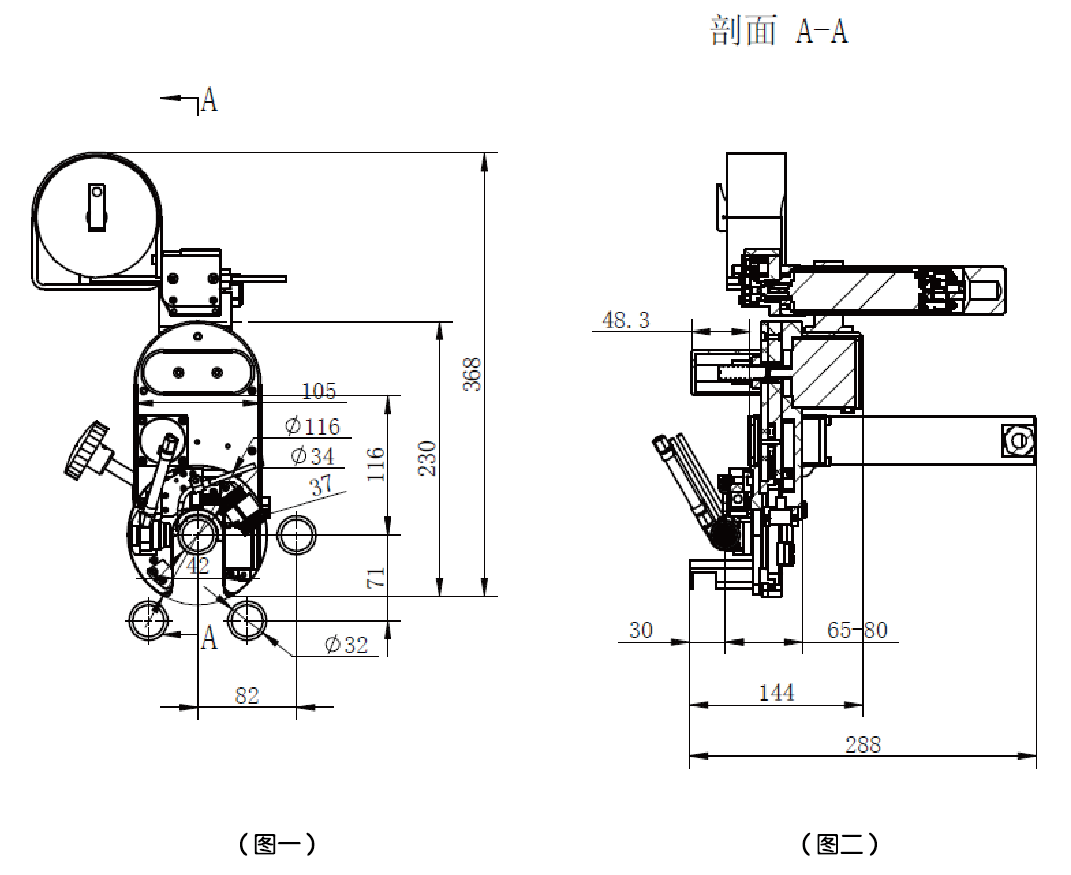

Main dimensions of the headSee (Figure 1, Figure 2)
Weight(kg )6
