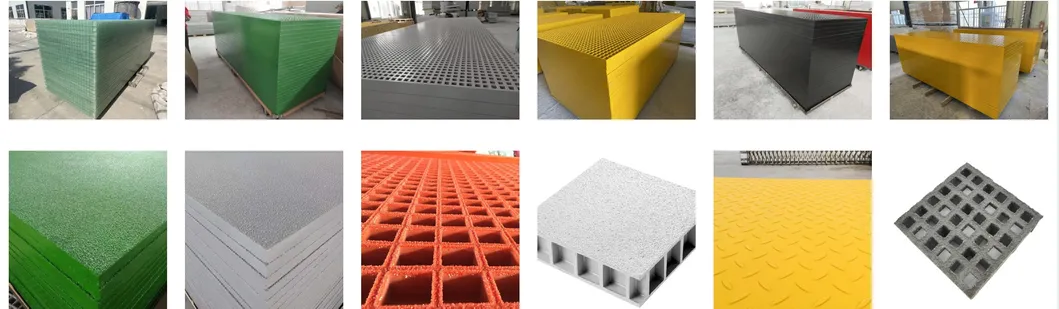

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass

FRP Walkway GRP Grating Fiberglass Grating Size 38X38X38mm

PRODUCTION DETAILS

Industries

• Chemical plant and metal finishing
• Construction engineering, traffic and transportation
• Petrochemical engineering, ocean survey, water engineering
• Food and beverage plants
• Textile printing and dyeing and electronic industry

Functions

• Anti-slip floor, stair tread, a footbridge
• The operation platform, trench cover
• Security and safety fence, handrail
• Off-shore oil rig, shipyard, shipping deck, ceiling
• Ramp ladder, scaffold, railway
• Decorative grid, man-made fountain pool grid
• Non-conductive and non-magnetic

Advantages

• Anti-fire
• Anti-corrosion and anti-ageing
• Anti-slippery
• Light but high loaded strength
• Long service life and maintenance-free
• Non-conduction or magnetic
• Easy installation and rich colours
• Various sizes and colours available

RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

	Resin Type	Resin option	Properties	Fire retardant (ASTME84)	MAX ºC
	Type P	phenolic	lower smoke and superior fire resistance	class 1,5 or less	150 ºC
	Type V	vinyl ester	superior corrosion resistance and fire retaddant	class 1,25 or less	95 ºC
	Type I	isophthalic polyester	industrial grade corrosion resistance and fire retardant	class 1,25 or less	85ºC
	Type O	ortho	moderate corrosion resistance and fire retardant	class 1,25 or less	85 ºC
	Type F	lsophthalic polyester	Moderate Corrosion Resistanceand Fire Retardant	class 1,25 or less	85 ºC
	Type E	EроXy	Excellent corrosion resistanceand fire retardant	class 1,25 or less	180 ºC

Producting proceed

Clip Fastening & Installation Methods

To ensure ease of installation, please review all relevant technical documentation.

Take care when fasteningand seek assistance if required. For further info regarding installation please contact .

The section below illustrates standard installation methods that can be applied to moulded grating.

Clip and fastening selections should be made according to the substrate material in use.

FRP Grating Applications

Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.
