Design Considerations for Gabion Retaining Walls
When designing a Gabion Retaining Wall, several key principles and
features must be taken into account to ensure its stability,
functionality, and aesthetic appeal:
1. Site Assessment
- Conduct a thorough site assessment to determine the soil type,
slope gradient, and drainage conditions. This information is
crucial for designing a stable and effective retaining wall.
2. Wall Height and Length
- The height and length of the wall will depend on the specific
requirements of the site. Higher walls may require additional
support, such as stepped or terraced designs, to ensure stability.
3. Foundation Preparation
- A solid foundation is essential for the stability of a gabion
wall. Excavate the base to a suitable depth, typically around 6 to
12 inches, and ensure it is level. Adding a layer of compacted
gravel can provide additional stability.

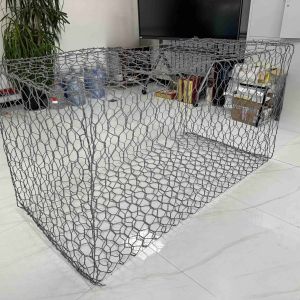

4. Gabion Baskets
- Choose high-quality gabion baskets made from galvanized or
PVC-coated wire mesh. The size of the baskets will depend on the
design and height of the wall.
5. Filling Materials
- Select appropriate stones or other fill materials that fit well
within the mesh openings and provide adequate stability. Angular
stones are preferred as they lock together better than rounded
stones.
6. Drainage
- Ensure proper drainage to prevent water buildup behind the wall.
Install a perforated drainage pipe at the base of the wall and
backfill with free-draining material, such as gravel, to facilitate
water flow.
7. Stability and Interlocking
- The interlocking arrangement along with tiered placement improves
gabion basket stability. Staggering the joints between layers
enhances stability and prevents slippage.
8. Load Analysis
- Perform a load analysis to determine the appropriate height and
thickness of the wall. The base of the retaining wall should be
one-third to one-half the wall height.
9. Environmental Considerations
- Gabion walls are eco-friendly, using natural or recycled
materials. They can also promote biodiversity by integrating
vegetation layers.
10. Aesthetic Appeal
- Gabion walls offer a natural and rugged appearance that can
enhance the visual appeal of any landscape. They can be customized
with various stone types and colors to match the surrounding
environment.
By incorporating these design principles, Gabion Retaining Walls
can provide durable, cost-effective, and visually appealing
solutions for slope stabilization and erosion prevention.
